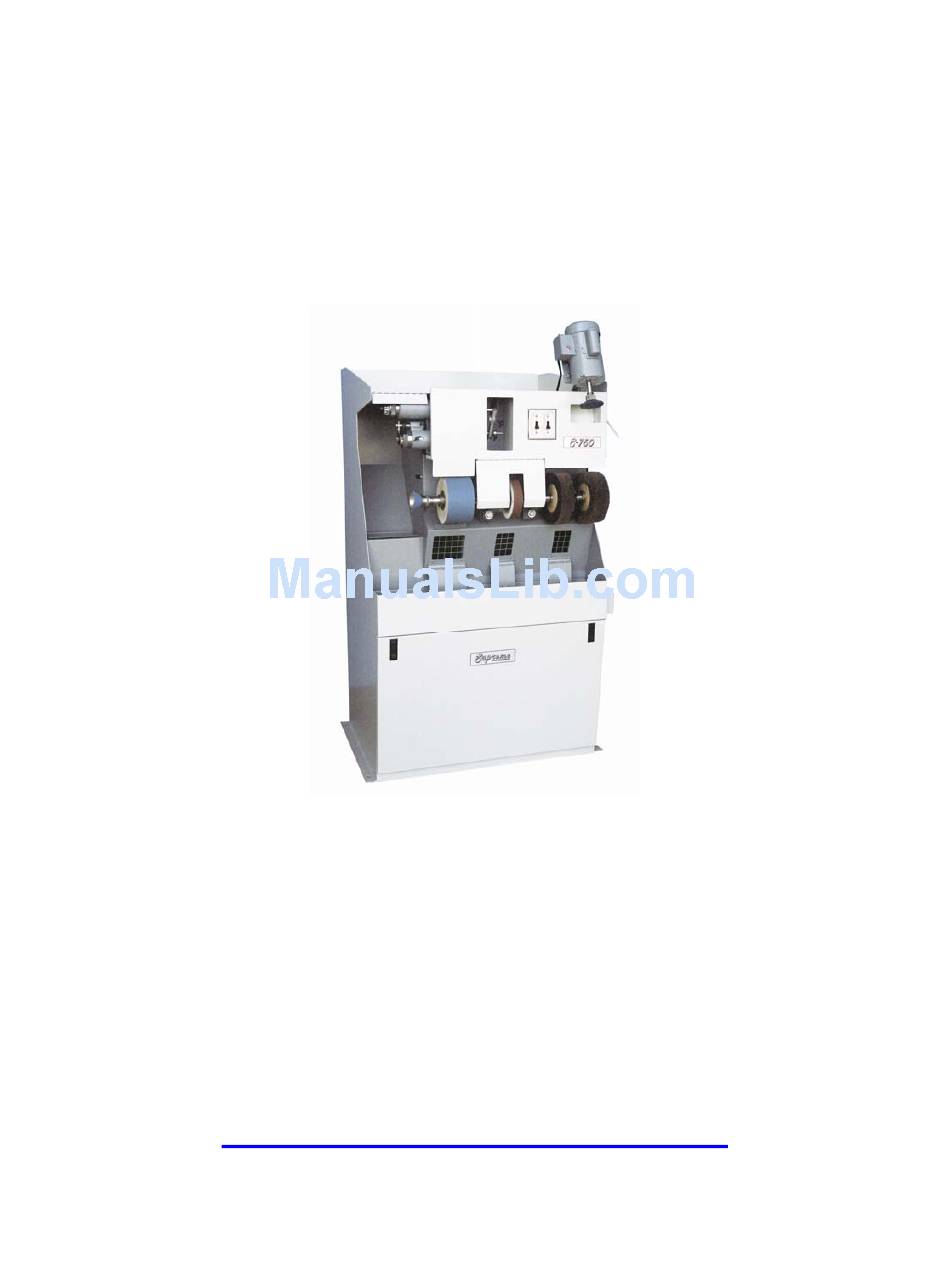

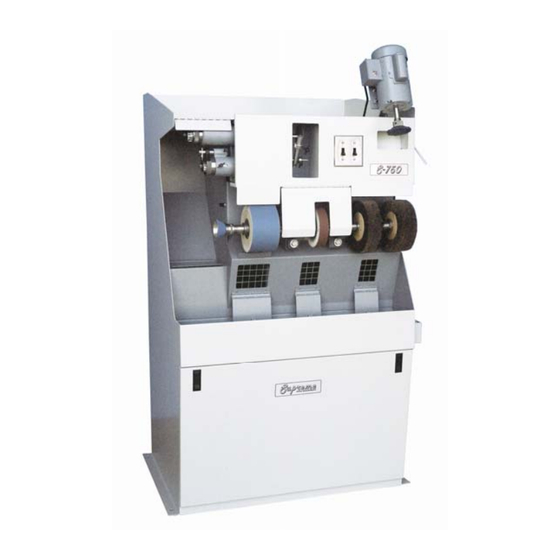

- Page 1 SUPREME S-750 FINISHER Operator Manual SHOE SYSTEMS PLUS, INC. 249 W. MAIN ST GOSHEN, NY 10924 800-354-6278 WWW.SHOESYSTEMSPLUS.COM...
-
Page 2: Table Of Contents
INDEX INTRODUCTION OPERATING THE SUPREME FINISHER INSTALLATION ELECTRICAL CONTROL BOX START-UP SANDING BELT REPLACEMENT SHARPENING CUTTERS ACCESSORIES MAINTENANCE V-BELT ADJUSTMENT AND REMOVAL MOTOR REPLACEMENT ACCESSORIES LIST... -
Page 3: Introduction
INTRODUCTION The Supreme Finisher is a compact, durable machine designed for fast, complete finishing work. It will deliver efficient, dependable service when used correctly and with care. As with any piece of specialized equipment, for best performance the manufacturer’s instructions must be followed. BEFORE USING THE SUPREME FINISHER, BE AWARE OF THE FOLLOWING: Approved EYE PROTECTION should always be worn by the operator and others in the work area. -
Page 4: Installation
INSTALLATION The Supreme Finisher should be located on a flat, firm surface, in an area free of obstructions that could interfere with the safe operation of the equipment. The Finisher should be positioned and leveled on a rubber mat to obtain quiet operation with a minimum of vibration. -
Page 5: Start-Up
START-UP WARNING: Eye protection should always be worn by the operator and others in the work area when setting up the machine. Eye protection is required for protection from flying debris and dust, which could cause eye injury. Before shipment, your Supreme Finisher was checked at the factory for proper adjustment and operation. - Page 6 BEFORE STARTING THE SANDING BELT MOTOR, CHECK THAT THE SANDING BELT IS TRACKING PROPERLY, AS FOLLOWS: “Jog” the sanding belt motor by quickly hitting the “start” then “stop” button such that the belt turn slowly, then stop. Continue jogging the motor and check the belt to see that it stays roughly centered on its forward pulley.
-
Page 7: Sanding Belt Replacement
SANDING BELT REPLACEMENT WARNING: Eye protection should always be worn by the operator and others in the work area when changing sanding belts. Eye protection is required for protection from flying debris and dust, which could cause eye injury. (Sanding belts can be obtained in various grits to suit your needs and are easily changed.) WARNING: Some sanding belts are constructed to rotate in one direction only. -
Page 8: Sharpening Cutters
SHARPENING CUTTERS WARNING: Eye protection should always be worn by the operator and others in the work area when sharpening cutters. Eye protection is required for protection from flying debris and dust, which could cause eye injury. Sharpen dull cutters as soon as dullness is noted to avoid poor work and less production. - Page 9 Manually rotate the cutter to the next tooth. Take care to grind each tooth of the cutter the same amount. Complete one revolution before adjusting for more cut. Occasionally, the flat grinding surface on the grinding wheel will become glazed over with a dark film that greatly reduces the grinding efficiency.
-
Page 10: Accessories
ACCESSORIES WARNING: Eye protection should always be worn by the operator and others in the work area when using the accessories supplied with the Supreme Finisher. Eye protection is required for protection from flying debris and dust, which could cause eye injury. 1 3/8”... - Page 11 A welt brush, stitch picker and edge iron are optional accessories and can only be used on the right end of the brush shaft. Each accessory locks on the brush shaft by rotating it in a clockwise direction. WARNING: Failure to properly mount the brushes on the adaptor will result in the brushes flying apart and possible injury to the operator and others in the work area.
-
Page 12: Maintenance
MAINTENANCE A properly maintained machine will give you years of satisfactory service, whereas an abused machine will not. We strongly recommend that you observe the following procedures for your own benefit and safety. WARNING: Eye protection should always be worn by the operator and others in the work area when servicing the machine Eye protection is required for protection from flying debris and dust, which could cause eye injury. - Page 13 Damaged dust bag or dust drawer seals will allow the escape of combustible materials causing a fire hazard around the machine. Check damaged parts. Before further use of a tool, guard or other part that is damaged, check carefully to determine that it will operate properly and perform its intended function.
- Page 14 LUBRICATION Your Supreme Finisher is equipped with sealed bearings throughout, which should be replaced if they ever wear out. Other parts should not require any lubrication, only cleaning the parts is required. Lubrication will only attract dust and would be more harmful than helpful.
-
Page 15: V-Belt Adjustment And Removal
V-BELT ADJUSTMENT AND REMOVAL All V-Belts on the Supreme Finisher should be checked monthly for proper tension and general condition. Loose V-Belts will decrease the power available to the various tools and lower the efficiency of your Finisher. If you discover a worn or frayed belt, replace it now so it won’t break at an inconvenient time. -
Page 16: Motor Replacement
MOTOR REPLACEMENT WARNING: Motor replacement requires working with electrical wiring and can be hazardous. If you are not familiar with electrical procedures, please call a qualified electrician. DUST EXTRACTOR MOTOR The dust extractor motor can be easily removed from the front of the machine. To remove the motor, these directions should be followed. - Page 17 OTHER MOTORS To remove the motor, these procedures should be followed: Disconnect the electrical power supply. From the rear of the machine, remove the four (4) screws, nuts, and washers holding the motor. Remove V-belt. Disconnect the electrical wiring by removing the electrical plate on the end of the motor.
-
Page 18: Accessories List
ACCESSORIES FOR SUPREME S-750 7" PNEUMATIC CONTOUR SANDER (A-24) 8" X 2" YARN BRUSH (A-2) 8" HORSE HAIR WITH LEATHER BURNISHER (A-3) 8" X 2" HORSE HAIR BRUSH BLACK OR BROWN (A-4) 5" WIRE BRUSH (A-5) 5" X 2" GRINDING STONE (A-6) FLAT WHEEL 3"...
