MS-4000: ShootingStar Reader
The MS-4000 ShootingStar Reader
The MS-4000 ShootingStar Reader is intended for installation on a solid metal surface, in proximity
applications where a vandal-proof reader is required. The reader is housed in a weatherproof,
bulletproof stainless steel package.
1.0
Specifications
1.1
Dimensions
•
5.25 inches High x 2.00 inches Wide x 0.75 inches Deep
•
13.35 cm High x 5.08 cm Wide x 1.91 cm Deep

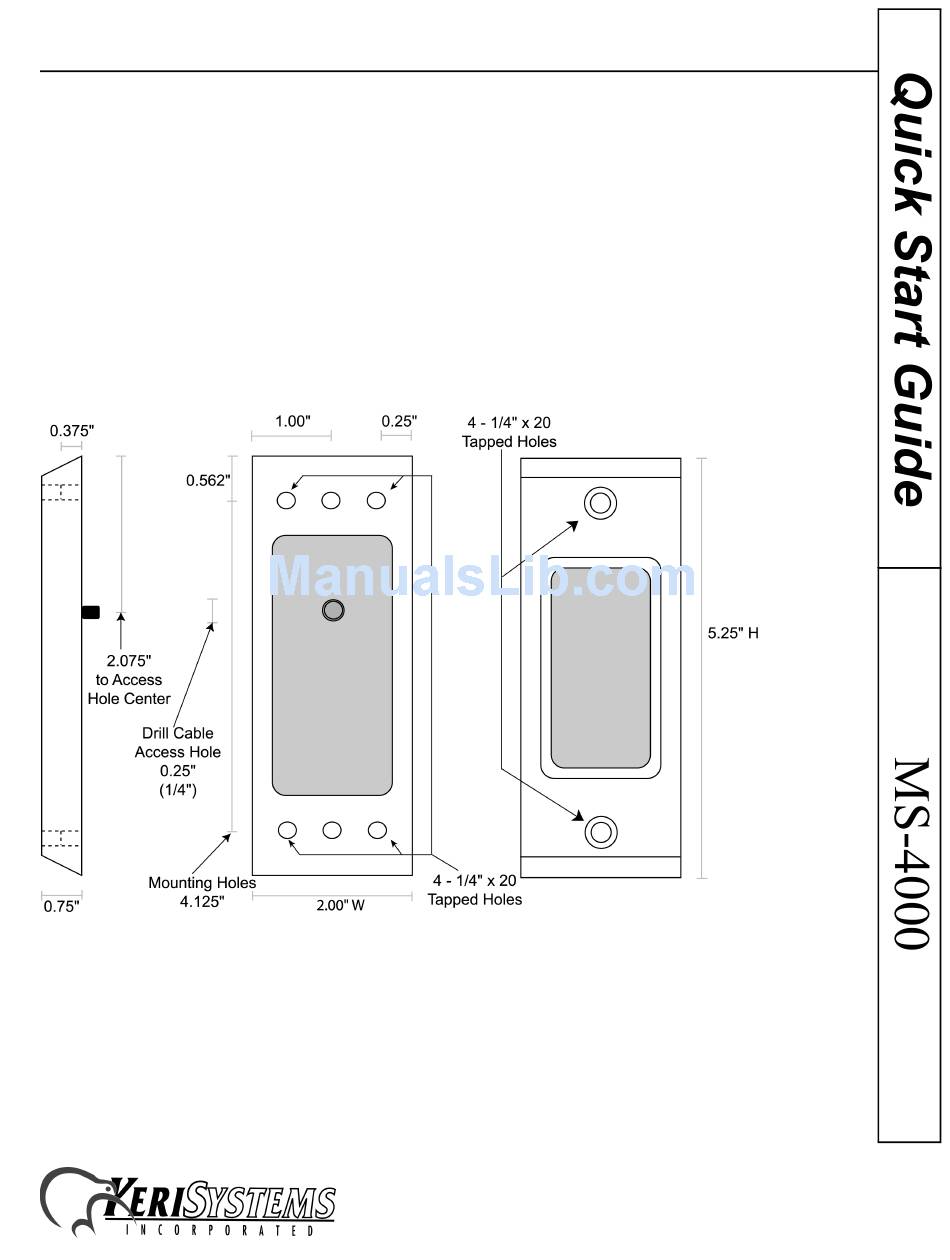

Figure 1: MS-4000 Dimensions
1530 Old Oakland Road, Suite 100
San Jose, CA 95112 USA
(800) 260-5265 (408) 451-2520 FAX (408) 441-0309
Web: http://www.kerisys.com E-mail: sales@kerisys.com
01815-004 Rev. F
Page 1 of 8
