Summary of Contents for Contest PILOT60

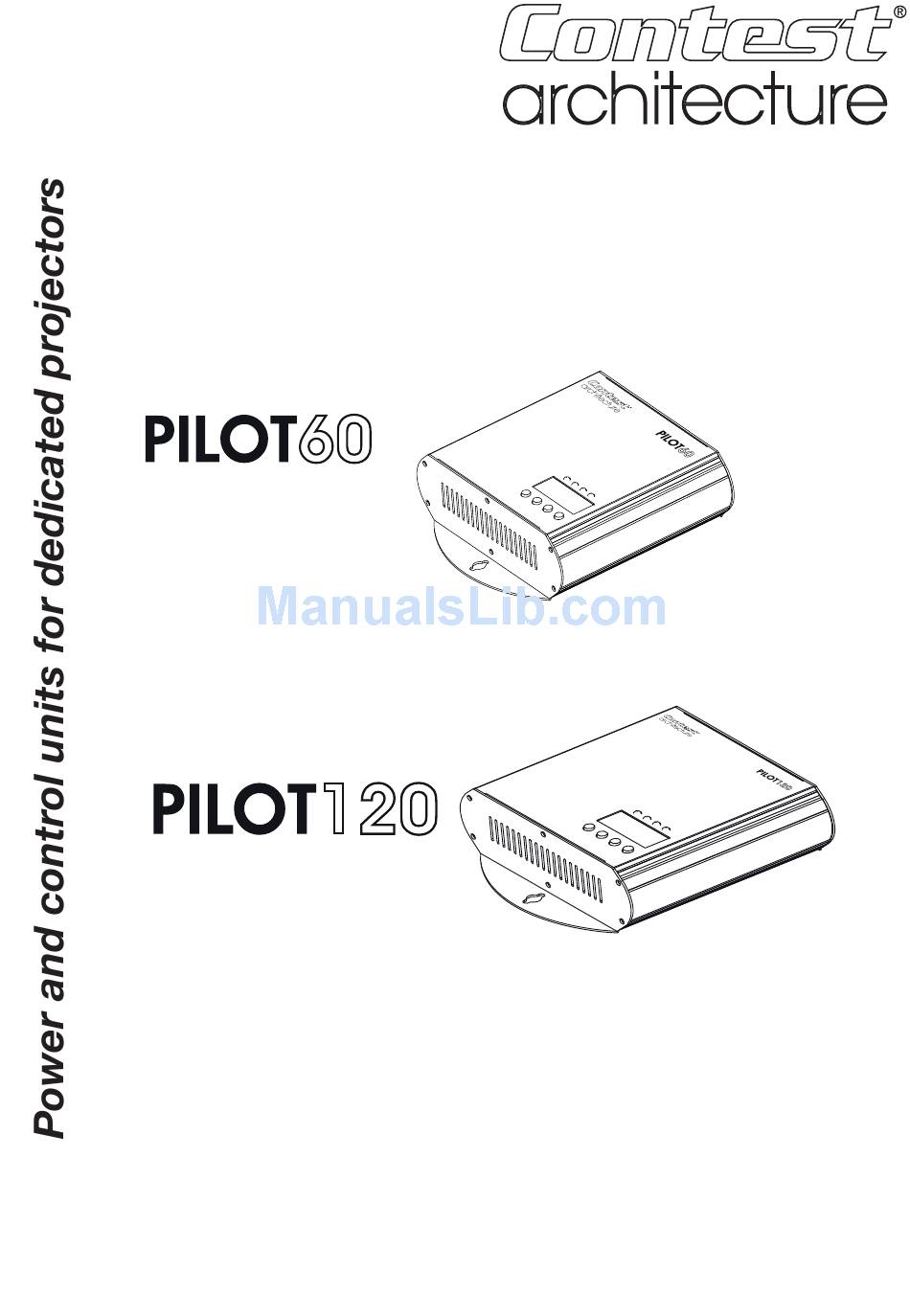

- Page 1 USER GUIDE 9780 - 9781 - July 2010 Version 1.0...
- Page 2 English PILOT60 and 120 - Power and control units for dedicated projectors Page 2...
-
Page 3: Safety Information
PILOT60 and 120 - Power and control units for dedicated projectors English 1 - Safety information Important safety information This unit is intended for indoor use only. Do not use it in a wet, This product contains non-isolated electrical components. Do not or extremely cold/hot locations. - Page 4 English PILOT60 and 120 - Power and control units for dedicated projectors Instructions and recommendations 1 - Please read carefully : 12 - Cleaning precautions : We strongly recommend to read carefully and understand Unplug the product before attempting any cleaning the safety instructions before attempting to operate this unit.
-
Page 5: Technical Specifications
PILOT60 and 120 - Power and control units for dedicated projectors English 2 - Introduction Thanks for choosing the PILOT series. You are now in possession of a high-quality, powerful product able to create incredile animations for your concerts, parties, clubs etc. -
Page 6: Installation
60 W maximum per zone. 5 - Installation The PILOT60 and PILOT120 must be placed on a flat, non-flammable surface. You can secure their fixations with 2 screws. Please make sure the cooling vents are not obstructed. Caution: Please make sure the device is switched off when you are connecting LEDs projectors. - Page 7 PILOT60 and 120 - Power and control units for dedicated projectors English RJ45 line terminators Projectors Splitters LINK-SPLIT LINK-SPLIT Pilot120 Power unit DC 12V Controller 0,5A 230V-50 Hz Max number of projectors for each PILOT series unit PILOT60 PILOT120 CEIL1TC...
-
Page 8: Configuring Your Device
PILOT60 and 120 - Power and control units for dedicated projectors 6 - Configuring your device To access the PILOT60 or PILOT120 settings, press the MENU button. Use the UP and DOWN buttons to browse through functions and confirm with ENTER. - Page 9 PILOT60 and 120 - Power and control units for dedicated projectors English ProG : Program Mode This menu allows you to create programs you will then be able to play from the Show Mode menu. Select a program to modify from Sh1 to Sh19. Press ENTER to display the customisable values.
- Page 10 English PILOT60 and 120 - Power and control units for dedicated projectors 7 - Using a DMX controller You can control your PILOT via a standard DMX controller. This controller must have at least the same num- ber of channels as your DMX configuration, in order to be able to access all the functions of the PILOT.
- Page 11 PILOT60 and 120 - Power and control units for dedicated projectors English 10 - Pinout of the RJ45 socket for the LED output Front view of the RJ45 socket 8-pin RJ45 plug Pins side view Pins Thread colour RGBW LEDs match...
- Page 12 Because CONTEST® takes the utmost care in its products to make sure you only get the best possible quality, our products are subjects to modifications without prior notice. That is why technical specifications and the products physical configuration might differ from the illustrations.
