Summary of Contents for Traction Hobby THT6
- Page 1 Digital 6-Channel Proportional RC System THT6 Instruction Manual CE FCC ROHS...
-
Page 2: Table Of Contents
Warning……………………………………………………………………………………………..………..….2 2. Pistol Grip Control System………………………………………………………..…………………..……………..………..…..3 2.1 Transmitter……………………………………………………………………………………………..……………..………….……3 2.2 Receiver……………………………………………………………………………………………………………..………………..……4 2.2.1 Receiver Installation and Binding………………………………………………………………………………………5 3. THT6 Functions…………………………………….………………………….…………………………….………….………..….…...5 3.1 Display When Power Switch Turned On…………………………………………………………………….……….……...5 3.2 Language Select "LANGUAGE" ………………..………………………………………….………….……………..…..6 3.3 Model Select "MODEL"………………………………………………..……………….…..………..……….…....6 3.4 End Point Adjuster "EPA"………………………………….…..…..……………………….…..……..……….………..…7 3.5 Steering EXP "STEXP"…………………………………….………..……………………….…..……..……..…….………..8 3.6 Steering Speed "STSPD"…………………………………….….……………………….…..……………….…..…..….. -
Page 3: Warning
www.tractionhobby.com 1.Important Safety Notice： The following two symbols will appear in this manual（please pay attention to the paragraph with this two symbols labeled）： Prohibition Testing and confirmation Do not use in bad weather such as rainy or thundering to assure the safety of you and others. Forbid to use this product in the crowd and the place against national law! You need to turn the throttle channel(CH3) and inch switch to the lowest before you use. -
Page 4: Pistol Grip Control System

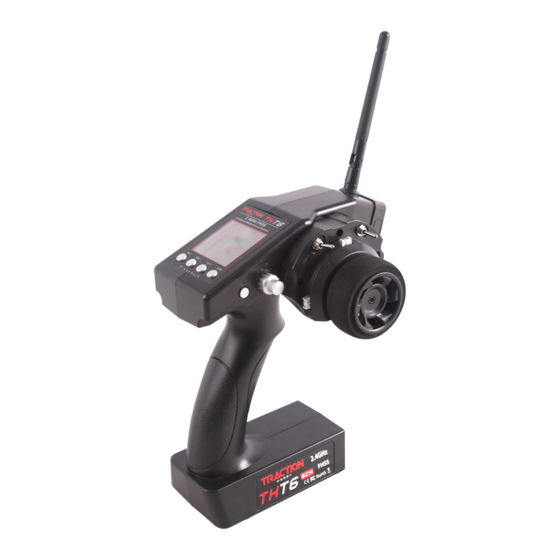

2.Pistol Grip Control System THT6, transmitter with chip STM32F103RB, receiver THR6 with 32 bits industrial chip, 12ms only from transmitter to the receiver, thus provide control synchronous and performance perfect. The same FHSS spread spectrum and 67 channels pseudo random frequency sequence hopping of AT9S makes THT6 have superior anti-interference ability both at the same frequency band and different frequency bands. -
Page 5: Receiver
RF power: <20dbm Low Voltage alert: Yes(lower than 4.6V), can be set when using 2-4S Li-Po battery Receiver: THR6 2.2 Receiver THT6, sells with THR6, 2.4GHz 6 channels receiver, HV servo supported. Specification 1) Size: 35*20*13mm 2) Channel: 6 3) Model: cars, boats... -
Page 6: Receiver Installation And Binding
After all of the above steps finished, turn off the transmitter and then power it on, now the program functions to assure it under control of transmitter with a right connection. 3. THT6 Functions 3.1 Display When Power Switch Turned On... -
Page 7: Language Select "Language
(4) Press “Enter” button, the desired language is selected, and return to the initial screen automatically. 3.3 Model Select "MODEL" THT6 can store model memories for ten models. Use this function to call a new model. (1) Access the function menu (By pressing “Exit” and “Enter” buttons simultaneously and holding them down for one second), press “Enter”... -
Page 8: End Point Adjuster "Epa
www.tractionhobby.com 3.4 End Point Adjuster "EPA" Use EPA when performing left and right steering angle adjustments, throttle high side/brake side operation amount adjustment, and channel 3 servo up side/down side operation amount adjustment during linkage. Correct the maximum steering angle and left and right steering angles when there is a difference in the turning radius due to the characteristics, etc. -
Page 9: Steering Exp "Stexp
www.tractionhobby.com 3.5 Steering EXP "STEXP" This function is used to change the sensitivity of the steering servo around the neutral and both ends position. It has no effect on the maximum servo travel. Adjust the sensitivity of direction wheel both in neutral position and ends. Setup Item RATE: Steering EXP rate Adjustment range... -
Page 10: Throttle Exp "Thexp
www.tractionhobby.com Steering servo delay (1) Access the function menu (By pressing “Exit” and “Enter” buttons simultaneously and holding them down for one second), press “Inc(+)” button four times to chose STSPD function. (2) Press“Enter” button to get into STSPD function interface, press “Dec(-)” or“Inc(+)” button to select setup item, then press “Enter”... - Page 11 www.tractionhobby.com Adjustment method for VTR curve Adjustment range TG.P: 20-80 RATE: -100~0~+100 1.Enter the function menu and use “Dec(-)” or “ Inc(+)” button to access THEXP function. Select“FWD-VTR” function. 2.Press “Dec(-)” or “Inc(+)” button to select RATE for forward side adjustment that you want, when the “MODE” value is “OFF”...
-
Page 12: Throttle Speed "Thspd
www.tractionhobby.com (Note: In the interface of adjusting the value, return to the initial value "0" by pressing “Dec(-)” and “Inc(+)” buttons simultaneously for about 1 second.) (2) Press “Enter” button, the adjusted BRK value stops blinking, now the BRK value has been set. (3) When ending setting, return to the initial screen by pressing “Exit”... -
Page 13: Function "A.b.s
www.tractionhobby.com Adjustment method for SPEED2 Setup items MODE: Speed type selection LOW: Low side range speed adjustment HIGH: High side range speed adjustment TGP1: Low and medium speed switching point Adjustment range LOW: 0~100 HIGH: 0~100 At 100, there is no delay TGP1: 0~100 (1) Enter the function menu and use “Dec(-)”or “Inc(+) ”... - Page 14 www.tractionhobby.com - The region over which the ABS is effective can be set ac-cording to the steering operation. (Mixing function) Setup items ABP: Brake return amount DLY: Delay amount CYC: Cycle speed TGP: Operation point DTY: Cycle duty ratio STM: Steering mixing -ABP(Amount of brake return): Sets the rate at which the servo returns versus trigger operation for brake release.
- Page 15 www.tractionhobby.com Brake return amount (ABP) 0 ~ 50 ~ 100 Initial value: 50 - Brake return amount (ABP) is influenced by the "EXP" rate on the brake side. (2) Delay amount setup Select the setting item "DLY" by pressing “Dec(-)” or “Inc(+)” button, then press “Enter” key and the initial value of “DLY”...
- Page 16 www.tractionhobby.com Operation point (TGP) 0 ~ 100 Initial value: 30 (5) Cycle duty ratio setup Select setting item "DTY" by pressing “Dec(-)” or “Inc(+)” button, then press “Enter” key and the initial value of “DTY” will blink. Use “Dec(-)” or “Inc(+)”button to adjust the duty ratio. (Note: In the interface of adjusting the value, return to the initial value "0"...
-
Page 17: Throttle Acceleration "Accel
www.tractionhobby.com 3.10 Throttle Acceleration "ACCEL" Function which adjusts the movement characteristic from the throttle neutral position. The servo will jump to the input position at its maximum possible speed. Unlike exponential, which adjusts the whole throttle movement into a curve, throttle acceleration simply "jumps" away from neutral and then leaves the remaining response linear. -
Page 18: Idle-Up "Idlup
www.tractionhobby.com 3.11 Idle-Up "IDLUP" Idle up at engine start Use this function to improve the starting characteristics of the engine by raising the idling speed when starting the engine of a gas powered car. Idle-Up rate (RATE) -50% ~ -1%, 0%, +1% ~ +50% Initial value: 0% "-": Brake side "+": Forward side... -
Page 19: Servo Reverse "Rev
www.tractionhobby.com (1) Enter the function menu and use “Dec(-)”or “Inc(+)” button to access SUBTR function. (2) Press “Enter” button to get into SUBTR function interface. (3) Use “Dec(-)” or “Inc(+)” button to select ST channel, press “Enter”key, and the initial value of ST will blink. -
Page 20: Atl Function "Atl
www.tractionhobby.com RATE Steering D/R rate (RATE) 0%~100% Initial value: 100% Throttle D/R rate (Throttle D/R RATE) 0%~100% Initial value: 100% (1) Enter the function menu and use “Dec(-)” or “Inc(+)” button to access D/R function. (2) Press“Enter” button to get into D/R function interface. (3) Use “Dec(-)”... -
Page 21: Programmable Mixes "Pmix
www.tractionhobby.com 3.16 Programmable Mixes "PMIX" Programmable mixes between arbitrary channels These functions allow you to apply mixing between the steering, throttle, CH3 and CH4,CH5,CH6. Setup items LEFT: Mixing rate (Left side) RGHT: Mixing rate (Right side) MST: Master channel SLV: Slave channel Programmable Mixes "PMIX"... -
Page 22: Channel 3 Position "Aux
www.tractionhobby.com “Inc(+)” buttons simultaneously for about 1 second.) Press “Enter” key, the adjusted value stops blinking, the selected mixing amount has been adjusted. (4) Right, brake or down side mixing amount adjustment Mixing amount -100~0~+100 Select the setting item "RGHT", "BRAK", or "DOWN"(These setup items are different depend on the master channel.ST:"RGHT";... -
Page 23: Model Name "Name
Press “Enter” button, the adjusted value stops blinking, now the value has been set. 3.18 Model Name "NAME" THT6 stores model memories for ten models. Each model memory can be named separately according to user’s requirement. Factory default name: MODEL1 (1) Enter the function menu and use “Dec(-)”... -
Page 24: Fail Safe
www.tractionhobby.com The car will be out of control if the battery runs out, please immediately stop running when the alarm starting to ring. 3.20 Fail Safe This function is set by servo, throttle, CH3. CH4.CH5 and CH6. Option: ST: Steering(CH1) TH: Throttle(CH2) CH3: Channel3(VR) CH4: Channel4(SWA) - Page 25 www.tractionhobby.com (2) Press “Enter” button to get into RESET function interface, the symbol “YES” will blink. Be sure to reset Press “Enter” key, the symbol “YES” will stop blinking, and return to the initial screen. Now the model data is reset to the initial setting that is the default value set at the factory.
- Page 26 www.tractionhobby.com...
