- Page 1 110 SERIES SINGLE-WAN GIGABIT VPN ROUTERS Quick Start Guide AN-110-RT-2L1W AN-110-RT-2L1W-WIFI...
-
Page 2: Federal Communication Commission Interference Statement
110 Series Single-WAN Gigabit VPN Router Quick Start Guide Federal Communication Commission Interference Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. -
Page 3: Industry Canada Statement
110 Series Single-WAN Gigabit VPN Router Quick Start Guide Industry Canada Statement This device complies with Industry Canada’s licence-exempt RSSs. Operation is subject to the following two conditions: (1) This device may not cause interference; and (2) This device must accept any interference, including interference that may cause undesired operation of the device. -
Page 4: Radiation Exposure Statement
110 Series Single-WAN Gigabit VPN Router Quick Start Guide Radiation Exposure Statement: This equipment complies with IC RSS-102 radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 63 cm between the radiator & your body. Déclaration d’exposition aux radiations: Cet équipement est conforme aux limites d'exposition aux rayonnements IC établies pour un environnement non contrôlé. -
Page 5: Fcc Warning
110 Series Single-WAN Gigabit VPN Router Quick Start Guide FCC Warning Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: This device may not cause harmful interference, and This device must accept any interference received, including interference that may cause undesired operation. - Page 6 110 Series Single-WAN Gigabit VPN Router Quick Start Guide CE Statement This equipment complies with EU radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20 cm between the radiator & your body. All operational modes: 2.4GHz: 802.11b, 802.11g, 802.11n (HT20), 802.11n (HT40), 802.11ac (VHT20), 802.11ac (VHT40) 5GHz: 802.11a, 802.11n (HT20), 802.11n (HT40), 802.11ac (VHT20), 802.11ac (VHT40), 802.11ac (VHT80)
-
Page 7: Welcome To Araknis Networks
Quick Start Guide Welcome to Araknis Networks™ Thank you for choosing our new line of Araknis 110 routers. With gigabit connectivity on all ports, single WAN and USB 2.0 capabilities, advanced networking functionality (QoS, VLANs, VPN, port forwarding), these routers are top of the line and meant for some serious networking applications! Features •... - Page 8 110 Series Single-WAN Gigabit VPN Router Quick Start Guide Step 1: Unbox Router Rubber Feet (4) Quick Start Guide 12V 2A DC Power Supply Wall Mount Kit Screw Hole Plug...
- Page 9 110 Series Single-WAN Gigabit VPN Router Quick Start Guide Step 2: Install 110 compact routers feature two mounting options. NOTE: Do not stack other equipment on top of the router to avoid possible interference or damage. Surface Mount Wall Mount (use included rubber feet)
- Page 10 110 Series Single-WAN Gigabit VPN Router Quick Start Guide Step 3: Connect The router uses the enclosed power supply. Step 1: Power off all network devices. Step 2: Connect the modem to the WAN port(s). Web Browser Access Step 3: Connect the LAN cables. Step 4: Connect any USB devices (optional).
-
Page 11: Step 4: Verify Operation
Quick Start Guide Step 4: Verify Operation 2.4 GHz 1 Gbps Link/Act 5.0 GHz AN-110-RT-2L1W-WIFI Power LED – On: system is up. Off: system is down. 1Gbps LED – On: port connected at 1Gbps speed. Off: port is connected at 10/100Mbps speed. - Page 12 • Subnet Mask: 255.255.255.0 Open a web browser and enter http://192.168.1.1 in the address bar. Log in using the default credentials: • Username: araknis • Password: araknis If you can’t get to the login page, check to make sure your computer has been issued an IP address by the router.
-
Page 13: Step 6: Quick Setup
110 Series Single-WAN Gigabit VPN Router Quick Start Guide Step 6: Quick Setup Click the Quick Setup button in the left bar. Use Quick Setup to configure: • System name • System IP address • WAN 1 and WAN 2 settings •... - Page 14 110 Series Single-WAN Gigabit VPN Router Quick Start Guide Other Access Methods: OvrC OvrC gives you remote device management, real-time notifications, and intuitive customer management, right from your computer or mobile device. Setup is plug-and-play, with no port forwarding or DDNS address required. To add this device to your OvrC account: Connect the WAP to the Internet Log Into OvrC (www.ovrc.com) Add the Device (MAC address and Service Tag numbers needed for authentication)
- Page 15 110 Series Single-WAN Gigabit VPN Router Quick Start Guide Pro Tip: Resetting the Router call out factory reset and reboot behavior (use 110 wirelss image) Reboot – Press and hold the RESET button on the back of the router for 5 seconds, then release. The router then reboots and the front status lights flash.
-
Page 16: Year Limited Warranty
2-Year Limited Warranty Araknis Networks® products have a 2-Year Limited Warranty. This warranty includes parts and labor repairs on all components found to be defective in material or workmanship under normal conditions of use. This warranty shall not apply to products that have been abused, modified, or disassembled.
Need help?
Do you have a question about the AN-110-RT-2L1W and is the answer not in the manual?
Questions and answers

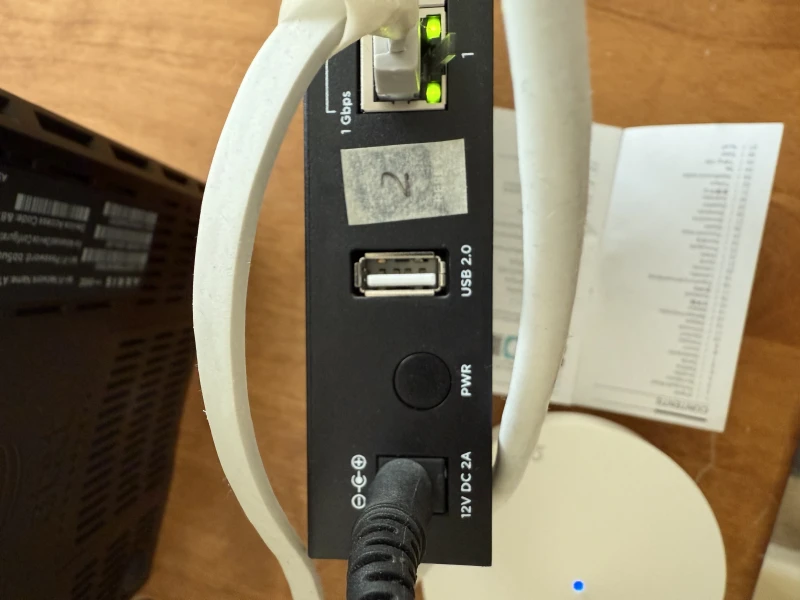

My AN-110-RT-2L1W-WIFI router has what I think is a reset button that is different from what the manuals show. I'm trying to reset, but it doesn't seem to work. It is labeled as Power. I'll send a picture.
The Araknis AN-110-RT-2L1W router does not have a Power button with a listed function in the provided context. However, to properly reset the router, press and hold the reset button for 10–15 seconds until the status LEDs flash once. This action resets the router to factory default settings and reboots it.
