Summary of Contents for UBKEY MirrorKem

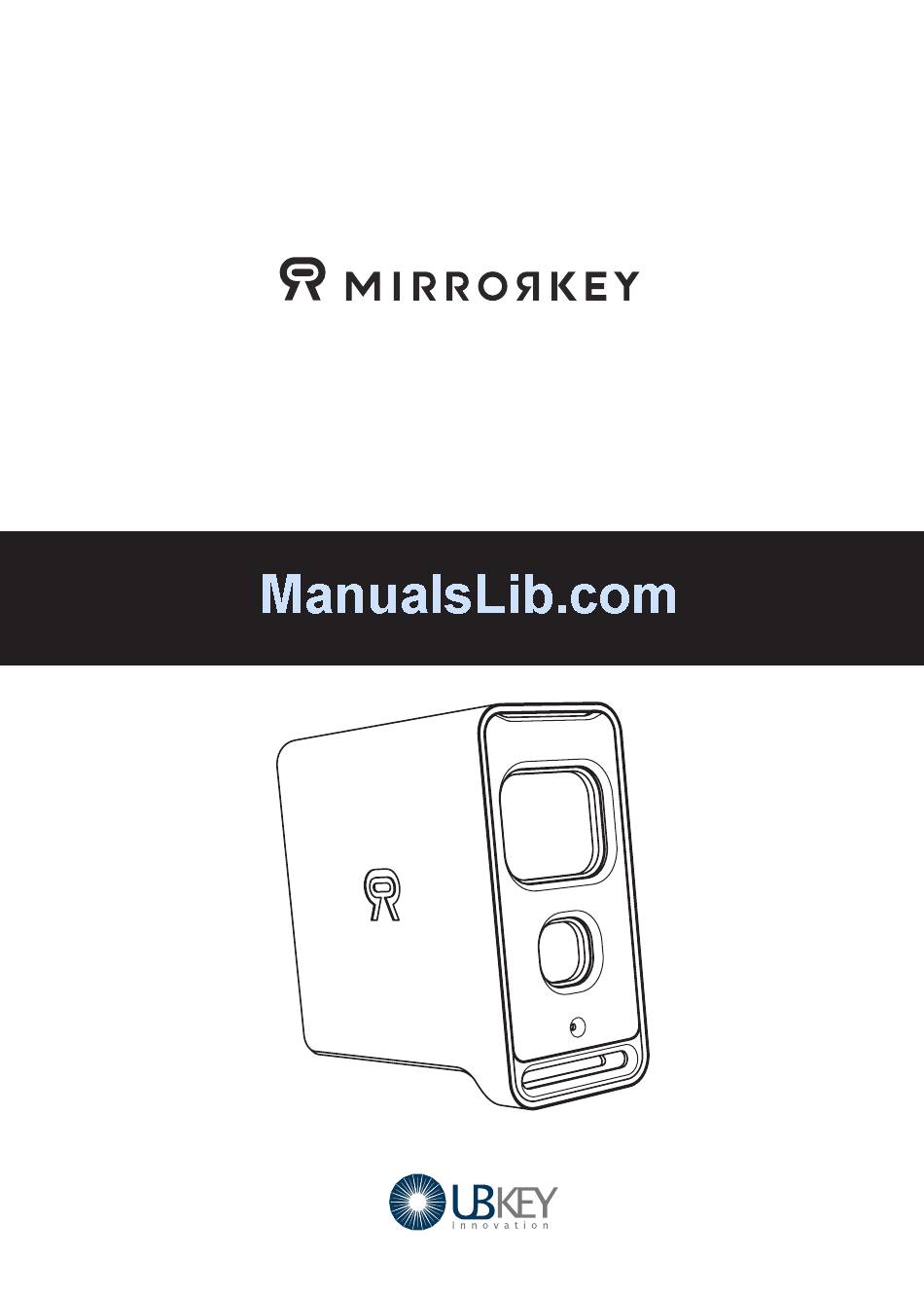

- Page 1 MirrorKem Program user manual...
- Page 2 Notice Thank you for your purchasing our product. Ubkey Innovation Inc. is providing MirrorKem installation program in a bundle CD, but steadily updating the program for new technology development and customer's convenience improvement. Up-to-date program is always uploaded in our Homepage (www.ubkey.com) so that...
-
Page 3: Table Of Contents
Index 1. Program installation - - - - - - - - - - - 6 2. Program removal - - - - - - - - - - - - 8 3. User manual - - - - - - - - - - - - - - 10 4. - Page 4 Components 1. Box 2. Micro USB cable 3. Iris recognition camera (MirrorKem) 4. User manual 5. Program CD...
-
Page 5: Program Installation
Program installation Up-to-date MirrorKem software download is available in UBKEY homepage. In case of program update, please install it after completely deleting the pro- gram and re-starting. 1. Execute `MirrorKem_Setup.exe` enough to fit OS. 2. Click `Next`. 3. Click `Install`. - Page 6 4. Installation proceeds. 5. Select `Reboot now` and click `Finish`, then the computer will re-start.
-
Page 7: Program Removal
(You can unlock the encrypted files irrespective of PC log-in). 1. In the program and function of the control panel, select `MirrorKem` and then click removal/change. 2. Execute the iris authentication. - In case the camera is detached, enter the... - Page 8 3. When you click `Remove` , delete will proceed. 4. Re-start the computer.
-
Page 9: User Manual
User manual 1. When the program is successfully installed, `UBKey Innovation` icon will be created the bottom right at the time of Window re-booting. As to the program execution method, place the mouse cursor on the icon and click right side button to proceed iris registration. - Page 10 4. Iris registration ① Right-clicking on the tray icon will bring up the window as shown in <Figure 1>. ② Selection of `Iris Registration` will bring up the window as shown in <Figure 2>. ③ When you enter ID to be used in `ⓐ`, the camera image will be displayed in `ⓑ`. ④...
- Page 11 5. User management It is the function of deleting the iris information not in use or needless. ① Right-clicking on the tray icon will bring up the window as shown in <Figure 1>. ② Please recognize the registered iris in <Figure 2>. ③...
- Page 12 7. Screen saver screen setting ① Right-clicking on the tray icon will bring up the window as shown in <Figure 1>. ② Selection of `ScreenSaver Management` will bring up the window as shown in <Figure 2>. ③ Recognize the registered iris in <Figure 2>. Then, the window as shown in <Figure 3> will be opened after the iris recognition.
- Page 13 Password basic value is the figure `0000` , which can be set up to 4~20 digits. For the safe use, we recommend you to use it with special characters included. In case of PC log-in with the password / After log-in, you can use only the screen saver function of MirrorKem program. <Figure 4> <Figure 2>...
- Page 14 9.1. Check Web ID/Password site registration ① Selection of `Add Site` in <Figure 1> screen will bring up the entry window as shown in <Figure 2>. ② Enter URL of the site to be used for `ⓐ` . ③ `ⓑ` Site Title' is the name seen on the list. Enter the name that can be identified by the user.
- Page 15 9.3. Use of Check Web ID/Password home Check Web ID/Password home will show the joined ID and Password of the registered site. ① Clicking `ⓐ` in <Figure 1> screen will bring up the list window as shown in <Figure 2>. ②...
- Page 16 ② When you succeed in the iris authentication, the progress ratio as shown in <Figure 3> will be displayed, and then the work-finished original file/folder will be deleted. Then, as shown in <Figure 4>, `file or folder name.the user ID.ubkey` file will be created.
- Page 17 [1] Method 1 ① As shown in <Figure 4>, when the extension double-clicks the subject file/folder to be unlocked out of `*.ubkey` files/folders, <Figure 2> iris authentication screen will appear. ② When iris is successfully authenticated, the progress as shown in <Figure 3> will be displayed, and then it will be restored as `file/folder` at the position where it was in the file/folder upon completion of the work.
- Page 18 Notice Security file can be used by the user who completes Window login with the iris. (Not allowed to use in the event of password log-in) In case of multiple users registration environment, only the list of the users who completed Window login using the iris can be seen.
-
Page 19: Note During Iris Photographing
Note during iris photographing 1. Iris photographing by UBKEY Iris Camera 190~210 mm(7.4~8.2 inches) 1. With the eye 5~10Cm away from the focal length (20cm), have the eye locate in the middle of mirror. 2. With the eye wide open in a steady condition, step forward to the camera slowly. - Page 20 Good image The situation of good image being captured If the camera is used in both bright and dark areas, it is recommended to register the iris enough to fit each situation. Bad image The situation of bad image being captured (When the user is swung during photographing, approaching the camera in fast motion, or descending the eyelid)
-
Page 21: Directions For The Use Of Product
Directions for the use of product Explanation on the designated marks It is used when indicating the note for using the product safely and rightly. It is also used to introduce the recommendable information for the user to use the product. ▶... - Page 22 Product standard Weight Focal length Interface I mage Sensor Iris Image quality Items required for the UBKEY Iris Camera system 권장 사양 최소 사양 권장 사양 최소 사양 / 7 / 8 / 8.1 / 10 최소 사양 권장 사양...
- Page 23 Customer support Mon~Fri / Am 10:00 - Pm 06:00 www.ubkey.com / sales@ubkey.com / +82-70-7729-1188 Manufactured by Rm.#1016, 184 Gasandigital 2-ro Geumcheon-gu Seoul (Gasan-dong, UBKEY Innovation Inc. Byeoksan Digital Valley 2-cha) UBK. 16-01-07...
