Summary of Contents for Digichain TPUH406TV-US

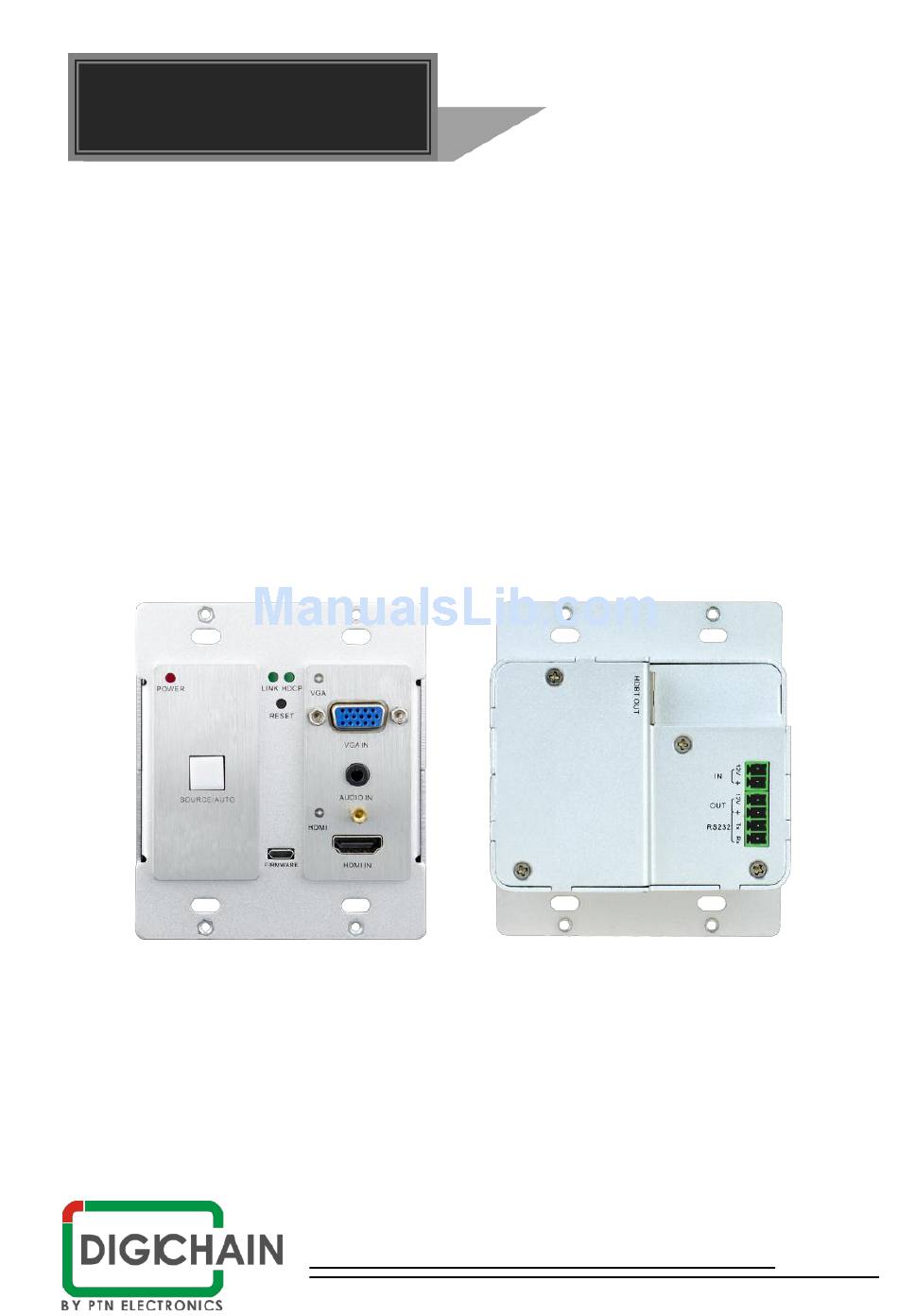

- Page 1 User Manual TPUH406TV-US 4K Wallplate HDBaseT Transmitter All Rights Reserved Version: TPUH406TV-US_2017V1.2 www.digichain.nl...
-
Page 2: Fcc Statement
Digichain TPUH406TV-US 4K wallplate extender/scaler Preface Read this user manual carefully before using this product. Pictures shown in this manual is for reference only, different model and specifications are subject to real product. This manual is only for operation instruction only, not for any maintenance usage. The functions described in this version are updated till July 6, 2017. -
Page 3: Safety Precautions
Digichain TPUH406TV-US 4K wallplate extender/scaler SAFETY PRECAUTIONS To insure the best from the product, please read all instructions carefully before using the device. Save this manual for further reference. Unpack the equipment carefully and save the original box and packing material for possible future shipment ... -
Page 4: Table Of Contents
Digichain TPUH406TV-US 4K wallplate extender/scaler Contents 1. Introduction ......................... 1 1.1 Introduction to TPUH406TV-US ................. 1 1.2 Features ......................1 1.3 Package List ...................... 1 2. Panel Description ......................2 2.1 Front Panel ......................2 2.2 Rear Panel ......................3 3. -
Page 5: Introduction
Digichain TPUH406TV-US 4K wallplate extender/scaler 1. Introduction 1.1 Introduction to TPUH406TV-US Connect, switch and extend HDMI and 1 VGA+ audio input to displays or projectors in conference rooms, classrooms and control centers. Inputs are automatically switched (or manually selected) to permit seamless transfer from one source to the next. Extend signal up to 70 meters (230ft) over a single Category cable. -
Page 6: Panel Description
Digichain TPUH406TV-US 4K wallplate extender/scaler 2. Panel Description 2.1 Front Panel POWER LINK RESET VGA IN AUDIO IN SOURCE/AUTO HDMI HDMI IN FIRMWARE Name Description ① POWER LED indicator glows red when power is applied. LED indicator glows green when an HDBaseT link is ②... -
Page 7: Rear Panel
② 12V input, connects with power adapter. ③ 12V output, connects with Control Panel to energize it. Serial port for control TPUH406TV-US and the third-party device ④ RS232 via RS232 commands. Please refer to the 5. RS232 Control for more details. -
Page 8: System Connection
Installation ① If installing in a back-box, it is recommended that the TPUH406TV-US be installed in a 4-5/8” square box at a minimum. The 4-5/8” square box has sufficient space to terminate the cables with jacks behind the unit when fully installed. - Page 9 Digichain TPUH406TV-US 4K wallplate extender/scaler the installation instructions for the 70M HDBaseT Receiver. ③ If using the Control Panel, run another twisted pair cable from the TPUH406TV-US location to the location that the Control Panel will be mounted. ④ All twisted pair cables should be terminated with jacks. This allows the permanent link between the two devices to be tested.
-
Page 10: Button Control
TPUH406TV-US is in AUTO mode. This mode automatically selects the last video source connected to the TPUH406TV-US and outputs it to the display. Press and hold again for approximately 3 seconds, the light will go out, and the device will be in Manual mode which will allow the user to momentarily press the button to toggle between the two sources. -
Page 11: Rs232 Control Software
Uninstallation Delete all the control software files in corresponding file path. Basic Settings: First, connect TPUH406TV-US with all input devices and output devices needed, then to connect it with a computer which is installed with RS232 control software. Double-click the software icon to run this software. - Page 12 Digichain TPUH406TV-US 4K wallplate extender/scaler Here we take the software CommWatch.exe as example. The icon is showed as below: The interface of the control software is showed as below: Parameter Configuration area Monitoring area, indicates if the command sent works.
-
Page 13: Rs232 Commands
Digichain TPUH406TV-US 4K wallplate extender/scaler 5.3 RS232 Commands Communication protocol: RS232 Communication Protocol Baud rate: 9600 Data bit: 8 Stop bit: 1 Parity bit: none 5.3.1 Control Mode Switching Command Function Feedback Example Switch to RS232 mode 1（Default）, RS232 Mode 1: RS232... -
Page 14: Hdcp Compliance
Digichain TPUH406TV-US 4K wallplate extender/scaler Change resolution to1920X1200 50620% Resolution: 1920x1200 WUXGA Change resolution to1600X1200 50621% Resolution: 1600x1200 UXGA 5.3.4 HDCP Compliance Command Function Feedback Example Set the HDCP status of HDMI output HDCP Active 50790% socket to Active Set the HDCP status of HDMI output... - Page 15 Digichain TPUH406TV-US 4K wallplate extender/scaler can be medium, warm, user, or cool.) Color Temperature: xx (xx 50607% Adjust the color temperature can be medium, warm, user, or cool.) Aspect Ratio: xx (xx can be Check the image aspect ratio 50635% 16:9, 4:3, or auto.)
-
Page 16: Edid Configuration
Digichain TPUH406TV-US 4K wallplate extender/scaler Stretch right from right side (increase 50675% Output Width Adjust xx image width) Stretch upwards from bottom side 50676% Output Height Adjust xx (decrease image height) Stretch downwards from bottom side Output Height Adjust xx... -
Page 17: Specification
6. Specification Input & Output Input (1) HDMI; (1) VGA; (1) AUDIO; (1) 12V POWER ; (1) 19-pin Type A female HDMI; (1) HD-15 VGA; (1) 3.5mm Input Connector mini jack; (1) 2-pin Pluggable Terminal Block Output (1) HDBaseT; (1) 12V POWER Output Connector (1) RJ45;... -
Page 18: Panel Drawing
7. Panel Drawing 32.0mm POWER LINK RESET VGA IN AUDIO IN SOURCE/AUTO RS232 HDMI HDMI IN FIRMWARE 89.0 mm... -
Page 19: Troubleshooting & Maintenance
8. Troubleshooting & Maintenance Problems Causes Solutions Color losing or no video signal output in HDMI display. The connecting cables No HDMI signal output in the Check whether the cables may not be connected device while local HDMI input is are connected correctly correctly or it may be in normal working state. -
Page 20: After-Sales Service
9. After-sales Service If there appear some problems when running the TPUH406TV-US, please check and deal with the problems referring to this user manual. Any transport costs are borne by the users during the warranty. ① Product Limited Warranty: Digichain warrants that its products will be free from defects in materials and workmanship for three years, which starts from the first day you buy this product (The purchase invoice shall prevail). - Page 21 Digichain Electronics Tel: +31 (0)85 2019688 Email: info@digichain.nl Website: www.digichain.nl...
