Teswell TS-170 User Manual

7 inch car lcd monitor
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
7 inch Car LCD Monitor

User manual

Before the installation and use, be sure to read the Manual, so you can properly use and
protect your machine. The statement in front of the matters to the attention of the installation
and use, please read first.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TS-170 and is the answer not in the manual?

Questions and answers

Summary of Contents for Teswell TS-170

  • Page 1: User Manual

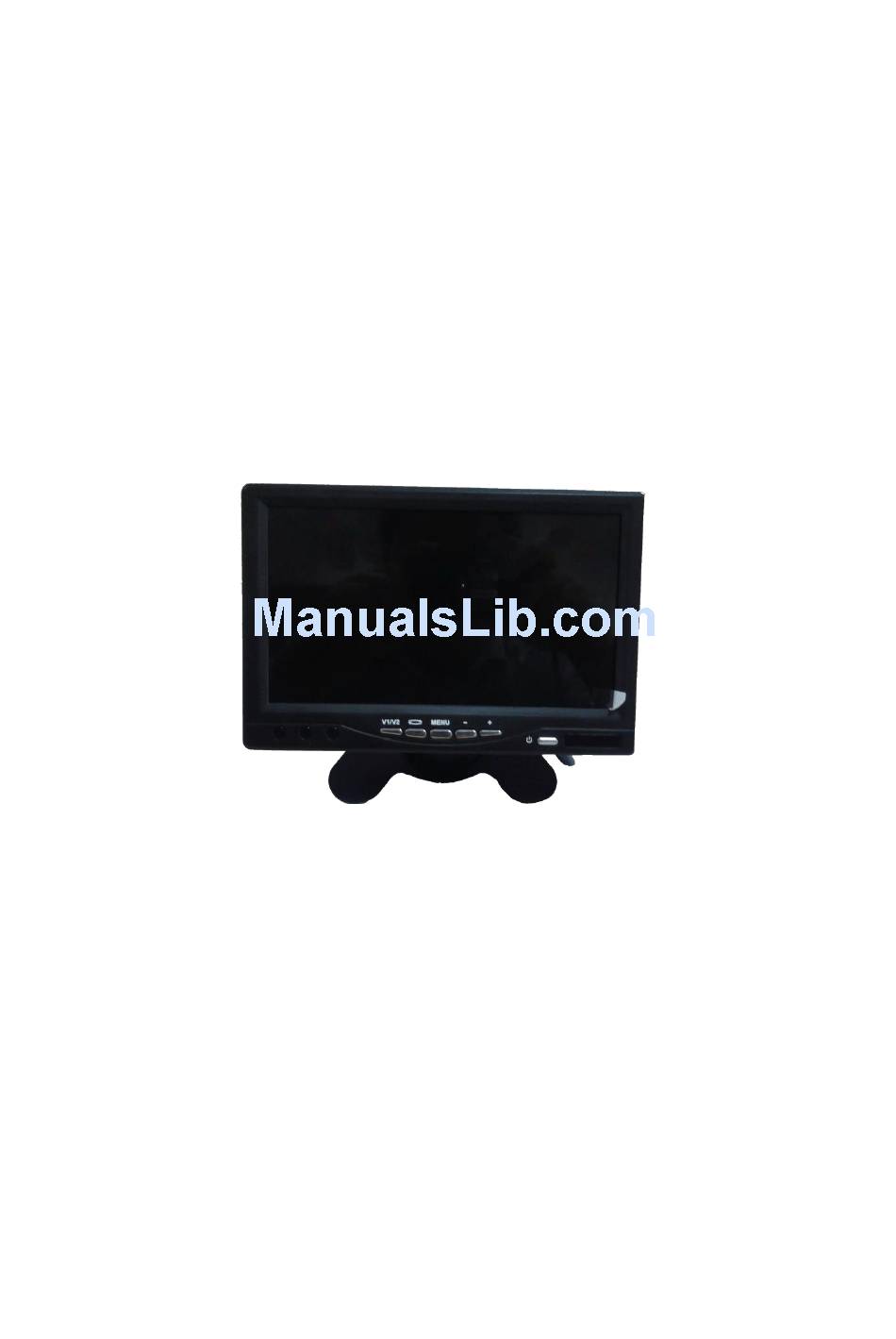

    7 inch Car LCD Monitor User manual Before the installation and use, be sure to read the Manual, so you can properly use and protect your machine. The statement in front of the matters to the attention of the installation and use, please read first.

  • Page 2: Packing List

     Attention  To protect your rights ,before using and installing this product, please carefully read the contents of the manual.  This product is use for car inside, in order to prevent short-circuit or the risk of electric shock, do not be the machine on the rain or humidity environment. ...
  • Page 3  If the tempreture is too high or too low, the screen display may not clearly, its not the quality problem. You should wait for the temperature renew to working, the sreen can work normally. Note: This product specification or parameters change without notice.
  • Page 4 CONTENTS 1, MONITOR & KEYS INSTRUCTIONS ....................4 2, POWER SUPPLY SELECTING ......................4 3, PROLONG LINE CONNECTION INSTRUCTION ................4 4, REMOTE CONTROLLER INSTRUCTION ................... 5 5, PARAMETERS SETTINGS GUIDE ...................... 6 6,TECHNICAL PARAMETERS ........................7...
  • Page 5 Monitor & keys instructions V1/V2 Key (video switch for presenting single channel 1,2) Reverse, mirror image key MENU Key ( menu) - Key (normally lowering volume, while setting menu, it is for parameter changes) Key (normally increasing volume, while setting menu, it is for parameter changes) POWER Key (Turn ON/OFF , usually images will show in 2s after turn-on)
  • Page 6  Red line: DC8-32V power input  Black line: DC8-32V power terra line  Yellow Line: DC12V power output+  Green Line: for backup(It can be used as TX wire if RS232 functions is available) 4, Remote controller instruction : can cut off the power of the monitor, press again will restart monitor.
  • Page 7 5, Parameters settings guide 1) Remote controller operation guide：  Video Select: press “ ”,the cursor will point at “INPUT” , the line which cursor points at will be red color.Press “ ”can setup auto mode or manual mode. When it is auto, the monitor will turn to rear-view interface automatically once it receives reverse signal.

  • Page 8: Technical Parameters

    Can add RS232 function to use with our mobile dvr  Dimension（Bracket is not included） ：178mm(W)X 118mm(H)X 24mm(D) Официальный дистрибьютор в Teswell России, Украине и странах СНГ – ООО «ЕвроМобайл» ЕвроМобайл Украина ООО «ЕвроМобайл» Запорожье, Инженерная пл., дом 1 Санкт-Петербург, пр., Энгельса, д. 71, оф. 313 Тел./факс: +380 (61) 213-41-77...
