Summary of Contents for Alphawave Photonics AWCL-300-6P-Audio

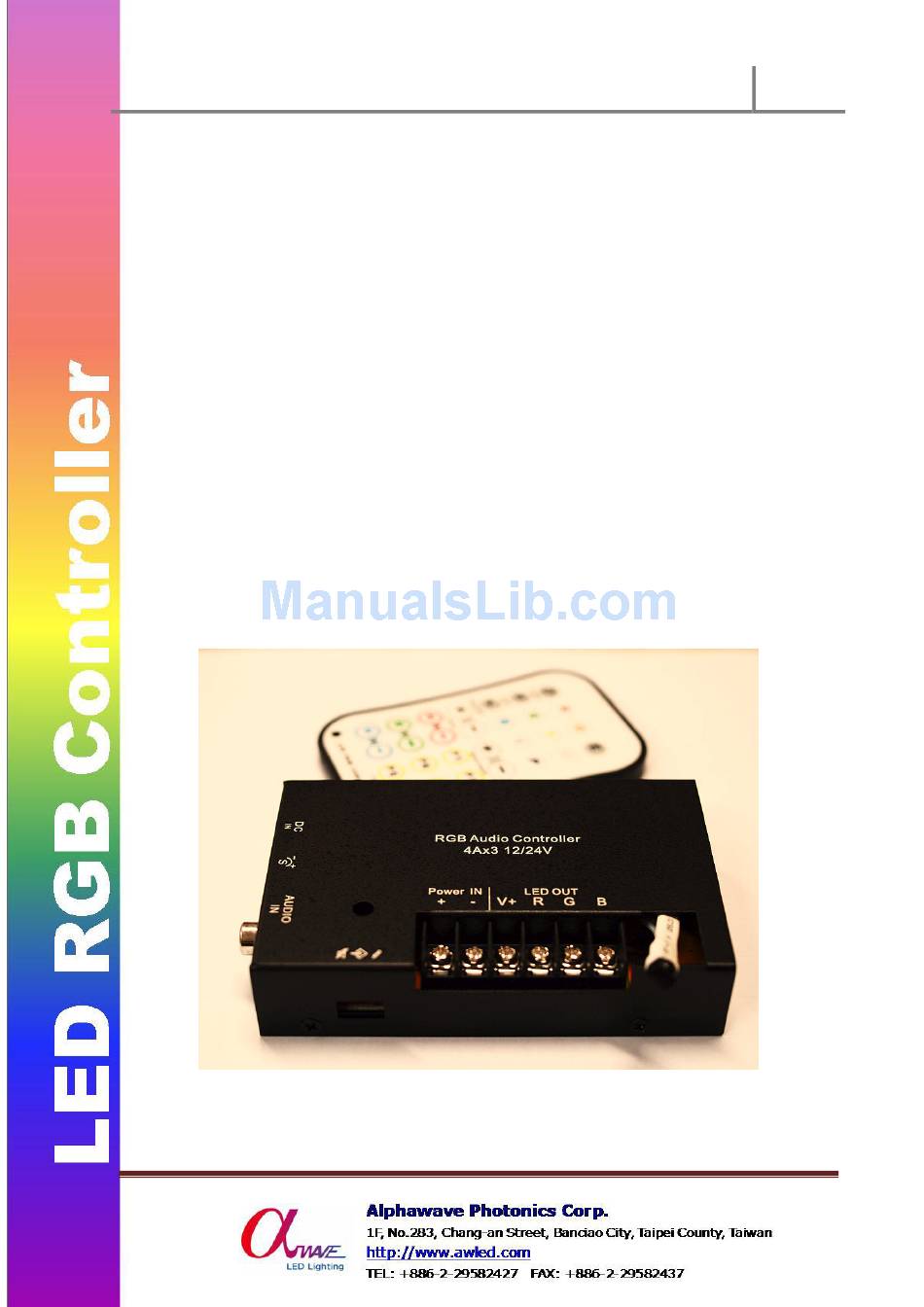

- Page 1 AWCL-300-6P-Audio RGB Controller 2011 AWCL-300-6P-Audio 3 channels audio synchronized RGB 3 channels audio synchronized RGB 3 channels audio synchronized RGB 3 channels audio synchronized RGB Controller Controller Controller Controller User’s Manual Page 1 V.201111C3...
-
Page 2: Specifications
AWCL-300-6P-Audio RGB Controller 2011 1. Introduction : 1.1 Features : Support IR remote control interface. R , G , B bright can be adjusted individually ,and auto-saving for the setting. Built-in six LED dynamic programs , the dynamic of programs can be set for Fade/Jump and dynamic speed. -
Page 3: Input/Output Interface
AWCL-300-6P-Audio RGB Controller 2011 2. User Guide 2.1 Input/Output interface <The Upper side > Power IN : The connector of LED power supply (for DC12~30V depends on the LED module type). : The connector of LED power supply. : The connector of the Blue channel (cathode of Blue LED module). -
Page 4: Remote Control
AWCL-300-6P-Audio RGB Controller 2011 Extension IR Receiver wire : The 50cm long extension wire of IR Receiver could be pull out for using or storage in the case easily. 2.2 Remote Control Power On/Off Power Single color in static mode =100% Red. - Page 5 AWCL-300-6P-Audio RGB Controller 2011 Yellow=100%Red+100%Green; Indigo=100%Green+100%Blue; White=100%Red+100%Green+100%Blue; Purple=100%Red+100%Blue.) Start voice control function ; classical/rock mode switch. ( See the Bottom A-2 ) P1~P6 Dynamic mode speeding or slower , total 25 degrees. ※ Speed+ /- Adjust the Brightness for Dynamic mode and static mode , total 17 degrees.※※...
- Page 6 AWCL-300-6P-Audio RGB Controller 2011 100%Red+100%Green ->extinguish ->100%Green+100%Blue ->extinguish ->100%Red+100%Blue –>extinguish ->repeat Add/decrease red color in static mode。total 17 degrees。 ※※ R+/- Add/decrease green color in static mode。Total 17 degrees。 ※ G+/- ※ Add/decrease blue color in static mode。Total 17 degrees。...
- Page 7 2011 2.3 Application A. Connect AWCL-300-6P-Audio to LED lightings. A-1. Connect AWCL-300-6P-Audio with an Audio player for sound control. Please connect the Audio player with an Audio Amplifier and with an AWCL-300-6P-Audio by AV terminal shunt. Therefore, it will be easy to control the audio amplifier’s volume and won’t influence the Line-in signal of AWCL-300-6P-Audio.
- Page 8 AWCL-300-6P-Audio RGB Controller 2011 Additional function of new version AWCL-300-6P-AUDIO： ： ： ： A-2. The sound control has two modes: 1: Classical mode （when press「 」key，beeps 1 step）: the lighting changes in fade in/fade out style and slower , fit for classical music；...
- Page 9 B. Connect AWCL-300-6P Audio with a signal repeater (AWCL-300-R) for extension connecting. With voltage drops or consumption of AWCL-300-6P-Audio is full ; connect with signal repeater AWCL-300-R by lighting strip or wires for extension connecting. <AWCL-300-6P-Audio connects with the signal repeater by RGB wires.>...
- Page 10 AWCL-300-6P-Audio RGB Controller 2011 < AWCL-300-6P-Audio connect two repeaters by RGB and RJ45 signal. > ※See AWCL-300-R manual for more detail Page 10 V.201111C3...
