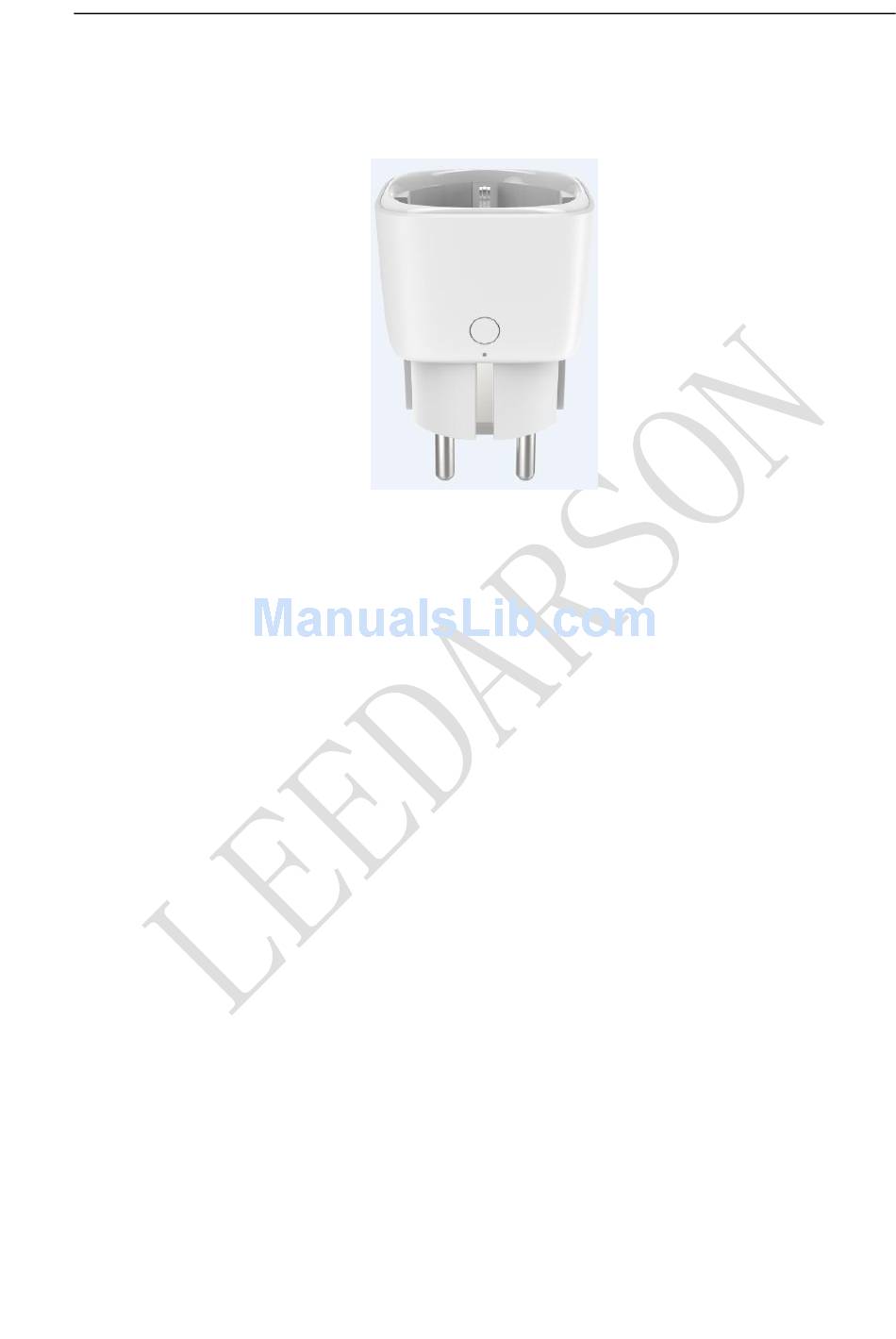

EU Smart Plug （Z-Wave）
User Guide
(6A-PL-VAB-C0)
Smart plug is a Z-Wave Switch plug in module specifically used to enable Z-Wave
command and control (on/off) of any plug-in tool. It can report wattage consumption or
kWh energy usage.
Smart Plug can be included and operated in any Z-Wave network with other Z-Wave
certified devices from other manufacturers and/or other applications. All non-battery
operated nodes within the network will act as repeaters regardless of vendor to increase
reliability of the network.
Smart Plug is also a security Z-Wave device and supports the Over The Air (OTA) feature for
the product's firmware upgrade.
If you want your Smart Plug to be a security device that use secure/encrypted message to
Advertisement
Summary of Contents for Leedarson 6A-PL-VAB-C0
- Page 1 EU Smart Plug （Z-Wave） User Guide (6A-PL-VAB-C0) Smart plug is a Z-Wave Switch plug in module specifically used to enable Z-Wave command and control (on/off) of any plug-in tool. It can report wattage consumption or kWh energy usage. Smart Plug can be included and operated in any Z-Wave network with other Z-Wave certified devices from other manufacturers and/or other applications.
-
Page 2: Technical Specifications
communicate in a Z-Wave network, then a security enabled Z-Wave controller is needed. Features: 1) Supporting 1xAC output; 2) AC output switch on/off by manual or Z-Wave command; 3) LED indicates the Z-WAVE network range; 4) LED indicates the load power; 5) Supporting power meter;... - Page 3 2.1 Hardware specifications 230V~，50Hz Rated voltage: Rated load current: Power consumption: ≤1.5W Rated Power output 2300W (plug for resistive load): Operational temperature: 0℃~35℃（testing 25℃） Radio protocol: Z-Wave Radio frequency: 868.0-868.6MHz,869.7-870MHz Maximum RF output power： 1.68mW Additional SPEC: Rated impulse withstand voltage: 2.5KV Duty-type：S1, continuous duty Number of operating cycles: 10000 CIRCUIT DISCONNECTION: Micro-disconnection...
- Page 4 Frame COMMAND_CLASS_SECURITY COMMAND_CLASS_MANUFACTURER_ COMMAND_CLASS_MANUFACTURER_ SPECIFIC SPECIFIC COMMAND_CLASS_VERSION COMMAND_CLASS_VERSION COMMAND_CLASS_TRANSPORT_SERV COMMAND_CLASS_BASIC ICE_V2 COMMAND_CLASS_SWITCH_BINARY COMMAND_CLASS_SECURITY_2 COMMAND_CLASS_SWITCH_ALL COMMAND_CLASS_POWERLEVEL COMMAND_CLASS_ASSOCIATION COMMAND_CLASS_ASSOCIATION_GR P_INFO COMMAND_CLASS_MANUFACTURER_ SPECIFIC COMMAND_CLASS_DEVICE_RESET_LO CALLY COMMAND_CLASS_METER_V3 COMMAND_CLASS_SCENE_ACTIVATIO COMMAND_CLASS_CONFIGURATION COMMAND_CLASS_SUPERVISION COMMAND_CLASS_FIRMWARE_UPDA TE_MD_V4 COMMAND_CLASS_SCENE_ACTUATO...
- Page 5 R_CONF Security COMMAND_CLASS_BASIC, Comma COMMAND_CLASS_SWITCH_BINARY, Support COMMAND_CLASS_SWITCH_ALL, COMMAND_CLASS_ASSOCIATION, Report Frame COMMAND_CLASS_ASSOCIATION_GR P_INFO, COMMAND_CLASS_DEVICE_RESET_LO CALLY, COMMAND_CLASS_CONFIGURATION_ COMMAND_CLASS_METER_V3, COMMAND_CLASS_SCENE_ACTUATO R_CONF, COMMAND_CLASS_SCENE_ACTIVATIO...
- Page 6 COMMAND_CLASS_SUPERVISION COMMAND_CLASS_FIRMWARE_UPDA TE_MD_V4 2, SDK 6.71.01 3, Library Device Type Generic Device Specific Device Role Type class Class On/Off GENERIC_TYPE SPECIFIC_TYPE_P ROLE_TYPE_SLAV Power Switch _SWITCH_BIN OWER_SWITCH_BI E_ALWAYS_ON NARY 3 LED indicator mode Smart Plug’s LED indicator supports two work modes, including Power indication mode night lamp mode.
- Page 7 When the Smart plug state changes you have configured. 4 Functions of each trigger Function of ZWAVE Button: Smart Plug is not in the Z-Wave network: Trigger Description Power on 1. LED has been slow flash, Smart Plug sends security node info frame.
- Page 8 The LED keep blink to the end of add inclusion, If the add for inclusion is successful, LED will turn on within 2 seconds and Then will be in power indication mode, Otherwise, The LED will keep slow flash. Short press twice 1.
- Page 9 2 seconds and Then will be in power indication mode, Otherwise, The LED will keep slow flash. Smart Plug is in the Z-Wave network: Trigger Description Short press once 1. Changing the status of Smart Plug’s load. 2. LED will be in power indication mode. Short press twice 1.
- Page 10 removing mode. 2. Short press Z-button triple. 3. The LED keep blink to the end of remove exclusion, If the remove for exclusion is successful, The LED will keep slow flash, Otherwise, LED will be in power indication mode. Press more than Reset Smart Plug to factory Default: LED in 5 seconds to 5seconds accelerate...
- Page 11 2. Set Configuration parameter 0x03 to 1: Send Basic Report 3. Set Configuration parameter 0x03 to 2: Send Basic Report only when Load condition is changed not by Z-WAVE Command, such as short pressing. 2. Sending Meter Report. 2, Association Group Info Command Association Group Name Report Command Grouping value...
- Page 12 Group Command Support number Group 1 COMMAND_CLASS_BASIC(0x20 BASIC_REPORT(0x03) COMMAND_CLASS_METER_V3( METER_REPORT_V3(0x02) 0x32) COMMAND_CLASS_DEVICE_RE DEVICE_RESET_LOCALLY_NOTI SET_LOCALLY(0x5A) FICATION(0x01) 5.2 Z-Wave Plus Info Report Command value Parameter Z-Wave Plus Version Role Type 6(ZWAVEPLUS_INFO_REPORT_ROLE_TYPE_SLAVE_AL WAYS_ON) Node Type (ZWAVEPLUS_INFO_REPORT_NODE_TYPE_ZWAVEPLU S_NODE) Installer Icon 0x0701 Type (ICON_TYPE_GENERIC_ON_OFF_POWER_SWITCH)
- Page 13 User Icon Type 0x0701 (ICON_TYPE_GENERIC_ON_OFF_POWER_SWITCH) 5.3 Manufacturer Specific Report Command Parameter value Manufacturer ID 1 0x03 Manufacturer ID 2 0x00 Product Type ID 1 0x02 Product Type ID 2 0x00 Product ID 1 0x00 Product ID 2 0x0b 5.4 Version Report Command Parameter Value（HEX）...
- Page 14 Meter Type Meter Reset TRUE Scale Supported 35 (Power，Current，voltage，energy) 5.6 Basic Command BasicCC maps to SWITCH_BINARY Command 5.7 Configuration Command Smart Plug offers a wide variety of advanced configurationsettings. Below parameters can be accessed from main controllersconfiguration interface. Parameter No. 01 Overcurrent protection Smart Plug keep detecting the load power, once the ACcurrent exceeds 16A for more than 5s, smart plug's relay will turn off.
- Page 15 0 - Smart Plug memorizes its state after a power failure. 1 - Smart Plug does not memorize its state after a power failure. Connected device will be on after the power supply isreconnected. 2 - Smart Plug does not memorize its state after a power failure. Connected device will be off after the power supply isreconnected.
- Page 16 Configure LED Display mode to prevent light pollution at night. 0 -The LED status follows the load change. 1–when operating the load, The LED lights for 5 seconds and then turns off. Default setting:0 Parameter size: 1 [byte] Parameter No. 16 The value here represents minimum change in wattage (in terms of wattage) for a meter report to be sent When the change value of load power exceeds the setting value, smart plug will send meter report (watt)to associated device (Group Lifeline).
- Page 17 When the change value of the load power exceeds the setting value, smart plug will send meter report to associated device (Group Lifeline). Available settings: -128 - 127 (0 - 255%) -128 to -1：255% to 128% 1 to 127: 1% to 127% 0 - The function is disabled.
- Page 18 Default setting:600(10 minutes). Parameter size: 4 [byte] Parameter No. 102 Setting time for sending meter report (KWh) The interval of sending meter report (KWh) to association device (Group Lifeline). Available settings: 5- 2678400 (5 - 2678400s) 0 - The function is disabled. Default setting:3600(one hours).
- Page 19 The interval time of sending meter report (current) to associated device (Group Lifeline). Available settings: 5- 2678400 (5 - 2678400s) 0 - The function is disabled. Default setting: 0 (disabled). Parameter size: 4 [byte] Parameter No.254 Enable/disable the configuration command Lock/unlock all configuration parameters.
- Page 20 This device is a security enabled Z-Wave Plus product that is able to use encrypted Z-Wave Plus messages to communicate to other security enabled Z-Wave Plus products. ------------------------------------------------------------------------------------------ For more information, Welcome visit: www.leedarson.com. Mail to: iot@leedarson.com LEEDARSON LIGHTING CO., LTD.
- Page 21 XINGDA RD, XINGTAI INDUSTRIAL ZONE, CHANGTAI COUNTY, ZHANGZHOU,FUJIAN, 363900, CHINA...
