Nexx Garage

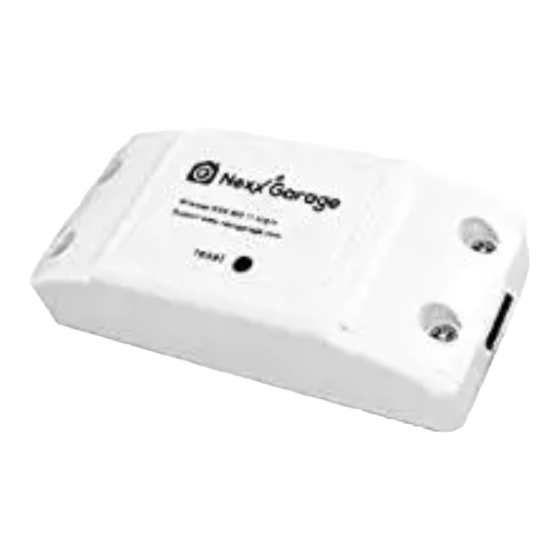

Model NXG-100
Installation Guide V1.3

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the NXG-100 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Nexx NXG-100

Summary of Contents for Nexx NXG-100

  • Page 1 Nexx Garage Model NXG-100 Installation Guide V1.3...
  • Page 2 Thank you for purchasing Nexx Garage! Installation will be quick and easy and should take about 20 minutes to complete. For additional installation instructions please visit or email us at: Website: http://www.nexxgarage.com email: support@nexxgarage.com...

  • Page 3: Installation Tools Needed

    Step 1 of 10 Installation Tools Needed  Flathead screwdriver  Stepladder  Masking tape  Compatible Apple iPhone or Android phone...
  • Page 4 Step 2 of 10 Unpack the contents of your box Your package should contain the following: Nexx Garage Device 8 double sided adhesive tape Door sensor and cable 4 Self-tapping screws Installation manual...

  • Page 5: Mobile App Setup

    Step 3 of 10 Mobile App Setup  Install "Nexx Garage" app from Google Playstore or Apple Appstore  Launch "Nexx Garage" app  From Login screen, tap "Create Account" - Enter first and last name - Enter email address for your login name - Enter password and confirm address - After reviewing our Terms and Services, tap "Accept Terms"...
  • Page 6 Step 4 of 10 Connect to Nexx Garage WiFi network  Power your Nexx Garage device. The LED light from the device should be solid green.  From your smart phone, go to WiFi settings and select "NexxGarage-xxxxxxxx" WiFi network. Enter "12345678" for password.

  • Page 7: Connect To Your Wifi Network

    Step 5 of 10 Connect to your WiFi network  Switch to Nexx Garage app. Tap the menu button which is located on the upper left hand corner. Select "Configure Device" from the menu. You should see a list of available WiFi networks.

  • Page 8: Install The Device

    Step 6 of 10 Install the Device Mount the device on top of your garage door opener (GDO) near the GDO terminals using the double sided adhesive tape. Clean the surface on top of your garage door opener before using the double sided tape to secure the device.

  • Page 9: Connect The Device To Your Opener

    Step 7 of 10 Connect the device to your opener  Locate two exposed wires coming out of the Nexx Garage device.  Connect these two exposed wires to your garage door opener (GDO). Connect them to the same wire as your wall console or manual button to open/close the garage door (see diagram below).

  • Page 10: Install The Sensor

    Step 8 of 10 Install the sensor  Locate the sensor (Part C). The sensor has 2 parts. One is connected to the cable while the other is not.  Mount the sensor that is connected to the cable to the center of the wall adjacent to the garage door, just above the garage door.
  • Page 11 Sensor installation diagram...

  • Page 12: Power Up Nexx Garage Device

    Step 9 of 10 Power up Nexx Garage Device  Plug the power cable of the device into an outlet.  The LED light from the device should blink several times and turn off. Once the LED light is off, this will indicate that the device has successfully connected to your WiFi network.
  • Page 13 Step 10 of 10 Testing  At this point, the app should indicate that you are connected to the device and that the door is currently closed.  Press the garage door icon. Your garage door should be opening and the app should indicate that your garage door is opened.
  • Page 14 Installation Completed! Congratulations on completing the installation. If you had any difficulties on installing Nexx Garage device or if you have general questions, please email us at support@nexxgarage.com or visit us on the web at http://www.nexxgarage.com.
