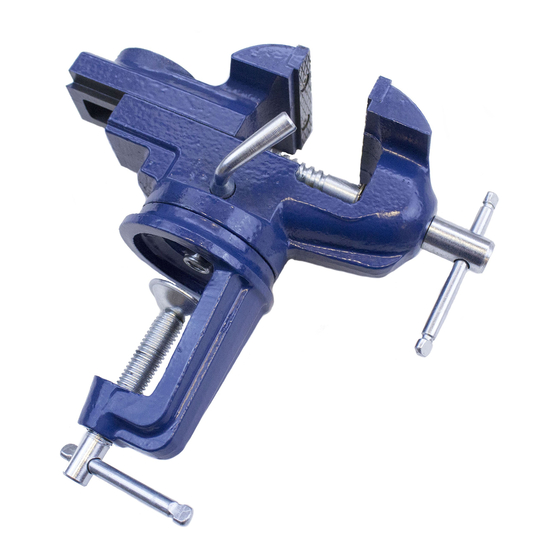

Yost Model 2503 Bench Vise, Clamp-on Style
Model 2503 Clamp-on Vise:

Made of Gray Iron

Two steel guide rods provide smooth screw action

Yoke style screw clamp for mounting to bench tops ½" – 1-7/8" thick

Replaceable / interchangeable hard plastic (nylon) jaws. Mounted on vise.

Replaceable / interchangeable hardened steel jaws
The vise shall consist of a body with integral front and back jaws (back body with anvil
feature), a sliding front jaw body, guide rods, vise screw, harden steel jaws, hard plastic
jaws, and a sliding screw handle with a stop on each end. The back jaw and body
combination shall extend down and under (a bench / shelf) in a yoke style. A clamping
screw will extend through the bottom of the yoke and the swivel button at the top end of
the screw. A clamping screw handle ("T", or sliding bar type) shall be provided at the
bottom end of the screw.
Vise Item
2503 102503
Nomenclature:
2503:
2503-02-HSJ:
Jaw Width Jaw Opening
2-1/2"
Yost Bench Vise, Clamp-on Style: 2-1/2" jaw width, 3" Jaw
Opening, equipped with Replaceable Hard Plastic Jaws
Replaceable Hardened Steel Jaws (1 Pair included)
Throat
Depth
3"
2-1/2"
Wt. (lbs)
4
