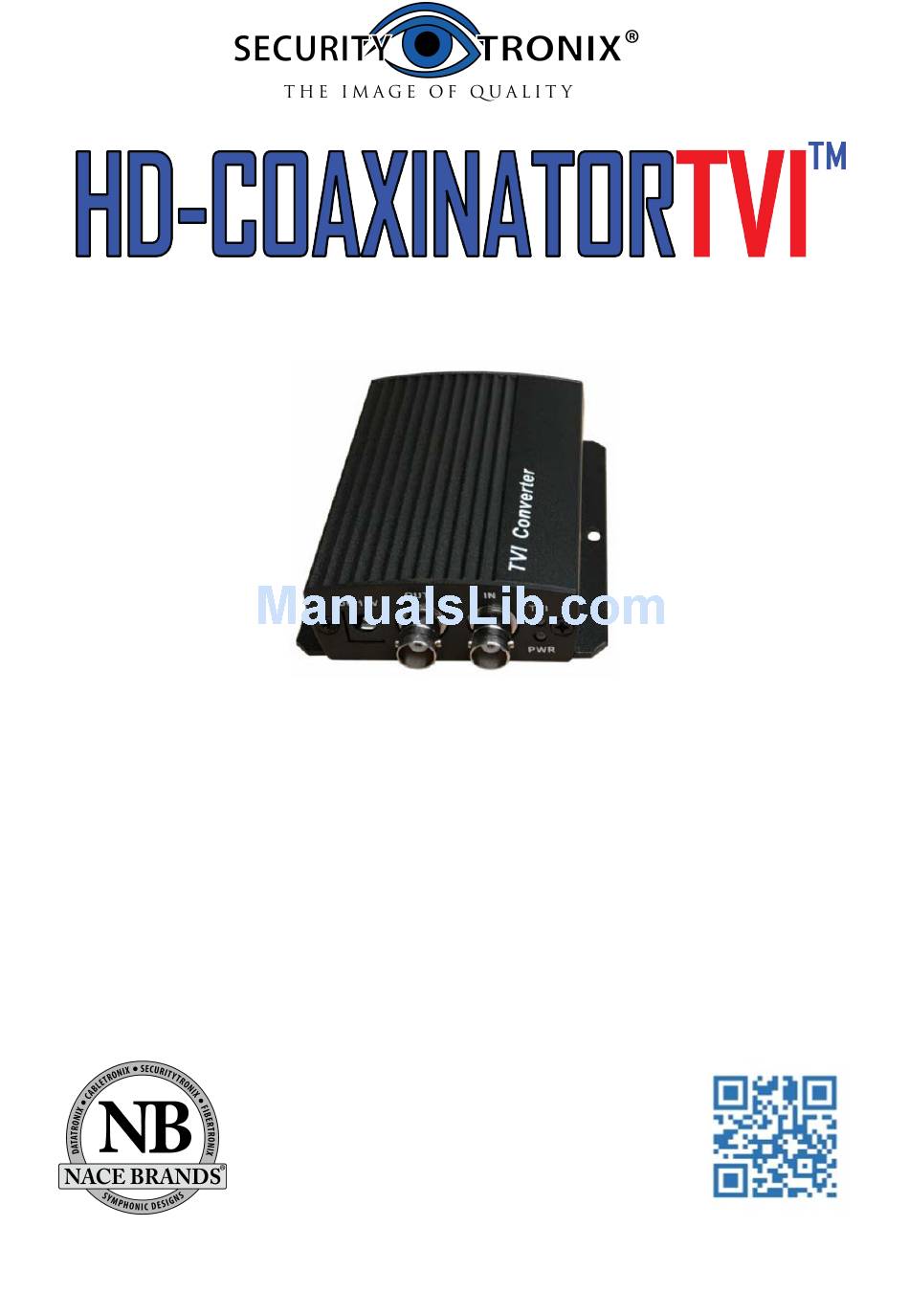

- Page 1 ST-TVI-VC QUICK START GUIDE www.nacebrands.com www.securitytronix.com...
- Page 2 LIMITATION, MERCHANTABILITY, SATISFACTORY QUALITY, FITNESS FOR A PARTICULAR PURPOSE, AND NON-INFRINGEMENT OF THIRD PARTY. IN NO EVENT WILL SECURITYTRONIX, ITS DIRECTORS, OFFICERS, EMPLOYEES, OR AGENTS BE LIABLE TO YOU FOR ANY SPECIAL, CONSEQUENTIAL, INCIDENTAL, OR INDIRECT DAMAGES, INCLUDING, AMONG OTHERS, DAMAGES FOR LOSS OF BUSINESS...
- Page 3 SURVEILLANCE LAWS VARY BY JURISDICTION. PLEASE CHECK ALL RELEVANT LAWS IN YOUR JURISDICTION BEFORE USING THIS PRODUCT IN ORDER TO ENSURE THAT YOUR USE CONFORMS TO THE APPLICABLE LAWS. SECURITYTRONIX SHALL NOT BE LIABLE IN THE EVENT THAT THIS PRODUCT IS USED FOR ILLEGITIMATE PURPOSES.
- Page 4 ST-TVI-VC User Manual Regulatory Information FCC Information FCC compliance: This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment.
- Page 5 ST-TVI-VC User Manual applicable harmonized European standards listed under the Low Voltage Directive 2014/35/EU, the EMC Directive EMC Directive 2014/30/EU, the RoHS Directive 2011/65/EU. 2012/19/EU (WEEE directive): Products marked with this symbol cannot be disposed of as unsorted municipal waste in the European Union.
- Page 6 • If the product does not work properly, please contact your dealer or technical support. Never attempt to disassemble the item yourself. (Securitytronix shall not assume any responsibility for problems caused by unauthorized repair or maintenance.) • If smoke, odors or noise arise from the device, turn off the power at once and unplug the power cable, then please contact technical support.
- Page 7 ST-TVI-VC User Manual • The equipment shall be kept from rain and moisture. • Exposing the equipment to direct sun light, low ventilation or a heat source such as space heater or radiator is forbidden (ignoring this can cause a fire hazzard).
-
Page 8: Table Of Contents
ST-TVI-VC User Manual Table of Contents Chapter 1 Introduction ..............9 Overview................9 Available Model ..............9 Features ................9 System Connection ............. 9 Chapter 2 Panel and Installation............. 11 TVI-VC Panel ..............11 Installation ............... 12 Chapter 3 Specification..............13... -
Page 9: Chapter 1 Introduction
ST-TVI-VC User Manual Chapter 1 Introduction 1.1 Overview The ST-TVI-VC converts the HDTVI signal to an HDMI signal. It supports all HDTVI video resolutions, and 1-ch HDTVI loop out. 1.2 Available Model (s) TVI-VC 1.3 Features 1-ch HDTVI input, 1-ch HDTVI loop out, and 1-ch HDMI output. ... - Page 10 ST-TVI-VC User Manual HDTVI Convertor HDTVI HDMI Figure 1. 1 Typical System Connection...
-
Page 11: Chapter 2 Panel And Installation
ST-TVI-VC User Manual Chapter 2 Panel and Installation 2.1 ST-TVI-VC Panel Front Panel: Figure 2. 1 Front Panel Table 2. 1 Front Panel Description Name Description Power 12V DC 1-ch HDTVI video output 1-ch HDTVI video input Video Source LED Lights in green when the video input is Indicator normal... -
Page 12: Installation
ST-TVI-VC User Manual Rear Panel: Figure 2. 2 Rear Panel Table 2. 2 Rear Panel Description Name Description HDMI 1-ch HDMI output 2.2 Installation • Check the device packaging and appearance. • Read the user manual and pay attention to the preventive and cautionary tips. •... -
Page 13: Chapter 3 Specification
ST-TVI-VC User Manual Chapter 3 Specification ST-TVI-VC (HDTVI Converter) Model Physical Interface BNC, HDMI Input Level > 500 mVp-p HDMI 1.4b, “A” standard interface Output Format Input Auto Cable 1080p, 720p, 100M75-5 cable input for 328' Equalization 1080p 25/30, 720p 25/30/50/60, compatible with Input Format V2.0 HDTVI 75 Ω...
