Ledino 11120106005011 Instruction Manual

Technical Data:

Ledino LED Floodlight „Laim" 10 W/ 20 W/ 30 W/ 50 W
with Infrared Motion Sensor and Twilight Switch
220-240 V AC 50/60 Hz, 10/20/30/50 W LED chip
CRI > 80 Ra, PF > 0.9, SDCM < 6
isolation class 1, 110° beam angle
operating temperature: -20 to 50 ° C
aluminium housing IK05, glas diffusor
lifetime 30000 h, 15000 switching cycles
IP54 - protection against splashing water
0.5 m cable (3 x 1.0 mm²)
warranty 2 years*
IR motion sensor:
optimal installation height: 2.5 - 3 m
working area adjustment:
time adjustment:
daylight adjustment:
10 Watts LED Floodlight, H: 166, W: 147, D: 43 mm, 0.58 kg
12 kWh/1000 (at continuous operation of the sensor), energy class A+
11120106005011 „Laim 10SCI" cold white light 6500 K, 800 lm
11120103005011 „Laim 10SWI" warm white light 3000 K, 760 lm
20 Watts LED Floodlight, H: 205, W: 202, D: 36 mm, 0.96 kg
22 kWh/1000 (at continuous operation of the sensor), energy class A+
11120206005011 „Laim 20SCI" cold white light 6500 K, 1600 lm
11120203005011 „Laim 20SWI" warm white light 3000 K, 1520 lm
30 Watts LED Floodlight, H: 252, W: 231, D: 41 mm, 1.41 kg
32 kWh/1000 (at continuous operation of the sensor), energy class A+
11120306005011 „Laim 30SCI" cold white light 6500 K, 2400 lm
11120303005011 „Laim 30SWI" warm white light 3000 K, 2280 lm
50 Watts LED Floodlight, H: 290, W: 277, D: 41 mm, 2.16 kg
52 kWh/1000 (at continuous operation of the sensor), energy class A+
11120506005011 „Laim 50SCI" cold white light 6500 K, 4000 lm
11120503005011 „Laim 50SWI" warm white light 3000 K, 3800 lm
*) The conditions of our functional warranty can be found on enclosed sheet and on the internet at
„http://ledino.com/garantiebestimmungen/"

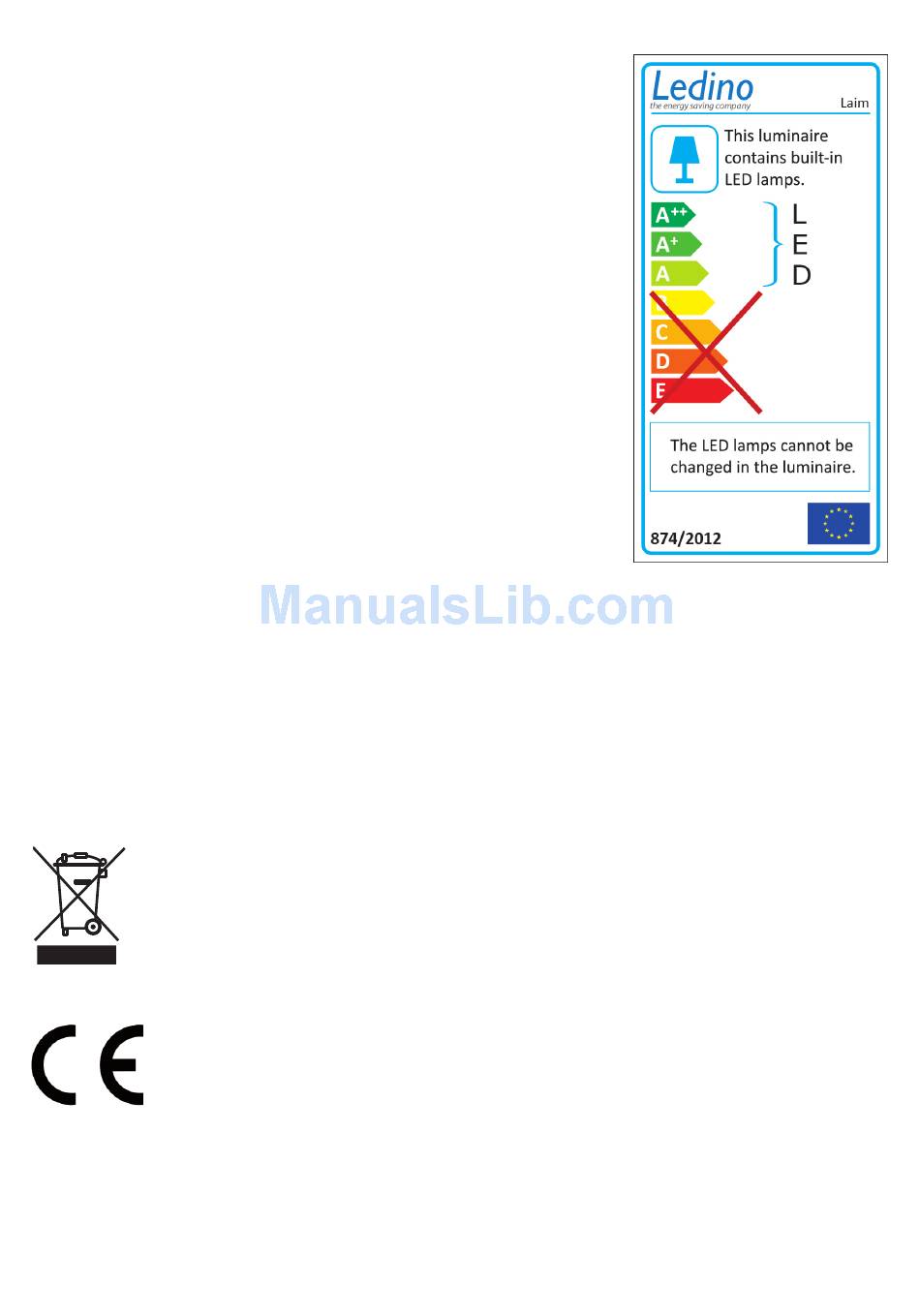

Used units must not be disposed of with household waste!
If the unit is no longer operational, every consumer is required by law to dispose of used
devices separate from household waste, e. g. at a collection point run by the communal
authority borough. In this way, used devices can be recycled and waste materials disposed
of in an environmentally friendly manner.
For this reason, electrical equipment is labelled with the displayed symbol.
We hereby confirm that the products are in line with the regulations – and in particular
with the protection requirements – of the European Union's directive on the harmoni-
sation of the legislation relating to electromagnetic compability (2014/30/EU), the low
voltage directive 2014/35/EU, the directive for Energyrelated Products 2009/125/EG and
the RoHS directive 2011/65/EC
Ledino
the energy saving company
8
max. 12 m, 90°
10 ±5 sec. - 5 ±1 min.
0 - 2000 lux
Deutschland GmbH
.
14974 Ludwigsfelde/ Berlin
IP54
Spitzahornweg 1
Germany
