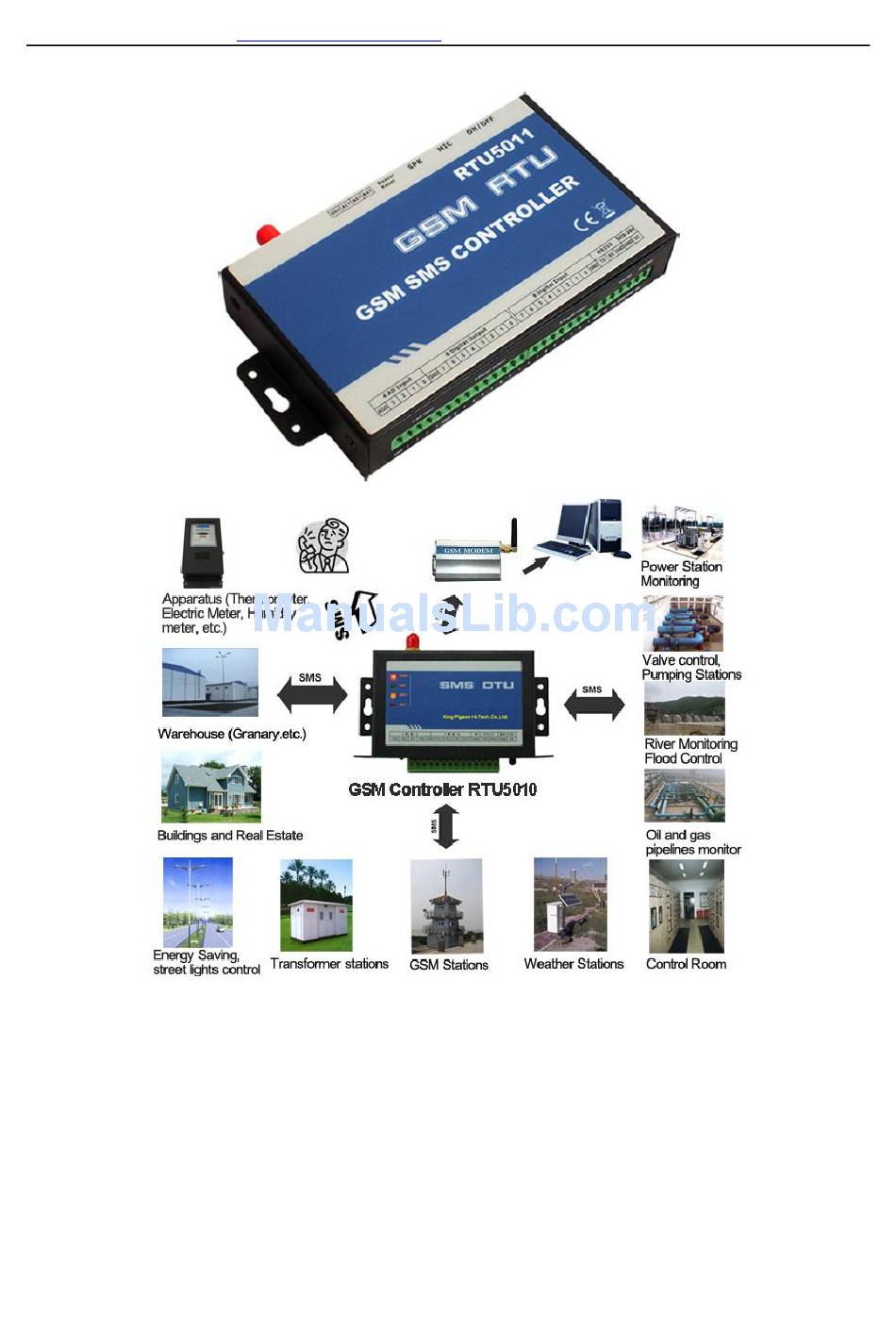

- Page 1 Shenzhen Daiya Electronic Technology Co., Ltd. http://daiya.en.alibaba.com/ www.daiyagsmalarm.com GSM Controller RTU5011 User Manual Ver 1.2 Date Issued: 2009-02-28 All Rights Reserved by Shenzhen Daiya Electronic Technology Co., Ltd. Website: http://daiyagsmalarm.com...
-
Page 2: Table Of Contents
Shenzhen Daiya Electronic Technology Co., Ltd http://daiya.en.alibaba.com/ www.daiyagsmalarm.com CONTENTS Preface.............................3 Package list...............................3 Introduction..........................4 Features................................4 Parameter................................5 RTU5011 interface............................6 Configuration guide of RTU5011..................7 3.1 Access setup mode..........................7 3.2 Add “CS number”............................ 9 3.3 Basic parameter configuration......................10 3.4 Parameters for alarm..........................11 3.5 ALL SMS.............................. -
Page 3: I Preface
I Preface Thank you for using the RTU5011 GSM RTU. You will know well about the functions and operation methods of this product quickly through this User’s Manual. This product is mainly used for remote alarming and control application based on GSM network. Please use it according to the parameters and technical specifications in the User’s Manual. -
Page 4: Introduction

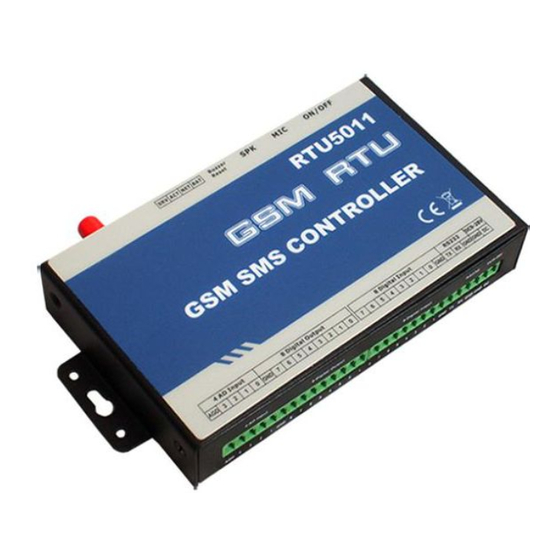

II Introduction RTU5011 GSM RTU is designed as a cost effective remote control system alert device. It monitors up to 8 dry contacts and 8 drivable relay outputs and 4 AD input. User-defined SMS is sent to pre-configure mobile phone numbers when a pre-defined alarm condition happens.These pre-configured mobile... -
Page 5: Parameter
Shenzhen Daiya Electronic Technology Co., Ltd http://daiya.en.alibaba.com/ www.daiyagsmalarm.com Relay drive output Digital inputs GSM Engine Watchdog Industrial MCU Power Battery management Audio management Internal DC Input temperature sensor Parameter Parameter item Reference scope DC Power supply 9-28V DC (Standard adapter: DC 12V/1.5A) Power consumption 12V input Max. -
Page 6: Rtu5011 Interface
Shenzhen Daiya Electronic Technology Co., Ltd http://daiya.en.alibaba.com/ www.daiyagsmalarm.com RTU5011 interface RTU5011 interface LED indicator description Indicator Status Indication description Indicator for power supply, which will be light on when PWR (Red) Normally light on the system is power on SMS module signal indicator, which will flicker slowly... - Page 7 Shenzhen Daiya Electronic Technology Co., Ltd http://daiya.en.alibaba.com/ www.daiyagsmalarm.com Terminal Description Device Relay 1. ［DC9-28V］ Terminal Description positive terminal of the DC power supply (+) Negative terminal of the DC power supply (- ) 2. ［RS232］:Connecting computer RS232 to config 3. 8 Digital input: Digital input connecting open or close contact...
-
Page 8: Configuration Guide Of Rtu5011
Basic Parameters 3.1 Access setup mode Connect RTU5011 with RS232 of the computer and open the configuration software, make RTU5011 access setup mode according to the following figure. Note: Please choose the serial port No. and rate correctly, the default communication rate is 9600;... - Page 9 Definition: Working mode and setup mode In setup mode, all functions is disabled, only to set parameters. And RTU5011 must be restart to enter working mode. In working mode, all functions is enabled, the RTU5011 can alarm and control.
-
Page 10: Add "Cs Number
RTU5011 is under the setup mode. 3.2 Add “CS number” RTU5011 under working mode, the “CS number” can send sms commands to control RTU5011 and receive RTU5011 sms (include alarm sms, report sms etc). User can set 10 CS numbers, CS0-CS9... -
Page 11: Basic Parameter Configuration
RTU5011’s GSM signal value below 11 2. Daily report: When the daily report function is used, RTU5011 will send a report sms to all CS numbers at 10:00 every morning for reporting current states, through which the user can make sure the normal operation of RTU5011. -
Page 12: Parameters For Alarm
RTU5011 send to service phone number. 4. print RTU alarm events by com port Enable this option, when RTU5011 alarm, it send the alarm data to com port in RTU_IO data format 5. Arm delay and disarm delay Define the time of “delay send sms time when alarm”... -
Page 13: All Sms
Shenzhen Daiya Electronic Technology Co., Ltd http://daiya.en.alibaba.com/ www.daiyagsmalarm.com Multi parameters can be selected into daily report, include: a. Interior temperature: if your’s RTU5011 has added internal temperature sensor, the termperature value will show in the daily report. Attention：A standard RTU5011 have not internal temperature sensor b. -
Page 14: Cs's Authority
Shenzhen Daiya Electronic Technology Co., Ltd http://daiya.en.alibaba.com/ www.daiyagsmalarm.com sms, AD inputs alarm/recover sms etc. you can Double-click it to modify. 3.6 CS’s authority The explanation of the CS’s authority (“O” is enable, “X” is disable) Authority Explanation admin Can Arm/disarm or not... -
Page 15: Inputs_Outputs Types
3.7 Inputs_Outputs types Digital inputs types RTU5011 provide 8 digital inputs, input signals can be divided into two types, EDGE_IN (edge triggering) and LEVEL_IN (state triggering). ATTENTION: The key deference between Level and Edge is Level input has recovery notify message and Level inputs can repeat alarm status sms notify by an interval. - Page 16 “Use digital input 1 as arm control” property: Enable this option, RTU5011 is in arm mode if digital input 1 is opened, RTU5011 is in disarm mode if digital input 1 is closed, so user can connect a button to switch mode for arm or disarm ATTENTION: Use digital input1 as arm control you need select the type of input1 is “TO CLOSE ALARM...
-
Page 17: Define Alarm And Recover Sms Of Digital Input
Shenzhen Daiya Electronic Technology Co., Ltd http://daiya.en.alibaba.com/ www.daiyagsmalarm.com 3.8 Define alarm and recover sms of digital input All of the input line sms can be modify and re-define. ATTENTION: a SMS composed of not more than 60 characters 3.9 Digital inputs timeouts... - Page 18 Shenzhen Daiya Electronic Technology Co., Ltd http://daiya.en.alibaba.com/ www.daiyagsmalarm.com This page designed to setup input timeouts property. There are 3 interval related with inputs. 1. Alarm sms limit interval designed to avoid amounts of alarm/recover sms in a short time. 2. Alarm sms resend interval designed for repeat alarm status notifies to phones, 0 means disable repeat notification.
-
Page 19: Config Digital Inputs/Outputs Name
Shenzhen Daiya Electronic Technology Co., Ltd http://daiya.en.alibaba.com/ www.daiyagsmalarm.com 3.10 Config digital inputs/outputs name If you send sms command to require inputs status, there is a contrast of returning from：+8613480165874 from：+8613480165874 High voltage：normal Input 0 ：normal Low voltage：alarm Input 1 ：alarm High water level：normal... - Page 20 Shenzhen Daiya Electronic Technology Co., Ltd http://daiya.en.alibaba.com/ www.daiyagsmalarm.com Example: This settings means CS0 don’t receive line0 alarm CS1 don’t receive line1 alarm sms.
-
Page 21: Analog Input Alarm
You can preset a high and a low level for every AD input, if the input electrical signal is above the high level or below the low level, RTU5011 alarm. You can also send sms command to RTU5011 to get current value. -
Page 22: Define Alarm And Recover Sms Of Ad Input
3. AINDLY time: timespan of ensure AD alarm RTU5011 will not execute any alarm action(send alarm sms, interlock etc.) in the AINDLY time even AD inputs is over normal range, if the duration of the alarm signal overrun the AINDLY time,RTU5011 will execute a alarm action(send alarm sms, interlock etc.). -
Page 23: Config Ad Inputs Name
Shenzhen Daiya Electronic Technology Co., Ltd http://daiya.en.alibaba.com/ www.daiyagsmalarm.com 3.14 Config AD inputs name If you send sms command to require AD inputs value, the AD inputs name show in the sms For example, set the AD input 0 channel name is “temperature”, the sms is: From：+8613480165874... - Page 24 Shenzhen Daiya Electronic Technology Co., Ltd http://daiya.en.alibaba.com/ www.daiyagsmalarm.com...
-
Page 25: Buzzer
I-sensors 3.16 Buzzer A buzzer is installed in the RTU5011. The buzzer will be activated when alarm, it can be stopped by the buzzer reset button on RTU5011 panel, or through sending the command with CS number remotely. In this page, you can enable or disable the buzzer and set interval time of alarm 3.17 Tmp100 sensor (optional) -
Page 26: Internal Battery (Optional)
Shenzhen Daiya Electronic Technology Co., Ltd http://daiya.en.alibaba.com/ www.daiyagsmalarm.com temperature value, if temperature is over normal range, RTU5011 alarm. You can send sms command to RTU5011 to get current temperature value. User can set “Adjust” value to calibrating temperature value 1. TMPAS time: timespan of twice alarm TMPAS time is designed to avoid amounts of alarm/recover sms in a short time. -
Page 27: Realtime Interlock
Shenzhen Daiya Electronic Technology Co., Ltd http://daiya.en.alibaba.com/ www.daiyagsmalarm.com Others setting 3.19 Realtime Interlock Realtime interlock is a local strategy, it is designed to outputs execute action automatically under some internal triggering conditions, For example If digital input 0 alert, output 0 close pulse 5 seconds... -
Page 28: Timers
Timers is designed to time execute task, task include arm, disarm, open/close output etc. System timers 6 times can be set in a day, RTU5011 execute a task in each time. For example, at 8:30 execute arm, at 17:00 execute disarm. -
Page 29: Weekly Timers
Second timers Set second value for the timers, RTU5011 execute a task every the interval time. ATTENTION: before you the timers, you have to update RTU5011’s clock, the method of update clock please see “Basic parameter configuration” above 3.21 Weekly Timers 7 times can be set in a week, RTU5011 execute a task in each time. -
Page 30: Program Interlock
3.22 Program Interlock Program interlock is a local strategy; it is stronger and more flexible than realtime interlock. You can set RTU5011 execute many actions automatically according to various types of system events. If event happens, RTU5011 execute action. For example, if RTU5011 powerup, output 0 pulse 1 second 3.23 Define users commands... - Page 31 Shenzhen Daiya Electronic Technology Co., Ltd http://daiya.en.alibaba.com/ www.daiyagsmalarm.com...
