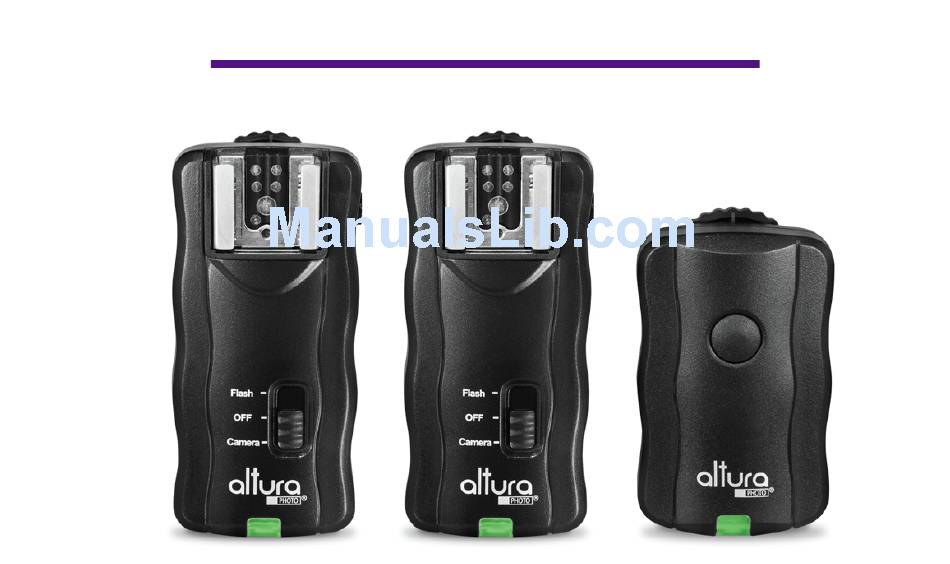

DUAL WIRELESS FLASH TRIGGER SET
USER'S MANUAL
www.alturaphoto.com

Advertisement

loading
Need help?

Need help?

Do you have a question about the 702168588511 and is the answer not in the manual?

Questions and answers

Summary of Contents for Altura Photo 702168588511

  • Page 1 DUAL WIRELESS FLASH TRIGGER SET USER'S MANUAL www.alturaphoto.com...
  • Page 2 USER GUIDE Thank you for purchasing the Altura Photo Wireless Remote Control & Flash Trigger Kit. Please refer to the instructions below to properly understand the functionality of these items. TRANSMITTER Shutter release / test button Trigger point ACC1 socket...
  • Page 3 RECEIVER Hot shoe socket Hot shoe socket Mode switch Battery cover Indicator light ACC2 socket...
  • Page 4: For Your Safety

    Do not expose the product to high temperatures. FEATURES The Altura Photo series 3-in-1 Wireless Flash Trigger & Remote Control is a versatile and reliable control kit. These units have the ability to trigger external flash units and studio lights...
  • Page 5: Specification

    The Altura Photo series also functions as a wireless camera shutter release – ideal for wildlife, macro, and portrait photography where even the slightest camera shake can ruin a shot. This prevents the Altura Photo Trigger from picking up radio interference and extends its range when working on the 433MHz frequency.
  • Page 6 FUNCTIONS 1.Wired Remote Control (for DSLR camera with remote socket) 2.Wireless Remote Control (for DSLR camera with remote socket) 3.Wireless Flash Trigger (for camera speedlite or studio light) Weight: Transmitter: 30g (without battery) Receiver: 42g (without battery) Dimensions: Transmitter: 62.6 x 39.2 x 27.1mm Receiver: 79.9 x 37.8 x 33.2mm...
  • Page 7: Channel Setting

    CHANNEL SETTING -Altura Photo's transmitter and receiver channel switches are inside the battery hatch. -Follow the OPEN direction icon to slide out the battery door and set the channel. -There are 16 Channel combinations for the transmitter and receiver. -Please make sure both the transmitter and receiver are on the same channel.
  • Page 8 REPLACING RECEIVER BATTERIES: 1.Turn OFF the receiver unit. 2. Slide out the battery cover from the receiver unit. 3.Remove the batteries. 4. Insert two fresh AAA batteries. WIRELESS FLASH TRIGGER:...
  • Page 9 1. Turn OFF the power of both the camera and receiver. 2. Mount the transmitter onto the camera’s hot shoe socket. 3. Mount the flash onto the receiver’s hot shoe socket. 4. If your flash or studio light do not have hot shoe entries, connect the studio light cable to the flash or studio light to the ACC2 socket of the receiver.
  • Page 10 WIRED SHUTTER RELEASE: 1. Turn the camera OFF. 2. Connect the shutter release cable to the ACC1 socket of the transmitter and to the remote input on the camera body. 3. Turn the camera ON. 4. Press the test button on the transmitter. 5.
  • Page 11 1. Turn both the camera and receiver OFF. 2. Mount the receiver to the camera’s hot shoe socket. Connect the shutter release cable to the ACC2 socket of the receiver and to the remote socket on the camera body. 3. Set the channel switches to the same combination on both the receiver and transmitter. (When using several camera units, make sure all receivers are set to the same channel settings.) 4.
  • Page 12 Altura Photo guarantees that this product will not contain any defects caused by manufacturing processes, workmanship, or materials for one (1) year. This guarantee starts from the date of purchase. Altura Photo will, at its discretion, either repair or replace prepaid, returned equipment free of charge.
  • Page 13 For more information about this product, go to www.AlturaPhoto.com and search the keyword: "Wireless Flash Trigger."...
