FLATMAN ECO / PRO – User Manual 1 Table of Contents Table of Contents ......................... 3 Introduction .......................... 5 Symbols used in this Manual ....................... 5 Important Instructions .......................... 5 Note on the Warranty ........................... 5 General Safety Instructions ....................6 Electromagnetic Compatibility ....................
Page 4
FLATMAN ECO / PRO – User Manual 8.1.17 23.8“ built-in-variant ........................25 8.1.18 23.8“ full metal ..........................25 Connectors ......................... 26 Panel PC BayTrail variant ........................26 Panel PC Haswell variant ........................26 Panel PC Apollo Lake variant ......................26 Panel PC Skylake / Kaby Lake variant ....................
FLATMAN ECO / PRO – User Manual 2 Introduction Symbols used in this Manual This symbol point out to especially information. Important Instructions This chapter contains instructions which must be observed when using your Flatman Monitor. The manufacturer’s instructions provide useful information on your device.
FLATMAN ECO / PRO – User Manual 3 General Safety Instructions The ext. supply shall meet the criteria for SELV (Safety Extra-low Voltage) and <240VA acc. UL 60950-1. It must be assumed that safe operation is no longer possible, if the device has visible damage or if the device no longer functions.
FLATMAN ECO / PRO – User Manual 4 Electromagnetic Compatibility Electromagnetic Compatibility EU This product is in conformity with the protection requirements of EU Council Directive 2004/108/EC on the approximation of the laws of the Member States relating to electromagnetic compatibility. If the user modifies and/or adds to the equipment (e.g.
Example: EN00-Z11100-01 (FLATMAN ECO 10.4“ with Intel® BayTrail Celeron Quad Core J1900 resistive touch in full metal housing with 4GB RAM, 32GB mSATA, no any other options E N 0 0 - y y y y y y - x x...
Page 12
FLATMAN ECO / PRO – User Manual Display Size/CPU X9 = 15.6“ with Intel® Kaby Lake ULT, Core i5-7300U inside XA = 17.0“ with Intel® Kaby Lake ULT, Core i5-7300U inside XB = 18.5“ with Intel® Kaby Lake ULT, Core i5-7300U inside XC = 19.0“...
FLATMAN ECO / PRO – User Manual CE Directives and Standards CE Directives Low Voltage Directive (Electrical Safety) 2014/35/EU EMC Directive 2004/108/EC RoHS II Directives 2011/65/EU Minimum health and safety requirements regarding the exposure of 2013/35/EU workers to the risks arising from physical agents (electromagnetic fields) Electromagnetic compatibility (EMC), Part 6-2:Generic Standards –...
FLATMAN ECO / PRO – User Manual 840-0758 Display-Port-cable 1,8m 840-0759 DP Kabel 3m 840-0760 DP Kabel 5m 840-0598 Adapter VGA / DVI 840-0039 VGA/SVGA cable 1,8m/2,0m 840-0273 USB-cable 1,8m, Type A – Type B 840-0134 DVI-cable 2m Type Label and Product Identification Product and Package Label, size 85 x 35mm, polyester matt silver fig.

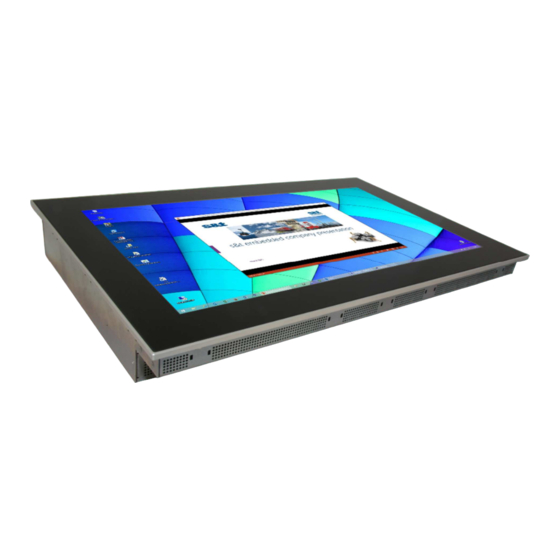

FLATMAN ECO / PRO – User Manual 7 Product Description Product view 7.1.1 Front View Description RFID sign (option!) TFT Display with resitive or P-CAP Touch front Front plate fig. 2: Front view 7.1.2 Rear View Description – full metal-variant...
FLATMAN ECO / PRO – User Manual 9 Connectors Panel PC BayTrail variant fig. 23: Peripherie Panel BayTrail variant Panel PC Haswell variant fig. 24: Peripherie Panel Haswell variant Panel PC Apollo Lake variant fig. 25: Peripherie Panel Apollo Lake variant Panel PC Skylake / Kaby Lake variant fig.
FLATMAN ECO / PRO – User Manual PWR: Input Power Connector Signal Mating connector Phoenix Contact PSC 1,5/ 3-F Order# 1841909 Shield fig. 27: Power Connector See also General Safety Instructions chapter 3 (page 6). left LED: Power right LED: Drive activity...
FLATMAN ECO / PRO – User Manual LAN: GbE RJ-45 Connector Signal Name Signal Name TX1+ TX3- TX1- TX2- TX2+ TX4+ TX3+ TX4- fig. 31: GbE RJ45 Connector 9.8.1 LED Diagram of LAN Connectors: (front view) left LED: activity / link...
FLATMAN ECO / PRO – User Manual 9.10 DP Connector Signal Signal TX0+ TX3- TX0- TX1+ AUX+ TX1- TX2+ AUX- TX2- TX3+ fig. 33: Display Port connector 9.11 DB15 VGA Connector Signal Name Signal Name Green Blue n.c. n.c. DDC Data...
FLATMAN ECO / PRO – User Manual 10 Startup Procedure To activate your Flatman Panel PC connect the power supply to power connector on the Flatman back side. Alternative use the mating power connector for connecting your power cable. The LED “PWR” gives a green light now.
FLATMAN ECO / PRO – User Manual 12 Technical Support For technical support, please contact our Technical Support department: support@snt-embedded.de e-mail: Phone: +49 (0)89 37 00 58 - 0 Make sure you have the following information on hand when you call: •...
Page 32
FLATMAN ECO / PRO – User Manual 2. Download the RMA corresponding form and fill it out, describe the fault that has occurred. fig. 37: S&T RMA form 3. When returning a device: • Pack it securely in its original box.
