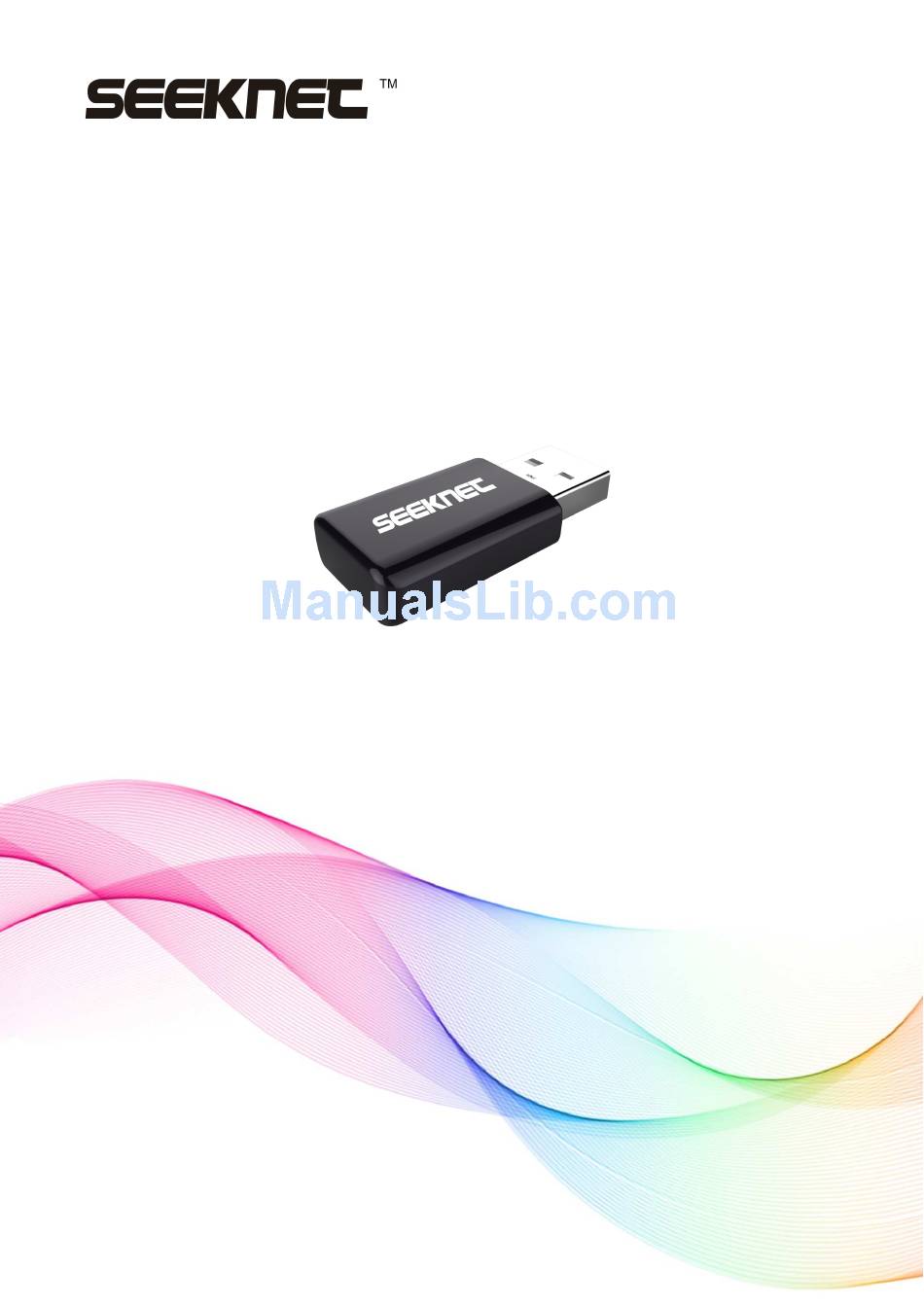

Page 1 AC1300 MU-MIMO USB WiFi Adapter User Manual...
Page 2: Product Features
Introduction Thank you for choosing SEEKNET. Now you can take advantage of the latest technology and enjoy faster wireless speeds. Product features Wirelessly connects your notebook or desktop computer to an wireless network. Upgrades to an ultra-fast wireless AC network, making it easy to enjoy media streaming, lag-free gaming, chatting and surfing.
Page 3: Table Of Contents
Table of Contents Installing on Windows ......................4 Manual Installation on Windows ................... 6 Setting Up the Adapter ......................10 Join a Network ..........................10 Join a Hidden Network ........................12 Manage Connection ........................13 View Connection Status ........................ 14 View Connection Details .......................
Page 4: Installing On Windows
1. Insert the mini adapter into a USB port on your computer. 2. Insert the included CD in your computer CD drive. Note: If your computer does not have a CD drive, please visit the SEEKNET website at www.iseeknet.com/support and search “WA01” to download the driver package.
Page 5 4. Click the Install Driver button. This process might a few minutes, when the installation was successful the screen displays: click the button Finish to complete the installtion. 5. While the driver software was successfully installed, the REALTEK USB Wireless LAN Utility icon also displays on the desktop and in the Windows system tray.
Page 6: Manual Installation On Windows
Manual Installation on Windows If the driver install failed, when you open the software the screen displays: You should manual install the drivers. Please follow the below installation steps. 1. Find your Computer icon and right-click > Manage...
Page 7 2. Click Device Manager, and you will find the yellow exclamation point on the device 802.11ac NIC 3. Right-click the device 802.11ac NIC > Update Driver Software... > Browse my computer for driver software...
Page 8 4. Browse the driver on your CD or on your computer, choose the Folder where drivers are stored and click the button OK.
Page 9 5. Click the button Next to install the driver, this process might a few minutes. 6. When the installation was successful the screen displays: click the button Close to complete the installtion.
Page 10: Setting Up The Adapter
Setting Up the Adapter Join a Network 1. Open the software REALTEK USB Wireless LAN Utility, click the Available Network on the navigation menu, select a WiFi network and click the button Add to Profile.
Page 11 2. Choose the encryption type and enter the password to join the network.
Page 12: Join A Hidden Network
Join a Hidden Network 1) Click the Profile on the navigation menu 2) Click button Add 3) Input the Profile (custom name) and Network Name(SSID) 4) Choose the encryption type in Network Authentication and Data encryption 5) Enter the password to join the network...
Page 13: Manage Connection
Manage Connection Click the Profile on the navigation menu, and you will see the connected network. You can Remove, Edit or Duplicate a network, Set a profile as default network.
Page 14: View Connection Status
View Connection Status Click the General on the navigation menu, you can view the connection status.
Page 15: View Connection Details
View Connection Details Click the Status on the navigation menu, you can view the connection details.
Page 16: Wifi Statistics
WiFi Statistics Click the Statistics on the navigation menu, you can view the WiFi Statistics...
Page 17: Wifi Protect Setup (Wps)
WiFi Protect Setup (WPS) Click the WiFi Protect Setup on the navigation menu to enter WPS setting. If your WiFi router , this function allows you join a secure WiFi network without has a WPS button selecting the network name and entering the password. To use WPS to connect to your WiFi network: Pin Input Config (PIN) Method 1) Open any web browser and enter your router’s address, then login in as administer.
Page 18: Safely Remove The Adapter
Safely Remove the Adapter NOTE: The adapter is not hot-swappable. DO NOT forcefully remove it while it is operating, it may damage the device or cause the computer to crash. Please click the button Safely Remove Hardware on system tray to Eject Realtek 8812BU Wireless LAN 802.11ac USB NIC when needed.
Page 19: Installing On Mac Os
Installing on Mac OS Check your operating system version before installing, it only support Mac OS X 10.9 ~ 10.12 1. Please copy all the files from CD to your computer(or download driver package and extract it to your computer), the driver CD screen displays: 2.
Page 20 5. Click the button Continue to start the installtion, and follow the steps to click the button Continue...
Page 21 6. Click the button Agree to enter the next step...
Page 22 7. Click the button Install to enter the next step. 8. Input your power-on password , then click the button Install Software. If no password please directly click the button Install Software. 9. Click the button Continue Installation to enter the next step.
Page 23 This process might a few minutes. 10. When The installation was successful the screen displays: Click the button Restart to restart your computer to complete the installation.
Page 24 11. After you restart the computer, you can view the adapter’s connection in the status bar. Choose a network and click the Connect button, in the Security Key (Password) field, enter the network password to join a network.
Page 25: Technical Specifications
Technical Specifications Standards IEEE 802.11ac/a/b/g/n 11ac: Up to 867Mbps(Dynamic) Wireless Signal 11n: Up to 300Mbps (Dynamic) Rates With 11g: Up to 54Mbps (Dynamic) Automatic Fallback 11b: Up to 11Mbps (Dynamic) Frequency Range 2.4-2.4835GHz / 5.15-8.825GHz Antenna Type Internal PIFA Antenna Wireless Transmit Power 20dBm (EIRP) Antenna Gain...
