Summary of Contents for Pegatron WL-166N11

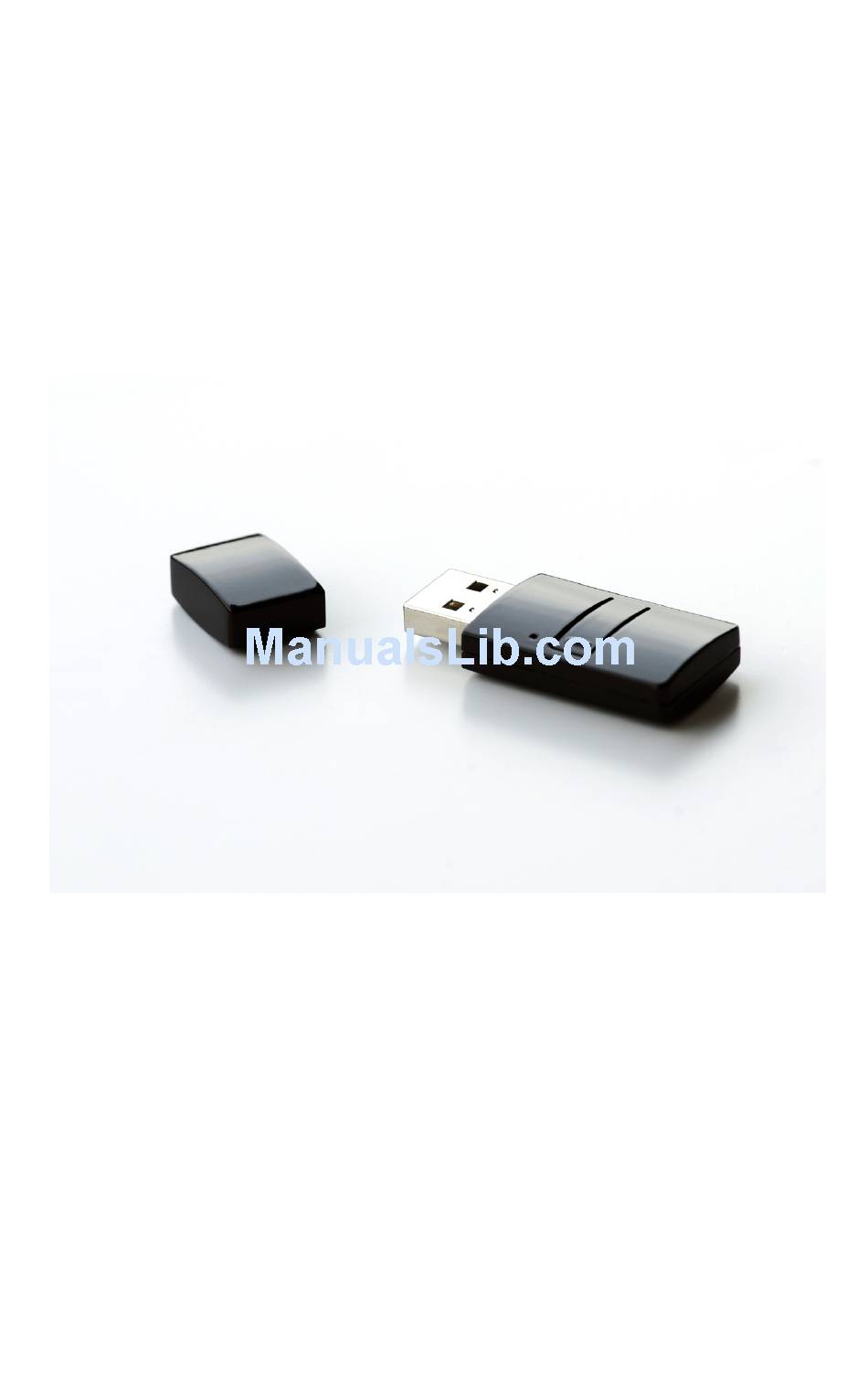

- Page 1 WL-166N11 Wireless USB Dongle Hardware and Driver Reference...
-
Page 2: Table Of Contents
CERTIFICATION ................5 DRIVER INSTALLATION STEPS ............. 6 DEVICE AND DRIVER DETAILS ............7 WIRELESS CONNECTION .............. 8 SafETy STaTEmENTS ....................9 NOTE: Information in this document is subject to change after this document is made available. WL-166N11 Hardware & Driver Reference... -
Page 3: Introduction
The primary purpose of this documentation is to describe the WL- 166N11 product specifications, features, and requirements. The WL-166N11 is an IEEE802.11 b/g/n USB dongle. It allows you to easily upgrade your PC-Platform or Laptop to 802.11n Draft 3.0. It provides an access speed of 150Mbps with IEEE802.11n Draft3.0... -
Page 4: Detailed Features
22.00dBm for 802.11g 22.00dBm for draft 802.11n (20MHz) 22.00dBm for draft 802.11n (40MHz) Security WEP 64/128, WPA, & WPA2 coupled with Int. Reg 802.11d+h Driver OS Support Windows Vista, XP, 2000, Linux, MAC Weight Approx. 7g WL-166N11 Hardware & Driver Reference... -
Page 5: Hardware Information
Host Interface USB 2.0 Antenna Type PIFA Antenna 4 layer The WL-166N11 is a USB 2.0 Wi-Fi dongle which adopts Ralink RT3070 single chipset solution integrating MAC/Baseband and 2.4GHz RF. It fully complies with IEEE 802.11n draft 3.0 and IEEE 802.11 b/g feature. -
Page 6: Driver Installation Steps
The Ralink Utility icon will show on the Windows taskbar. a red X will show bring up a shortcut menu. when there is no connection. Status will show when your cursor is placed over it. WL-166N11 Hardware & Driver Reference... -
Page 7: Device And Driver Details
DRIVER INSTALLATION DEVICE AND DRIVER DETAILS after driver installation, the wireless module shows as “802.11 USB Wireless LaN Card” in Windows Device manager. Detailed driver info. Detailed device info. WL-166N11 Hardware & Driver Reference... -
Page 8: Wireless Connection
This address is need for connection to access points that has accept/reject security access. Click the arrow on the right side of the window to show or hide details. (The above details are shown.) WL-166N11 Hardware & Driver Reference... -
Page 9: Safety Statements
If this equipment does cause harm- ful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: • Reorient or relocate the receiving antenna. • Increase the separation between the equipment and receiver. • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. • Consult the dealer or an experienced radio/TV technician for help. WL-166N11 Hardware & Driver Reference... - Page 10 This is a Class B product, in a domestic environment, this product may cause radio interference, in which case the user may be required to take adequate measures. Hereby that Pegatron Corporation, declares that this device is in compliance with the essential requirements and other relevant provisions of Directive 1999/5/EC.
