Operating Instructions

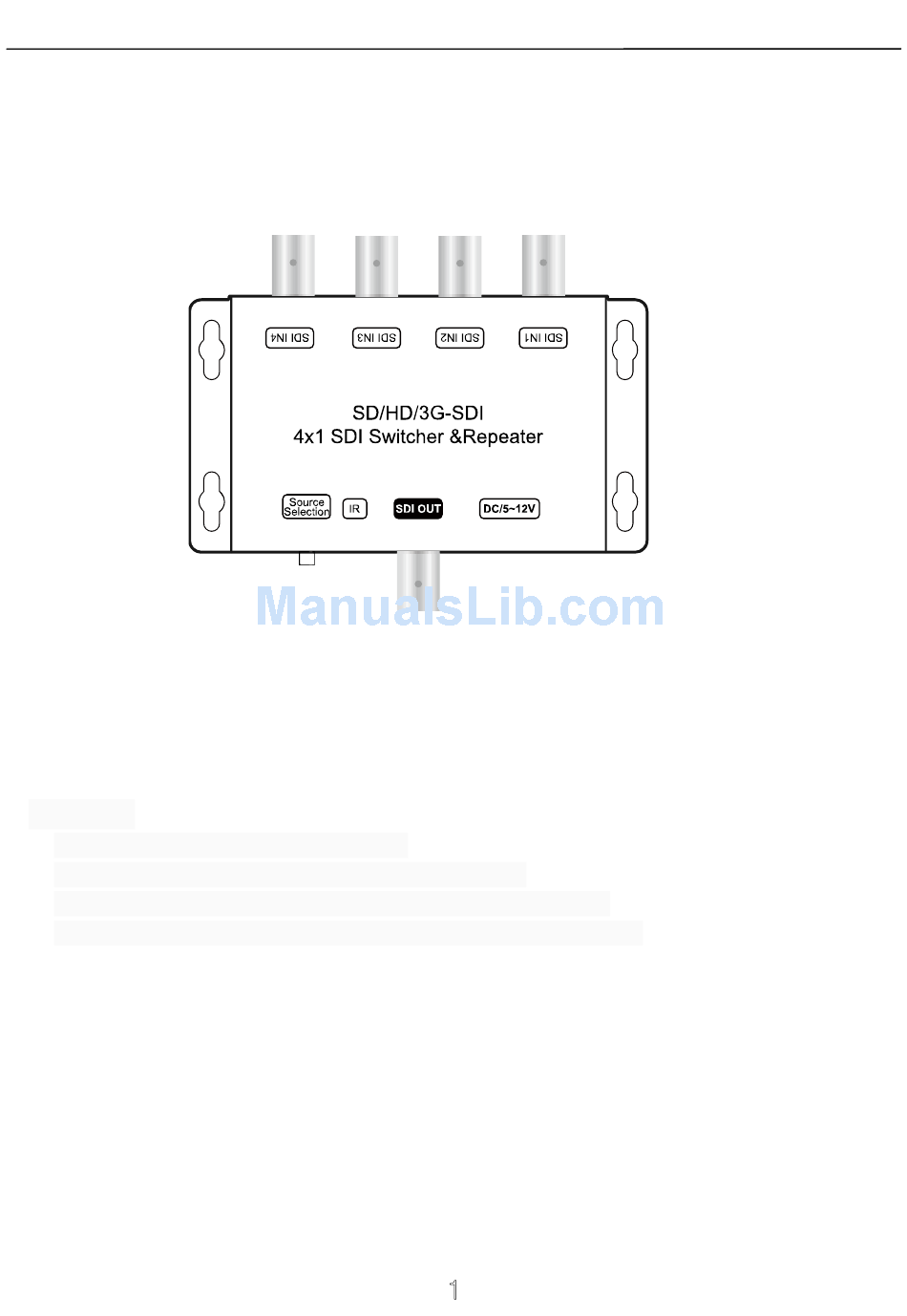

4x1 SDI Switch & Repeater with Re-clocking Function
Operating Instruction
Dear Customer
Thank you for purchasing this product. For optimum performance and safety, please
read these instructions carefully before connecting, operating or adjusting this product.
Please keep this manual for future reference.
Features
1) Switch 4 SDI inputs to 1 SDI Monitor
2) Support SDI Standard: SD-SDI, HD-SDI, 3G-SDI
3) Single unit can transmit up to 120m/390ft (Belden 1694A)
4) Re-clocking function capability-unlimited repeater connection
5) With mounting ears
NOTICE
Our company reserves the right to make changes in the hardware, packaging and any
accompanying documentation without prior written notice.
1
Advertisement
Table of Contents
Summary of Contents for Shenzhen Shunxun Electronics SX-SDI-401
- Page 1 Operating Instructions 4x1 SDI Switch & Repeater with Re-clocking Function Operating Instruction Dear Customer Thank you for purchasing this product. For optimum performance and safety, please read these instructions carefully before connecting, operating or adjusting this product. Please keep this manual for future reference. Features 1) Switch 4 SDI inputs to 1 SDI Monitor 2) Support SDI Standard: SD-SDI, HD-SDI, 3G-SDI...
-
Page 2: Specifications
Operating Instructions Specifications Re-clocking Function SD-SDI, HD-SDI,3G-SDI SDI Standards SMPTE 259M SMPTE 292M Supported Protocols SMPTE 424M 270Mbps(SD-SDI), 1.485Gbps (HD-SDI), 2.97Gbps (3G-SDI) Data Rates 480i@60hz, 576i@50Hz, 720p@50/59.94/60hz, Video Support 1080i@50/59.94/60hz, 1080p@23.98/24/25/29.97/30/50/59.94/60hz SMPTE-292M, SMPTE-259M, SMPTE-424M SDI Signal Type 75 ohms Output Impedance HD-SDI up to 120m SD-SDI up to 200m Cable Equalization... -
Page 3: Panel Descriptions
Operating Instructions PANEL DESCRIPTIONS Left Side View Right Side View 1) Source Selection 2) IR Extension receiver input 3) SDI output port 4) Indicator for DC 5) Indicators for signal 6) Power Input 7) SDI input 1~4 Connecting and Operating 1. - Page 4 Operating Instructions Typical Application (1) Distribute 4 SDI input to SDI output (2) Connect with HDMI to SDI converter and SDI to HDMI converter (3) Repeater connection...
- Page 5 Operating Instructions After sale Service and Warranty WARRANTY If your product does not work properly because of a defect in materials or workmanship, our Company (referred to as "the warrantor" ) will, for the length of the period indicated as below, (Parts(2)Year, Labor(90) Days) which starts with the date of original purchase ("Limited Warranty period"), at its option either(a) repair your product with new or refurbished parts, or (b) replace it with a new of a refurbished product.
