Page 1: Table Of Contents
Content Keys on DVR … …………………………… . 2 Side face on DVR……………………………2 2 Channel Mini DVR Icons on screen….……………..……………2 How to connect with camera and monitor..…3 Easy to record & playback……..… …………4 Set time and date………….………….………6 Manual record setting……………..…………7 Motion detection setting……………..………8 Set motion detect range and sensitivity…..9 Picture quality and TV mode set ting …..…...
Page 2: Keys On Dvr

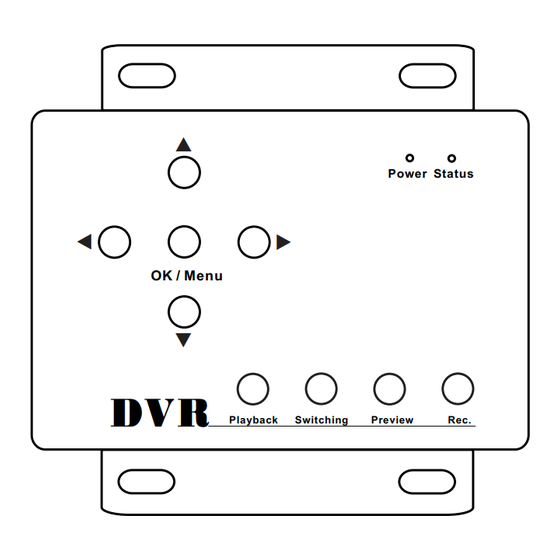

2 channel Mini DVR Manual 2 channel Mini DVR Manual Keys on DVR How to connect with cameras V-in 1 V-in 2 Audio in Audio out Video out ↑ Move up/Motion detect on ↓ ▲ Move down/Motion detect off Power Status ←...
Page 3: Easy To Record & Playback
2 channel Mini DVR Manual 2 channel Mini DVR Manual Easy to record & playback Insert an SD card into unit, the screen display as below: Press “Switching” to select the camera in main screen 1.When only 1 image in full screen, DVR only records 1 camera in video mode, frame 25f/ s;...
Page 4: Set Time And Date
2 channel Mini DVR Manual 2 channel Mini DVR Manual Manual Record setting 10. Format SD card: Choose “Yes” to format SD card. 1.Press ”OK” key enter into main menu and choose Please format the SD card on your first time use. choose Master Ch.
Page 5: Motion Detection Setting
2 channel Mini DVR Manual 2 channel Mini DVR Manual Motion detection settings 3.Prerecord: It helps DVR record between 2 clips. Generally 2-3 seconds can be saved in next clip 1. Press “OK” key enter into main menu and choose icon.
Page 6: Picture Quality And Tv Mode Setting
2 channel Mini DVR Manual 2 channel Mini DVR Manual Picture quality and TV mode setting Advanced Setting 1.Press "OK"key enter into main menu and choose Format Card icon. Beep Advanced Setting Set to Default Photo Quality Disk Info Movie Size File OverWrite FW Version TV Output...
Page 7: Pictures Preview Mode
2 channel Mini DVR Manual 2 channel Mini DVR Manual 6 Pictures preview mode Read files by USB cable Press “Preview” key under Playback mode.You can see 6 1.Connect DVR with computer by original USB cable.Turn different pictures on screen, and you can press “ ←” “→” on DVR, “MSDC”...
Page 8: Specifications
2 channel Mini DVR Manual 2 channel Mini DVR Manual 3. You can see many folders named by different date. Specifications For example： 10032600.The format is Year/ Month/ Date. AV Input 3 RCA ports (2 video+1 audio) AV Output 2 RCA ports (1 video+1 audio) Frame Pal:25f/s NTSC:30f/s...
