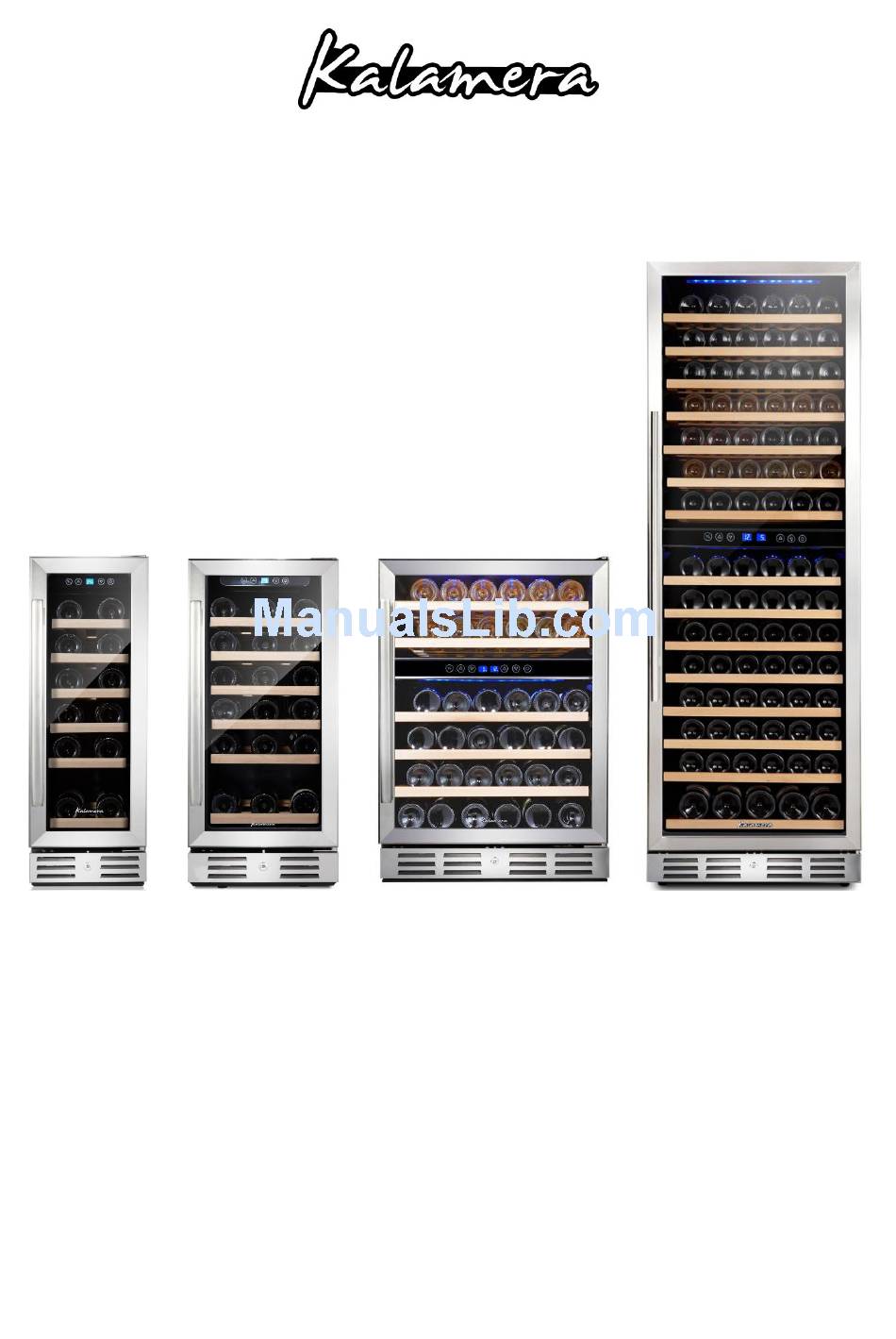

- Page 1 INSTRUCTION MANUAL Compressor Wine Cooler 18-Bottle/ 30-Bottle / 46-Bottle/ 157-Bottle MODEL: KRC-18SZB/ KRC-30SZB/ KRC-46DZB/ KRC-157DZB Please read carefully and follow all safety rules and operating instructions.
-
Page 2: Table Of Contents
Content 1. Your Wine Cooler ………………………………………………………………………………………… 3 2. Technical Dat a …………………………………………………………………………………………… 7 3. Safety Precautions…….……………………………………………………………………………………9 4. Important Precautions……………….……………………………………………………………………9 5. Installation Instructions………………………………………………………………………………….9 6. Operating Your Wine Cooler………………………………….…………………………………………..14 7. Care and Maintenance………………………………………………………………………………….14 8. Trouble Shootings………………………………………………………………………………………….15 - 2 -... -
Page 3: Your Wine Cooler
Your Wine Cooler KRC-18SZB 10. Body 1. NTC Point 11. Exhaust Window 2. Light Switch 12. Adjustable Legs 3. Temperature Display 13. Glass 4. Light 14. Door Seal 5. Celsius/Fahrenheit Switch 15. Handle 6. Temperature Setting 16. Water Box 7. Fan 17. - Page 4 KRC-30SZB 10. Body 1. NTC Point 11. Exhaust Window 2. Light Switch 12. Adjustable Legs 3. Temperature Display 13. Glass 4. Light 14. Door Seal 5. Celsius/Fahrenheit Switch 15. Handle 6. Temperature Setting 16. Water Box 7. Fan 17. Lower Hinge 8.
- Page 5 KRC-46DZB 11. Shelf 1. NTC Point 12. Body 2. Light 13. Exhaust Window 3. Fan 14. Adjustable Legs 4. Exhaust Window 15. Glass 5. Upper Zone Temperature Display 16. Door Seal 6. Lower Zone Temperature Display 17. Handle 7. Celsius/Fahrenheit Switch 18.

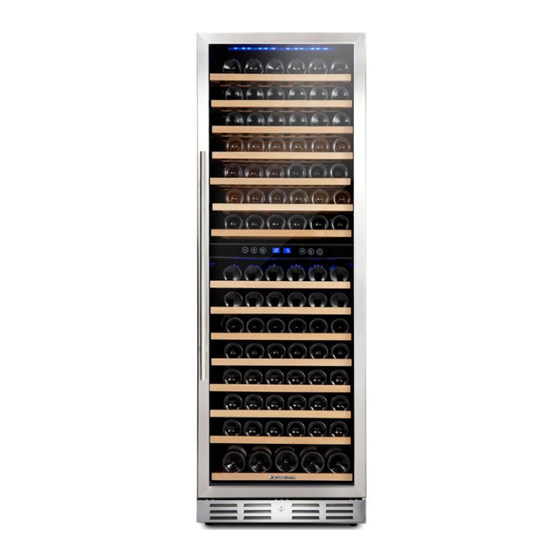

- Page 6 KRC-157DZB 11. Shelf 1. NTC Point 12. Body 2. Light 13. Exhaust Window 3. Fan 14. Adjustable Legs 4. Exhaust Window 15. Glass 5. Upper Zone Temperature Display 16. Door Seal 6. Lower Zone Temperature Display 17. Handle 7. Celsius/Fahrenheit Switch 18.
-
Page 7: Technical Data
Technical Data Model No. KRC-18SZB KRC-30SZB Capacity Voltage 110V 110V Rated Current 1.5A 1.5A Frequency 60Hz 60Hz Protection Class Climate Class T/ST/N/SN T/ST/N/SN Input Power Power Consumption(KW.h/24h) 0.51 KW.h/24h 0.51 KW.h/24h Temperature Control Range 40°F-66°F 40°F-66°F Net Weight 63.9 lbs 72.8 lbs... - Page 8 Electrical Circuit Diagram KRC-18SZB & KRC-30SZB Electrical Circuit Diagram KRC-46DZB & KRC-157DZB - 8 -...
-
Page 9: Safety Precautions
Safety Precautions To reduce the risk of fire, electrical shock, or injury when using your appliance, follows these basic precautions; PLEASE READ all instructions before installing, operating, or servicing the appliance. Danger and Warning: Failure to follow this safety statement will result in severe personal injury or death, ... - Page 10 Flip the door around so that the handle is on the right side and slip the door over the bottom hinge. Reattach the door by screwing the top hinge into the holes provided on the upper left surface of the unit. Make adjustments as necessary to be sure the door is aligned properly. Suggest cabinet dimension: KRC-18SZB - 10 -...
- Page 11 KRC-30SZB KRC-46DZB - 11 -...
- Page 12 KRC-157DZB Spare parts details: KRC-18SZB & KRC-30SZB & KRC-46DZB: Spare parts Picture Upper hinge To switch the door open from right. Bottom hinge To switch the door open from right. Screw *2 For the handle installation. - 12 -...
- Page 13 To cover the holes on the left front (KRC-18SZB & KRC-30SZB 2pcs, corner of the body. KRC-46DZB 3pcs) Water box (Only for KRC-18SZB and The water box is at the bottom inside KRC-30SZB.) the wine cooler. If you feel wine cooler inside is dry, you could have some water in it to increase humidity.
-
Page 14: Operating Your Wine Cooler
Operating Your Wine Cooler The Control Panel: KRC-18SZB & KRC-30SZB How to use the press-buttons on the Display Panel: To control the temperature, press UP or DOWN button. Each press would adjust the temperature by 1°C between 5~18°C or 1°F between 40~66°F. -
Page 15: Trouble Shootings
Trouble Shootings You can solve many common wine cooler problems easily, saving you the cost of a possible service call. Try the suggestion below to see if you can solve the problem before calling the service center. PROBLEM POSSIBLE CAUSE Wine cooler do not operate. - Page 16 To obtain service or information, please call 866-554-6688 or send email to service@kalamera.com Product contents and specifications may change without notice. Copyright © 2016 Kalamera Products www.kalamera.com - 16 -...
