Summary of Contents for Plug'n'Go SmartStyle DC01X2-N

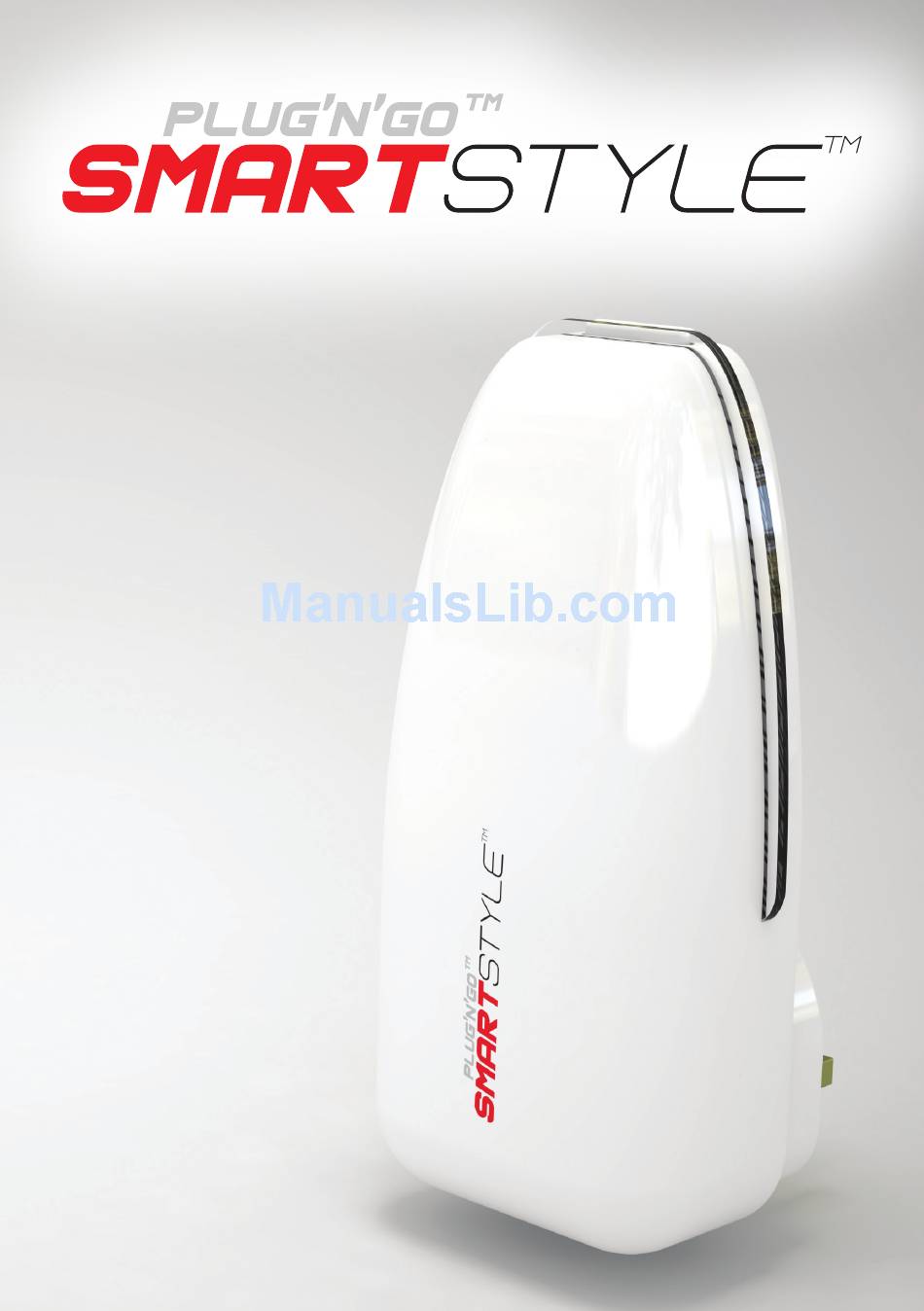

- Page 1 Digital Wireless Door Chime Models: DC01-N DC01X2-N...
-
Page 2: Table Of Contents
SmarTStyle™ Plug’n’Go™ Contents Introduction 03 - 04 Foreword Features Installing your SmartStyle™ Wireless Door Chime 05 - 06 Step 1 - Unpack your SmartStyle™ Wireless Door Chime Step 2 - Install the Door Chime Adaptor and Push Button Transmitter Using your SmartStyle™ Wireless Door Chime 07 - 08 Using the NiteLite™ Illumination Function How to Sync Door Chime Adaptors and Transmitters Troubleshooting 09 - 10 Frequently Asked Questions Technical Support Specifications WARNING FOR INDOOR USE ONLY Exposure to moisture may lead to faulty operation and risk of electric shock. -
Page 3: Introduction
SmarTStyle™ Plug’n’Go™ Introduction Foreword Congratulations on purchasing the new Plug’n’Go™ SmartStyle™ Digital Wireless Door Chime! This all new series of digital, wireless door chimes has been designed and developed by two of the industries leading engineers, right here at AEI headquarters. The objective was to create a range of door chimes with straight forward and easy to use functions using only the very best in components and production techniques. The result is a product featuring innovative functions and a stylish, modern design that will look great and work perfectly in any household. From the outset, it was a priority to make a product that worked straight out of the box, but in a reli- able manner that never fails to please. The answer was to use a 20 Bit digital data code chip set that utilises over 1 million code combinations, working in a similar way to the latest high performance car security systems. The new superheterodyne receiver technology, built in to every Plug’n’Go™ SmartStyle™ Digital Wire- less Door Chime as standard, further increases reliability and completely eliminates interference. This is due to its precision Phase Lock Loop (PLL) performance, whereas older, low cost super-regenerative technologies rely on Pulse Width Modulation (PWM). To provide the strobe and illumination functions, super bright Light Emitting Diodes (LEDs) have been used. These high tech LEDs consume a fraction of the energy used by conventional lighting methods, saving you money and reducing the impact on the environment. These are just some of the great features that make the Plug’n’Go™ SmartStyle™ Digital Wireless Door Chime range the industry leader. Please read the instructions carefully prior to installation Page 03... -
Page 4: Introduction
SmarTStyle™ Plug’n’Go™ Introduction Features • 100% Digital The system uses a high integrity digital code so there are no switches to set and the pack is ready to go straight from the box. Installation time can be as little as 3 minutes. • Polyphonic Sound Using an internal audio speaker a crystal clear chime sound is emitted when ever a visitor calls. The sound level is sufficient to be heard from one room to another. • NiteLite™ Illumination The built-in NiteLite™ Illumination function emits a cool decorative glow, ideal for night time use in stairways and hallways. Using high tech LEDs, it consumes a fraction of the energy used by more conventional lighting methods. Page 04 Please read the instructions carefully prior to installation... -
Page 5: Installing Your Smartstyle™ Wireless Door Chime
SmarTStyle™ Plug’n’Go™ Installing Your SmartStyle™ Wireless Door Chime Step 1 - Unpack your SmartStyle™ Wireless Door Chime All Plug’n’Go™ orders are computer weight checked when packed. However, it is a good idea to check that all kit contents are present before proceeding with the installation. 1x Push Button Transmitter 1x Mounting Plate 1x Adaptor (2x in Twin Pack) 3x Coloured Bezels Please read the instructions carefully prior to installation Page 05... -
Page 6: Step 2 - Install The Door Chime Adaptor And Push Button Transmitter
SmarTStyle™ Plug’n’Go™ Installing Your SmartStyle™ Wireless Door Chime Step 2 - Install the Door Chime Adaptor and Push Button Transmitter Follow these four simple steps to get your Plug’n’Go™ SmartStyle™ Digital Wireless Door Chime sys- tem up and running in no time. Plug the Door Chime Adaptor into an available The battery comes pre-fitted but you must remove mains socket in your desired room. You will hear the the plastic tab from the back of Push Button Trans- Chime sound to confirm that the Door Chime Adap- mitter to engage the battery contacts tor is receiving power. -
Page 7: Using Your Smartstyle™ Wireless Door Chime
SmarTStyle™ Plug’n’Go™ Using Your SmartStyle™ Wireless Door Chime Using the NiteLite™ Illumination Function The built-in NiteLite™ Illumination function emits a cool decorative glow, ideal for night time use in stairways and hallways. NiteLite™ Illumination Function Button Press the Function Button once to turn on the NiteLite™ Illumination. Press again to turn the Ni- teLite™ Illumination off. Please read the instructions carefully prior to installation Page 07... -
Page 8: How To Sync Door Chime Adaptors And Transmitters
SmarTStyle™ Plug’n’Go™ Using Your SmartStyle™ Wireless Door Chime How to Sync Door Chime Adaptors and Transmitters All Door Chime Adaptors and Push Button Transmitters included in this pack have been pre-synced at the factory. The following procedure should be used only to re-sync your system in case of er- ronous operation or if you wish to add more Door Chime Adaptors and/or Push Button Transmitters to the system. Press and hold the Function Button on top of the After 5 seconds you will hear a beep. Press the but- Door Chime Adaptor. Sync Mode is active between ton on every Push Button Transmitter you wish to sync to the Door Chime Adaptor, within the 15 5 and 20 seconds (15 seconds total) of continuously holding the Function Button. -
Page 9: Troubleshooting
SmarTStyle™ Plug’n’Go™ Troubleshooting Frequently Asked Questions Q. I cannot get a Push Button Transmitter to work. A. Make sure the battery tab has been removed prior to installation otherwise all Push Button Transmitters should be re-synced to the Adaptor(s). Follow the syncing procedure on Page 08. Q. What is the range performance? A. The range is typically 100 meters clear line of sight and this reduces by around 30% for every wall that the signal transmits through. Q. Will the chime work anywhere in my home? A. Yes but remember that it uses Radio Frequencies and these signals can pass through walls and ceilings just like a portable radio receiver but can be influenced by foil backed plasterboard and other unfriendly RF sources which can effect the range performance. -
Page 10: Technical Support
SmarTStyle™ Plug’n’Go™ Troubleshooting Technical Support AEI Security & Communications Ltd is dedicated to providing our customers with first class customer care and technical support. 1. Website www.aei.eu Free technical advice is available online 24/7 at our dedicated support web site: 2. Online Videos www.plugngo.co.uk Watch online Installation and Troubleshooting Video Guides at: 3. Email support@aei.eu Email our technical department directly at: 4. Live Chat Chat to one of our technical advisors online. See website for details. 5. Telephone Call 02071 931413. We have a dedicated helpline, open Monday to Friday, 9AM - 5PM. Mon to Fri, 9am to 1pm & 1.30pm to 5pm Page 10 Please read the instructions carefully prior to installation... -
Page 11: Specifications
SmarTStyle™ Plug’n’Go™ Specifications & Standards Specifications Door Chime Adaptor Frequency: 433.92 Mhz Receiver Receiver: Superheterodyne Protocol: 20 Bit Digital Data Code w/ 1.04 Million Code Combinations Clock: Crystal Speaker: 1”, 8 ohm, 0.5 Watt Sound Level: 75dB @ 1 Metre Push Button Transmitter Frequency: 433.92 Mhz Transmitter Clock: Surface Acoustic Wave Resonator Battery: A23 12v DC Alkaline Battery Life: Approximately 3 Years (Typical 2 presses per day) Standards Safety BS5733 (Including BS1363), EN61058-1, EN60065 EN55014-1, EN55014-2, EN61000-3-2, EN61000-3-3, EN61000-6-1, EN61000-6-3 R&TTE (Class 2), EN300220-2, EN301489-3 Please read the instructions carefully prior to installation Page 11... - Page 12 CW160611-8 ©2011 AEI Security & Communications Ltd. All rights reserved. Registered in England: 02831823 AEI Security & Communications Ltd Weslake Industrial Park Rye Harbour Road, Rye East Sussex TN31 7TE United Kingdom Plug’n’Go and SmartStyle are trademarks of AEI Security & Communications Ltd. w w w . p l u g n g o . c o . u k...
