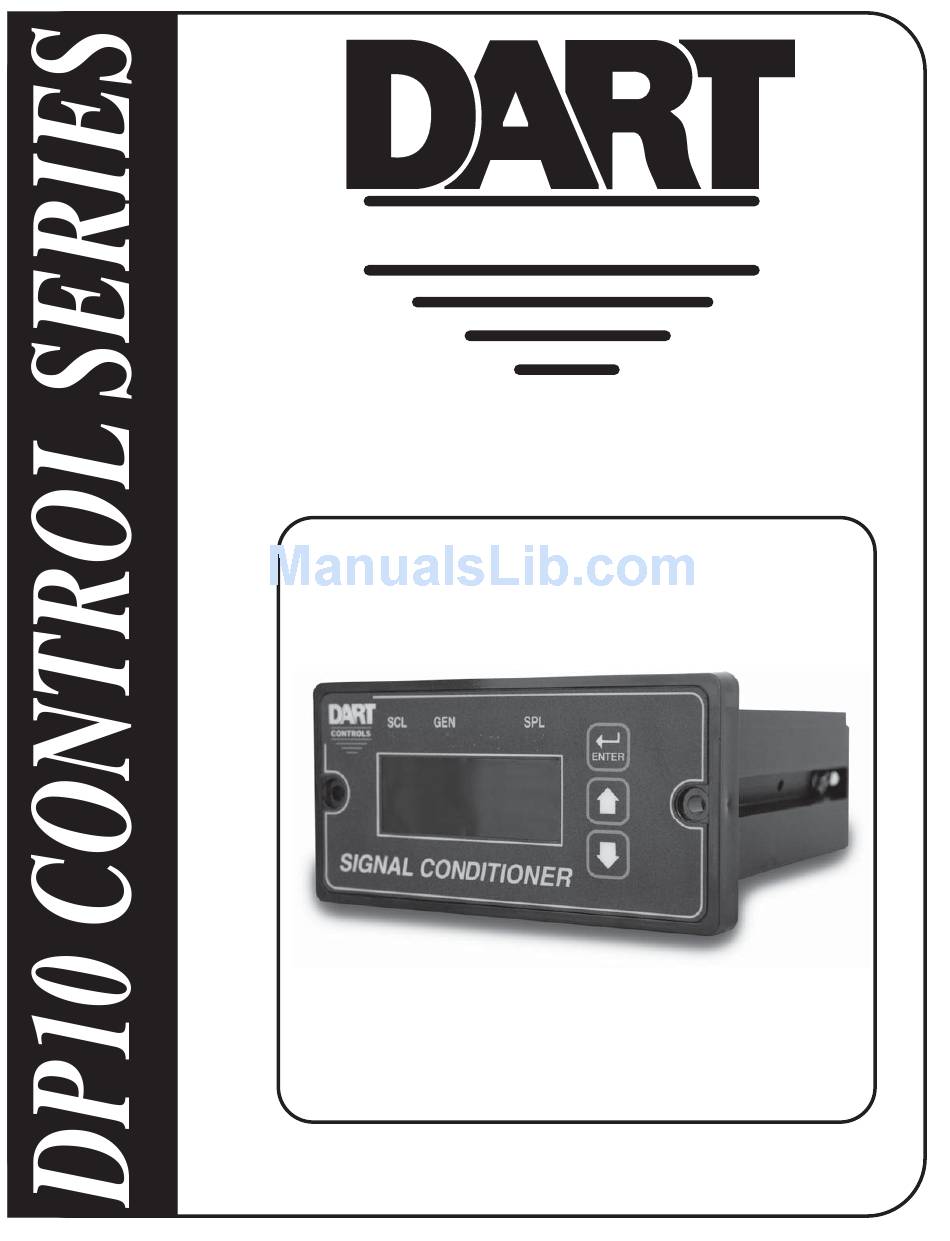

  • Page 1 CONTROLS Instruction Manual Signal Conditioner/Generator Phone (317) 873-5211 P.O. Box 10 Fax (317) 873-1105 5000 W. 106th Street www.dartcontrols.com Zionsville, Indiana 46077 LT168 (0318) A-5-4023E...

  • Page 2: Table Of Contents

    Table of Contents Introduction ............................2 General Features ..........................2 Models & Options ..........................2 Specifications ........................... 3 DP10 Electrical ..........................3 DP10 Mechanical ......................... 3 Environmental ..........................3 Mechanical Installation ........................4 Exploded Panel View ........................4 Cut-out and Mounting Dimensions ....................4 Installation &...

  • Page 3: Introduction

    The DP10 is a panel mounted, multi-purpose signal conditioner that allows the operator easy access to make adjustments to system operations. The DP10 may be used in OEM equipment designs, plant operation or laboratory applications. Most other signal conditioners are DIN rail mounted inside a panel and designed to be set up once - many applications require frequent adjustments to meet application needs.

  • Page 4: Specifications

    Housing Material ............................Aluminum Length (Required Panel Depth) ....................4.625”, 117.48mm Faceplate Width ........................... 4.539”, 115.29mm Weight DP10 ........................0.900 lb, 14.4 oz, 408.22g Environmental Operating Temperature Range ..................-10C to 45C (14F to 113F) Operating Humidity Range ..................... 95%, non-condensin...

  • Page 5: Mechanical Installation

    GASKET FACING THE CUSTOMER MOUNTING PANEL MOUNTING PANEL) (HOLE CUT-OUT FOR CONTROL HOUSING APPROXIMATELY 3.622" WIDE BY 1.770" HIGH) DP10 CONTROL SUPPLIED WITH EACH CONTROL: 1) GASKET 2) (2) 6-32 X 3/4 PANHEAD BLACK OXIDE STAINLESS SCREWS 3) (2) #6 NUT WITH LOCKWASHER...

  • Page 6: Installation & Diagrams

    Installation & Diagrams P3 Terminal Block Hook-Up Diagram P3-1 AC INPUT 2 AMP P3-2 85-265VAC AC INPUT P3-3 SIGNAL IN (-) DP10 P3-4 SIGNAL IN (+) P3-5 V-OUT (-) P3-6 V-OUT (+) P3-7 4-20 OUT (-) P3-8 4-20 OUT (+)

  • Page 7: Basic Operating Information

    SPL: The DP10 is in Set Point Lock; this effectively disables any changes until IN1/IN2 input levels change according to the functional configurations. Various modes are available with SPL, please see...

  • Page 8: How To Change A Parameter's Value (The Short Story)

    How to Change a Parameter's Value (The Short Story) 1. Hold down the Enter button until Parameter-Selection Mode is entered (Parameter 'P 0' Displayed) 2. Using the Up and Down buttons, select the desired parameter number to view or edit 3.

  • Page 9: Device Configuration

    There are three Modes of Operation for the DP10, established by the JP1, JP3, and JP4 jumper settings: 1. JP1 - If the DP10 is receiving a signal to be Scaled or Converted, this setting defines the input signal type (0-5Vdc or 4-20mA Current) (Optional high input voltage or PWM).

  • Page 10: Software Parameters

    Description (units) Default Settings Selecting this item exits to Running Mode Read-Only Parameters Model Number 90 – DP10 Unit Software Build 1 – 9999 Hardware Version 1 – 9999 Serial Number – Major (reserved) Serial Number – Minor (reserved) General Setup Generate / Scale 1 –...

  • Page 11: Parameter Descriptions

    Parameter 1 – Model Number (Read Only) This is a number which represents the base model number for the product. The model code for the DP10 is 90. Parameter 2 – Software Build (Read Only) The software build is a code which identifies the software version of the unit.
  • Page 12 For example, setting this parameter to 25 will configure the DP10 to output 2.5% when the user adjusts the display value to equal the display minimum, parameter 20. See parameters 20 - 22 and the application examples for additional information.
  • Page 13 When the IN1 input is at an electrically high (+5V) state or allowed to float disconnected, the DP10 will force its output to 0%. Once the IN1 input returns to an electrically low state or wired to the unit's common, the output will once again correspond to the display value.
  • Page 14 When the IN2 input is at an electrically high (+5V) state or allowed to float disconnected, the DP10 will force its output to 0%. Once the IN2 input returns to an electrically low state or wired to the unit's common, the output will once again correspond to the display value.

  • Page 15: Troubleshooting

    100% of display with the user hardware connected correctly to the V-out terminals. If Parameter 10 Value = 1, then the DP10 is in Generate Mode and there will be no output change for a change in Signal Input only for Keypad entry.
  • Page 16 COD or Credit Card (Master Card/Visa/American Express). This information is required before work will begin. If you have an account with Dart your order will be processed according to the terms listed on your account. Products with Serial Number date codes over 5 years old will automatically be deemed Beyond Economical Repair (BER).
