Shenzhen PUAS Industrial Co., Ltd PUS-OHD330 User Manual

Video conference camera, pus-ohd300 series

Advertisement

Quick Links

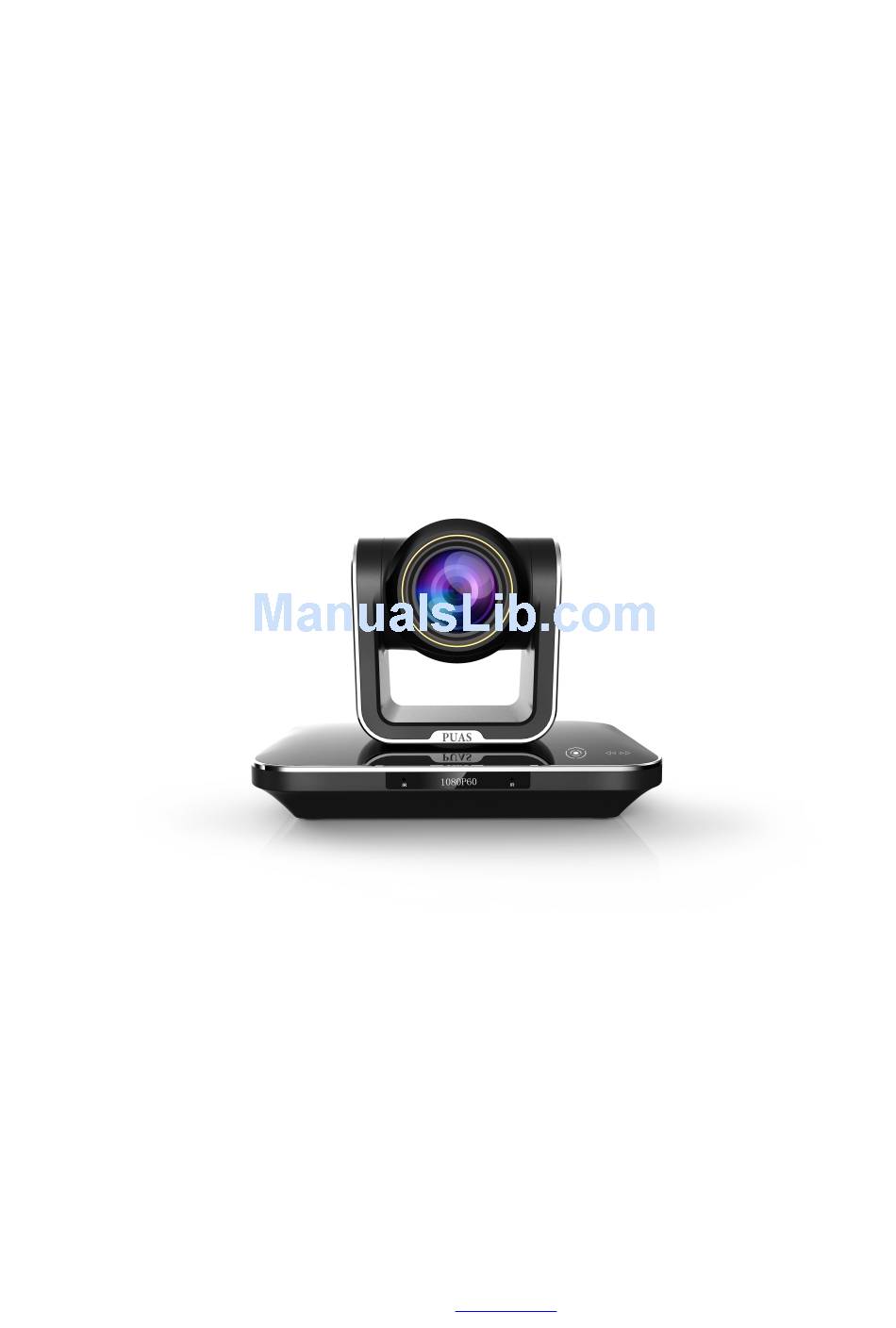

Video Conference Camera

User Manual

Shenzhen PUAS Industrial Co., Ltd
vc@szpuas.com
www.szpuas.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PUS-OHD330 and is the answer not in the manual?

Questions and answers

Summary of Contents for Shenzhen PUAS Industrial Co., Ltd PUS-OHD330

  • Page 1: User Manual

    Video Conference Camera User Manual Shenzhen PUAS Industrial Co., Ltd vc@szpuas.com www.szpuas.com...
  • Page 2: Table Of Contents

    CONTENT 1. Precaution__________________________________________________________________________- 1 - 2. Performance________________________________________________________________________ - 2 - 2.1 Dome Parameter________________________________________________________________- 2 - 2.2 Camera Parameter______________________________________________________________ - 2 - 2.3 Technical Specification___________________________________________________________ - 3 - 3. Technical Specification________________________________________________________________ - 5 - 3.1 Camera Interface_______________________________________________________________ - 5 - 3.2 Dimension_____________________________________________________________________- 6 - 3.3 Remote Controller Introduction____________________________________________________ - 7 - 4.
  • Page 3: Precaution

    1. Precaution  Electrical Safety Confirm country and local electrical safety standard when using or installing the product. The product itself has no power switch. Please stop power supply or plug out power socket when it is not in good working . Video wire and control wire should be insulated and individual connected, can not mix-up with other wires.
  • Page 4: Performance

    2. Performance 2.1 Dome Parameter Electricity: Communications: 2400\4800\9600\19200\384 Power supply DC12V Baud rate ( RS232) 00bps Power Protocol Visca\ PelcoP/D consumption Decoder Built in Address setting 1~255 Operation: Environmental: operation Pan rotation ±173° 0℃~ +50℃ environment Environmental Tilt rotation -30°~+90° 0~95% No-condensation humidity Rotation speed...
  • Page 5 Preset Pan Rotation Angle ±173° Pan/Tilt Speed 0.8~100°/s Communication Interface RS-232, RS-485 PTZ Control Protocol Sony VISCA and PELCO D/P Frame Rate 1080P60/59.94/50, 1080P30/29.97/25, 1080I60/59.94/50, 720P60/59.94/50, 720P30/25, NTSC, PAL Video output port 3G-SDI, HD-VLC, DVI, YPbPr, CVBS Wide Dynamic Range Off/On/Auto IRIS Control Auto/Manual...
  • Page 6  Features  With Fast, wide Pan/Tilt functions.  With RS-232C communication and Visca protocol, can control video conference camera by terminal equipment and computer.  Improved quality and definition of digital zoom image by the newest development digital signal processor (DSP). ...
  • Page 7: Technical Specification

    3. Technical Specification 3.1 Camera Interface 1, Len 7, DVI-I output 2, Standby Light 8, 3G-SDI/HD-VLC output 3, OLED 9, RS485 output 4, Power 10, RS232 IN 5, IR receiver 11, RS232 OUT 6, Touchscreen Panel 12, DV 12V POWER - 5 -...
  • Page 8: Dimension

    3.2 Dimension The Size for High definition video conference camera is as below: - 6 -...
  • Page 9: Remote Controller Introduction

    3.3 Remote Controller Introduction 1. POWER 2. [MENU] : Enter/Exit the OSD menu 3. [CAMERA SELECT]: Camera ID select, select the target camera you need. 4. [FAST T]: Swiftly adjust the lens to focus the nearby object 5. [SLOW T]: Slightly adjust the lens to focus the nearby object 6.
  • Page 10: Operation Instruction

    4. Operation Instruction 4.1 Camera ID Select Select the target camera ID (from No.1 to No.3) When the camera ID is beyond 3, select No.1 will enable you to operate the camera. 4.2 Pan/Tilt Control Turn up Press Turn down Press Turn left Press Turn right Press Reposition Press:[HOME]button...
  • Page 11  Back light imaging Strong background ray can make back-lighting objects engender shadow press [BRIGHT+] to activate the back light mode. Quit the back light mode press [BRIGHT-] button.  Zoom Press the four [ZOOM] buttons to zoom the target object - 9 -...
  • Page 12: Preset Setting

    4.4 Preset Setting 1、Save the preset press [PRESET] button first ,then press any of the numbers you need (from1-9) to save the preset. Notice:You can save at most 9 presets through the remote controller. 2、Call the preset press the saved preset number from1-9 will activate the corresponding preset position.
  • Page 13: Camera Setting

    5. Camera Setting 1. Operate remote controller, press MENU enter OSD menu; 2. Press the arrow keys to select the menu, press left and right button to set the camera. 5.1 Camera [EXPOSURE] Setting Operate remote controller, press MENU enter OSD menu; Press arrow keys to move to EXPOSURE and then press right button to enter sub menu, as the right picture;...
  • Page 14: Camera [Picture] Setting

    5.3 Camera [PICTURE] Setting Operate remote controller, press[MENU] enter OSD menu, Press arrow keys to move to [PICTURE]and then press right button to enter sub menu, as the right picture  [BRIGHT] : 0-14  [CONTRAST] : 0-14  [SHARPNESS] : 0-15 ...
  • Page 15: Noise Reduction

    5.5 Noise Reduction Operate remote controller, press [MENU] to enter OSD menu, press the arrow keys to move to [NOISE REDUCTION] , press right button to the sub menu; as the right picture shown:  [2D NR] : ON/OFF  [3D NR] :ON/OFF 5.6 System Setting Operate remote controller, press [MENU] to enter OSD menu, press the arrow keys to move to[SYSTEM SETTING], press right button to the sub menu;...
  • Page 16: Installation Instruction

    6. Installation Instruction 1.To drill 4 M4 screw hole in ceiling 3. Hang the discreteness made in step2 (see above sketch), use 4pc STP4 16 on the installation board, showed as cross screws to fix the upside-down the below sketch. installation board of video conference camera on ceiling.
  • Page 17: Maintenance Service Terms

    7. Maintenance Service Terms 7.1 Range of Warranty  The product will be maintained free for one year.  The product will be obtained the free maintenance service if the same malfunction appears again within three payable maintenance months.  Malfunction of products caused by force majeure (such as war, earthquake, lightning strike and so on ), abuse, non-standard operation, change of construction, non-normal wear or accident are non-free of warranty.;...

This manual is also suitable for:

Pus-ohd320sPus-ohd320
