Sound Choice Pro Audio CP8 User Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
The CP8 communication to the DPA880T is by RS485. +1 and -2 are only required pins from the
RJ45
Power supply DC +12V is required to power the CP8 (not supplied with the panel)
CP8 you can set user defined as either Master Mode or Zone ModeUser. The following instruction
explains the process

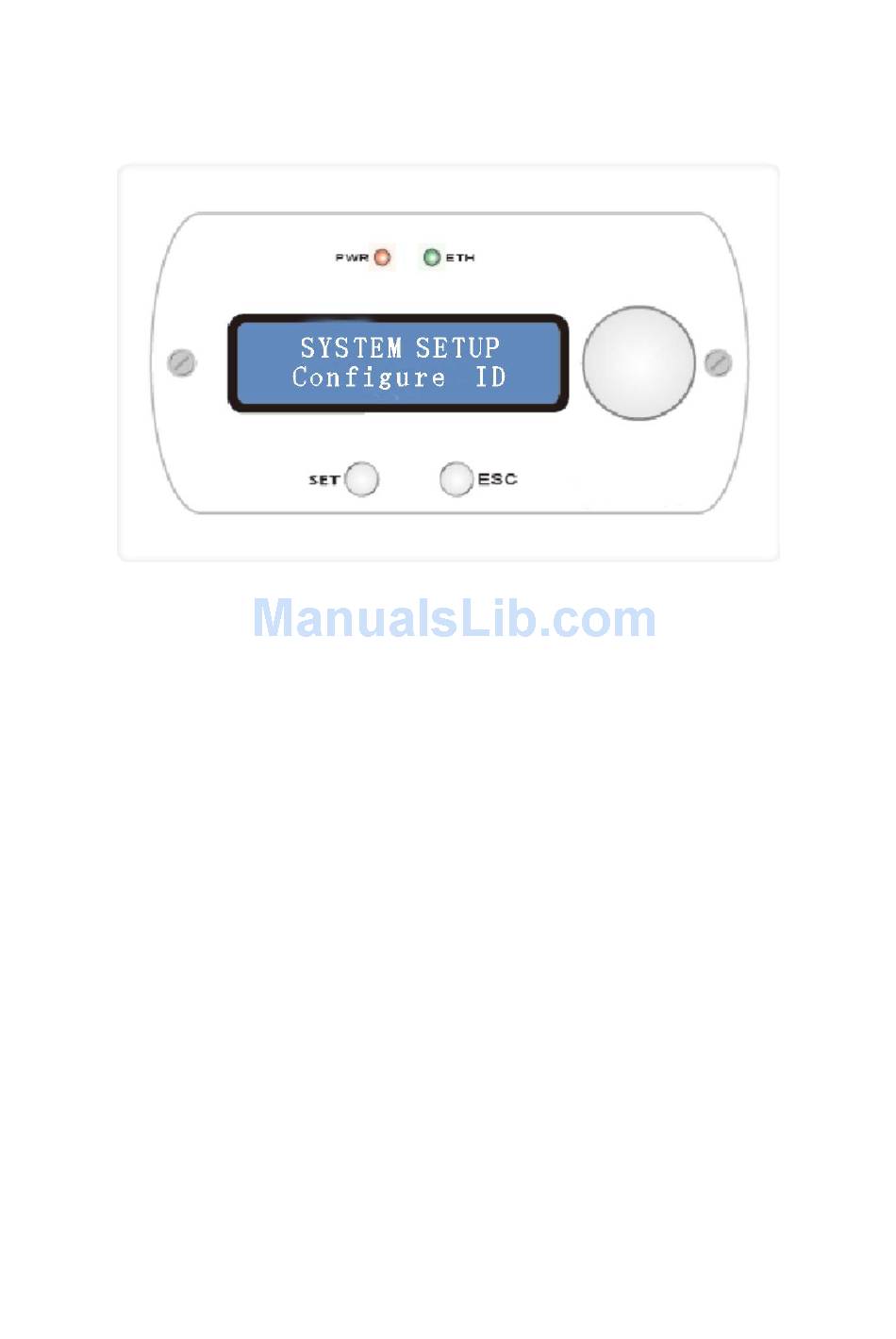

− "Set" button is used to access the various menus and to confirm
− "Esc" button is used to exit from the menus
− "Encoder" The large rotary encoder is used to enter and exit the standby mode if the key is
pressed for around 5-6 sec. Or with the single press allows setting the steps for changing
the values of Gain and Volume (Gain =-127dB to + 12dB; Volume =-127dB to + 18dB)
− The Encoder is also used to move between the various menus and changing the values of
the parameters.
− LCD display 2 x 20 alphanumeric
− Power ON Led: when lit indicates that the system is powered
− Eth Led: when lit indicates that the CP8 is communicating with the DPA880T
User Manual
CP8
Rev1.0
Connection type: RS-485

Power Supply

To programme CP8:

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CP8 and is the answer not in the manual?

Questions and answers

Summary of Contents for Sound Choice Pro Audio CP8

  • Page 1: Power Supply

    User Manual Rev1.0 Connection type: RS-485 The CP8 communication to the DPA880T is by RS485. +1 and -2 are only required pins from the RJ45 Power Supply Power supply DC +12V is required to power the CP8 (not supplied with the panel) To programme CP8: CP8 you can set user defined as either Master Mode or Zone ModeUser.

  • Page 2: System Setup Mode

    DPA880T) • Configure standby: with this menu you can configure the auto stand-by mode. In this mode if the CP8 parameter is set to ON then after 40 sec of no activity the CP8 automatically goes into standby (display off) •...
  • Page 3 After selecting the Configure Mode by using the Encoder SYSTEM SETUP Configure Mode Pressed the SET button then via rotating the Encoder you can select between Master and Zone Configure Mode Configure Mode Mode = Master Mode = Zone Press the SET button to confirm and exit, press ESC to cancel and exit SYSTEM SETUP Configure Mode After you have selected the Configure ID menu using the Encoder...
  • Page 4 • Load Program: Through this menu you can load anyone of the 6 presets • Info: Via this menu the model, version and ID set is displayed • Lock: Through this menu it is possible to Lock the CP8 1. SELECT INPUT...
  • Page 5 Eth led will turn on with the system sends a message to DPA880T asking for the current status of mute on the selected input. If the CP8 is not connected to the DPA880T or the ID is not correct then the display will show the following message...

  • Page 6: Select Output

    Eth led will be turned on because the system sends a message to DPA880T asking for the current status of the gain on the selected input. If the CP8 is not connected to the DPA880T or the ID is not correct then the display will show the following message...
  • Page 7 Eth led will be turned on because the system sends a message to DPA880T asking for the current status of the Mute on the selected Output. If the CP8 is not connected to the DPA880T or the ID is not correct then the display will show the following message...

  • Page 8: Load Program

    This is because the extra presets are associated with special events and these have priority on preset 1 - 6, recallable from front-panel using the buttons 1 - 6. If the CP8 is not connected to the DPA880T or the ID is not correct then the display will show the...
  • Page 9 Device not connected and after 2 sec. The Eth led will be turned off and the system will go back to the menu CP8 CTRL PANEL Load Program If communication is successful, then the display will show the program that currently uploaded on DPA880T (eg.

  • Page 10: Zone Mode

    Press the SET button or the ESC key to return to the menu CP8 CTRL PANEL Info 5. LOCK CP8 CTRL PANEL Lock After pressing the SET button, the system asks for confirmation Lock CP8 Are you sure? If you pressed Esc returns you to the menu...
  • Page 11 Eth led will turn on because the system sends a message to DPA880T asking for the current status of the Routing of the Zone If the CP8 is not connected to the DPA880T or the ID is not correct then the display show the following message...

  • Page 12: Select Zone

    Eth led will turn on because the system sends a message to DPA880T asking for the current state of mute on the Zone selected. If the CP8 is not connected to the DPA880T or the ID is not correct on then the display will appear the following message...
  • Page 13 Eth led will turn on because the system sends a message to DPA880T asking for the current status of the volume for the selected zone. If the CP8 is not connected to the DPA880T or the ID is not correct then on the display will appear the following message...
  • Page 14 Using Encoder it is possible to choose the volume steps between 0.1 dB or 1dB Press the Esc key to return to the start screen Zone 2 Volume 3. INFO CP8 CTRL PANEL Info After pressing the SET button Model:CP8 ID:01 Version: 1.0.0...
  • Page 15 ESC and SET for around 5-6 sec. CP8 Connection Details RS485+ Black: RS485- Red:+12V RS485 RS485- RS485+ RS485 RS485...
  • Page 16 • 2 The ID on CP8 must be set the same as the DPA880T.
