Pegasus CCTV PCCMINI-WDR28 User Manual

Ultra Wide Dynamic Mini Camera
User's Manual
DESCRIPTION
SW series Ultra WDR cameras are new CCTV cameras which adopt
Pixim'sinnovative "SEAWOLF" image sensor chip based on Digital
Pixel System ® technology. The resolution is up to 690TVL-E and
the industry-leading wide dynamic range is up to 120dB. This WDR
ensures brilliant image quality under any lighting environment. The
image and color quality is also excellent in low illumination environ
-ments. This camera series is a ultra wide dynamicrange camera in
the real sense using digital sampling which can't be paralleledby
average wide dynamic range cameras using older generation CCD
imagers. The application of 3D digital noise reduction technology
ensures higher S/N, which efficiently reduces the digital storage and
transmission data saving system cost. Fashionable and professional
exterior design and special all-in-one all directional bracket, makes
round-the-clock surveillance easy and convenient.
Average camera with BLC off Average camera with BLC on
PRECAUTIONS
1. Use the Appropriate Power Supply
The input power will be DC12V . Be sure to connect it to the
appropriate power. Wrong connection may cause malfunction and
damage to the video camera.
2. Do not attempt to disassemble the camera.
To prevent electric shock, do not remove screws or covers. There
are no user serviceable parts inside. Ask a qualified service person
for servicing.
3. Handle the camera with care.
Do not abuse the camera. Avoid striking, shaking, etc. The camera
could be damaged by improper handling or storage.
4. Do note use strong or abrasive detergents when cleaning the
camera body
Use a dry cloth to clean the camera when dirty. In case the dirt is
hard to remove Use a mild detergent and wipe gently.
5. Do not put the camera in a place with interference
When this camera is installed near the equipment like wireless
communication device which emits strong electromagnetic field,
some irregularity such as noise on monitor screen may happen.
Ultra Wide Dynamic Range camera
FEATURES
SEAWOLF Image Sensor
This camera adopts innovative DPS(Digital Pixel System) image
sensor and image processing technology. The sensor picks up details
from each pixel based on hundreds of samples per video frame. vs
CCD's limited exposures, to ensure wider dynamic range than isposs
-ible with analog CCD. The image quality is even brilliant under
extreme lighting conditions.changeable lighting condition.
Ultra Wide Dynamic Range
The captured wide dynamic range is 102dB typical and can reach
120dB maximum.
High Effective Resolution
Image resolution as high as 690TVL-E, offering enhanced horizontal
and vertical resolution useable in existing as well as new CCTV
systems.
3D Noise Eliminating Technology
Adopts Pixim fully digitalized 3D noise reduction technology to
minimize noise, extending DVR storage by 30%+.
Lower Illumination Working Capability
0.1Lux low illumination (IR OFF)

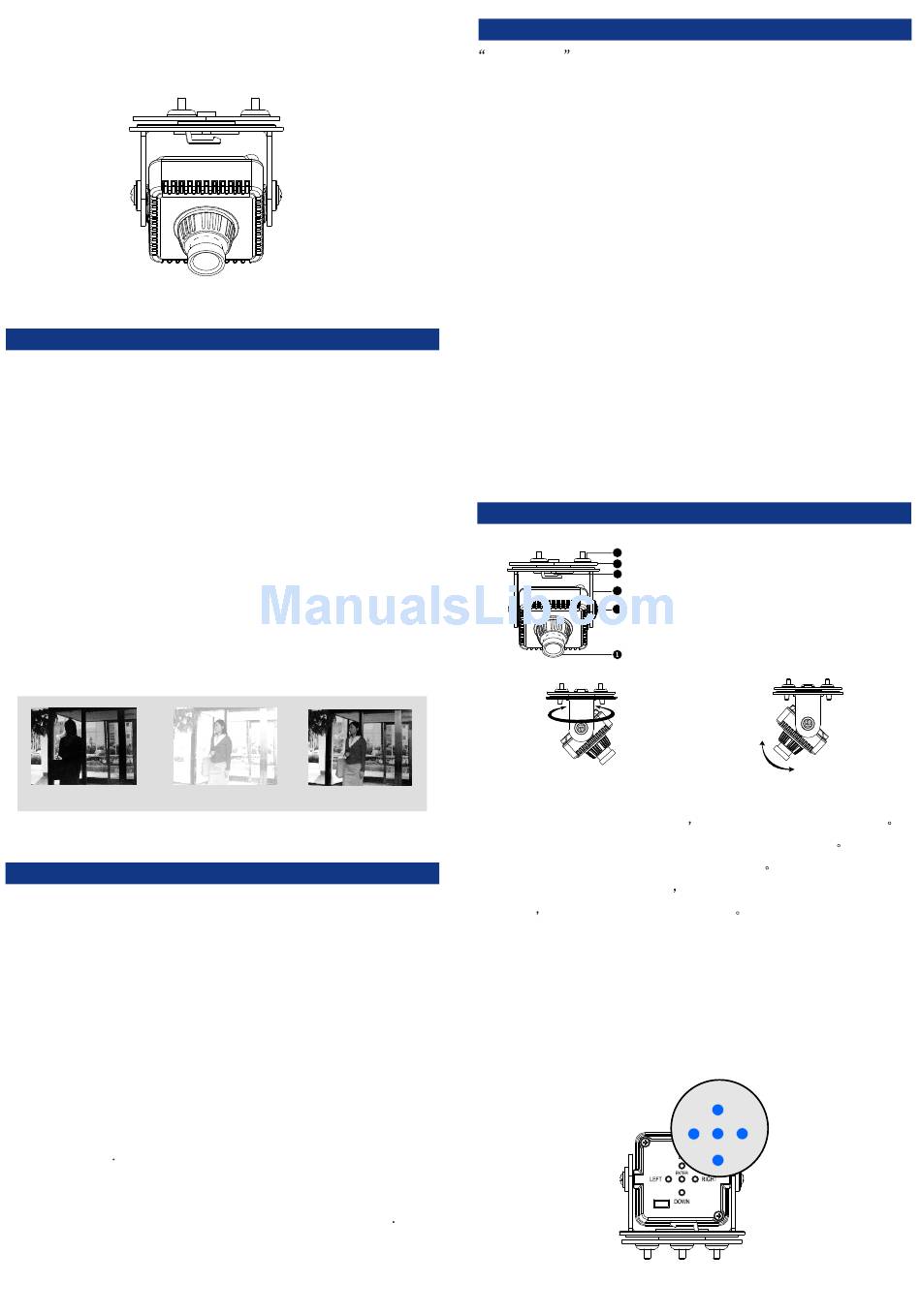

PARTS INSTRUCTION
1.lens
6 6
5 5
2.adjustment acrew
4 4
3.bracket
3 3
2 2 4.bracket retaining screw
5.installation panel
6.retaining screw hole on installation panel
camera horizontal angle adjustment
1.loose bracket retaining screw, take off the installation panel
2.fix the installation panel by screw to the place needed
3.install the bracket to the installation panel
4.loose the adjustment screw, adjust the vertical and horizontal
angle then fix the adjustment screw
OSD Menu Setup
ENTER: Enter Menu or Select Menu
UP/DOWN: This button is used to move the cursor upward or
downward.
LEFT/RIGHT: This left or right button is used to move the cursor
horizontally or change parameter.
OSD Menu Operation
camera vertical angle adjustment
Up
Left
Enter Right
Down
