LTE Router IGW/936-L
Hardware Reference
SSV Software Systems GmbH
Dünenweg 5
D-30419 Hannover
Phone: +49 (0)511/40 000-0
Fax:
+49 (0)511/40 000-40
E-mail: sales@ssv-embedded.de
Web:
www.ssv-embedded.de
with eSOM/3517
Document Revision: 1.5
Date: 2017-03-17

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the IGW/936-L and is the answer not in the manual?

Questions and answers

Summary of Contents for SSV Software Systems IGW/936-L

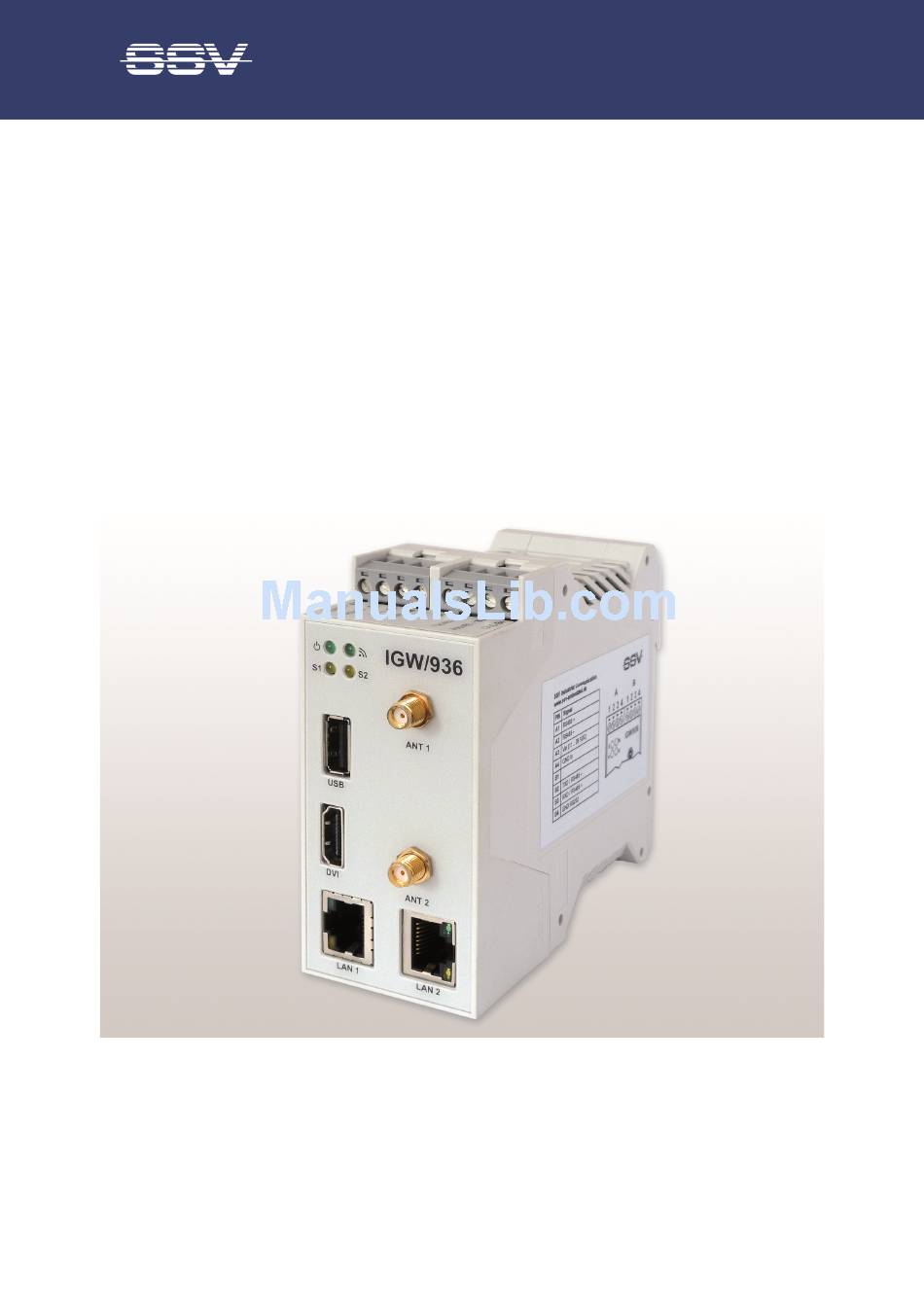

  • Page 1 LTE Router IGW/936-L with eSOM/3517 Hardware Reference SSV Software Systems GmbH Dünenweg 5 D-30419 Hannover Phone: +49 (0)511/40 000-0 Fax: +49 (0)511/40 000-40 E-mail: sales@ssv-embedded.de Document Revision: 1.5 Web: www.ssv-embedded.de Date: 2017-03-17...

  • Page 2: Table Of Contents

    LTE Router IGW/936-L – Hardware Reference CONTENT 1 INTRODUCTION ........................ 3 1.1 Safety Guidelines ........................3 1.2 Conventions ..........................3 1.3 Main Applications ........................3 1.4 Features and Technical Data ....................4 2 OVERVIEW ........................6 3 PINOUTS ..........................7 3.1 10/100 Mbps Ethernet Interface LAN1 ..................

  • Page 3: Introduction

    LTE Router IGW/936-L – Hardware Reference INTRODUCTION This document describes the basic hardware components of the LTE Router IGW/936-L. Safety Guidelines Please read the following safety guidelines carefully! In case of property or personal damage by not paying attention to this document and/or by incorrect handling, we do not assume liability.

  • Page 4: Features And Technical Data

    LTE Router IGW/936-L – Hardware Reference Features and Technical Data Processor Manufacturer / Type Texas Instruments AM3517 32-bit ARM Cortex-A8 SoC (eSOM/3517) Clock speed 600 MHz Memory 256 MB SDRAM Flash 1 GB NAND memory, 8 MB NOR memory Storage media...
  • Page 5 LTE Router IGW/936-L – Hardware Reference Electrical Characteristics Power supply 12 .. 24 VDC (typ. 24 VDC) from external power supply Power consumption < 6 W Mechanical Characteristics Protection class IP20 industrial case for 35 mm DIN-rail mounting Mass < 270 g...

  • Page 6: Overview

    LTE Router IGW/936-L – Hardware Reference OVERVIEW Figure 1: Overview LTE Router IGW/936-L D o c u m e n t R e v i s i o n 1 . 5...

  • Page 7: Pinouts

    LTE Router IGW/936-L – Hardware Reference PINOUTS 10/100 Mbps Ethernet Interface LAN1 The LAN1 interface offers one green LED which is on when there is a LAN link established and blinks when there is traffic. The yellow LED is not connected.

  • Page 8: Usb 2.0 Host Port

    LTE Router IGW/936-L – Hardware Reference USB 2.0 Host Port Pin Name Function VCC5 5 VDC Power Output DATA- USB Host - DATA+ USB Host + Ground Table 5: Pinout USB host port DVI/HDMI Interface Pin Name Function DVID5 DVI Data Bit 5...

  • Page 9: Led Functions

    LTE Router IGW/936-L – Hardware Reference LED Functions Description Flash Power No Power Power On Wireless Always Off System Not ready Booting Ready Modem/VPN Connecting Ready Table 1: LED functions The LED S2 shows the modem state by different flashing provided the modem is used.

  • Page 10: Sim Card

    LTE Router IGW/936-L – Hardware Reference SIM CARD The internal SIM card of the IGW/936-L can be changed through the slot on the backside. To remove the SIM card just push it gently with a screw driver until you hear a soft "click".

  • Page 11: Helpful Literature

    Information in this document is provided ‘as is’ without warranty of any kind. Some names within this document can be trademarks of their respective holders. © 2017 SSV SOFTWARE SYSTEMS GMBH. All rights reserved. D o c u m e n t R e v i s i o n 1 . 5...
