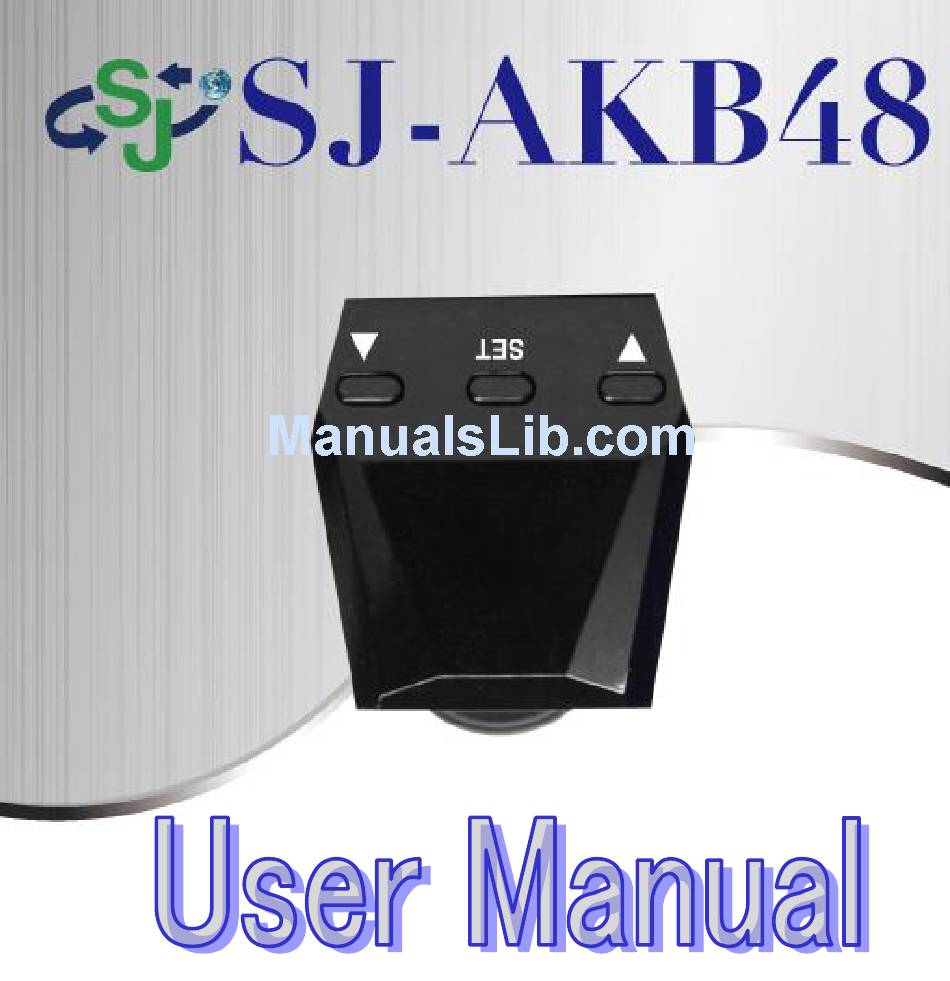

Summary of Contents for Sheng Jay Automation Technologies SJ-AKB48
- Page 3 Warranty Service Name Model numbers SJ-AKB48 Tracking Number the date of purchase Mobile (MM/DD/YYYY) Address E-Mail sale agent stamp...
- Page 4 Thank you for purchasing SJA’s products and we wish you have the best consumer product experience ever. For customer's right, please complete the date of purchase and the other information so that one year free service will be covered. ◎ Warranty period: 1 year as of the purchase date ◎...
- Page 5 ◎ Any damage caused by misuse of users shall not be covered by the warranty hereof. ◎ This warranty against damage the book like to have losing, not to reissue, asks respectfully to make satisfactory the preservation.
- Page 6 Catalog Appearance……………………………………………5 Specification ………………………………………….7 Introduction ………………………………………….8 Specification ………………………………………….7 System setting ……………………………………….9 Self-created coordinate………………………..15 Package………………………………………………..21 Terms and conditions………..………………...22...
- Page 7 Appearance...
- Page 8 Appearance introduction Press(1 second) Hole(3 second) Volume down Play mode setting self-created coordinate Function setting Volume up Radar setting (optional) MMXC external antenna USB setting and input power LED screen display speaker hole...
- Page 9 magnet fixing bracket Specification 5.0V(300mA) Power voltage 1.5W Speaker output U-Blox 50Channel Satellite amount -160dbm Sensitivity < 1.5s Soft boot < 34s Cold boot...
- Page 10 54.5 (L)x 58.5(W) x 21(H) mm Size Weight Instruction Power on 1-1 LED panel test, panel light on 1-2 Voice report 1-3 Displaying coordinates, the version is XXXX now. 1-4 Driving mode display: default setting :【safety driving speed limit mode】 1-5 Radar sensitivity display 【default setting:...
- Page 11 high】 Satellite condition 2-1When the satellite connects successfully, it would announce “Have a nice trip.” 2-2 The 【:】on the LED panel blinking indicates satellites connected ,and the E-compass shows the current moving direction. Lost the connection with satellites 【:】 on panel steady light on ,and the E-compass flashes clockwisely.
- Page 12 System Setting 1. .System setting selection. Seven modes can be used.
- Page 13 ◎ Press 【SET 】 3 seconds to get in function selection mode, then press 【SET 】 1 second to go next function. To exit the function selection mode, press 【SET 】 for 3 seconds or waiting for 3 seconds after setting 1-1 Speeding setting Setting range from 0 KM to 120KM.
- Page 14 speeding than 100 km, the system will automatically alert speeding warning, until the vehicle speed is less than 100 km. 1-3 Speed Adjustment The settings range from 0-20 km, the default value is 5 kilometers. When the GPS speed and car speed is inconsistent, check the error average value then adjust the speed until consistent with the speed of the vehicle.
- Page 15 alert the user the types of speed camera, the speed limit of the road and distance count down. Once the car is over speed, device alert "dang" sounds until car speed is not over the speed limit. ◎ Voice alert mode: When the car approaches the speed camera system ,voice alert the user the types of speed camera , the speed limit of the road and distance count down...
- Page 16 1-5 Self-define coordinates Maximum storage is 512 sets. User can save or delete the self-define coordinates. 1-6 The bright mode setting. The default setting is at 7 1-7 Somber mode setting. The default setting is at 6 PM. 3. Driving mode...
- Page 18 ▲ Press【▼】key for 3 seconds to enter driving mode 2.1 Safe driving speed limit mode Provide speed camera, and distance countdown warning. Moreover, device provides advance warning about accident-prone area, shopping malls, schools, gas stations, and toll station when car approach them. Allow users to have more info of road conditions.
- Page 19 stations information when car approach them. 2.4 Speed camera system warming mode Provide speed camera and distance countdown warning. Self-define coordinates 1. Function instruction: Build your own coordinates database. 512 self-define available. Voice alert you when car approaches the self-define coordinate ,and display 【PASS】one LED...
- Page 20 when pass self-define coordinate 2.How to set self-define coordinates Obverse direction self-define coordinates During the driving status ,press 【SET】 to get into setting mode. System alert: “Obverse direction self-define coordinates”mode. 3.2.2. Press 【▼/ ▲】to select the *type than press SET again to go next step. In here we set type 3: Radar speed camera.
- Page 22 反向自建坐標...
- Page 23 Self-define coordinates type list： Electronic monitoring Sections of road irregularities Examiner Red light speed Railroad crossing cameras Fixed speed cameras Start point of speed detecting Radar speed camera End point of speed detecting Mobile speed cameras A one-way street...
- Page 24 Viaduct speed Tunnel cameras Tunnel exit speed Gas station camera area Tunnel speed camera Rest Stop zone Speed camera to keep a safe distance Dele self-define coordinates Enter Dele self-define coordinate mode then press 【▼】twice. Select coordinate then long press 【▼】 to dele it...
- Page 25 Package Magnet *1 USB cable *1 Car charger USB*1 User Guide *1...
- Page 26 Repairing Rules The applicable objects of the above terms ☆ We provide the limited of one year warranty as of the date you purchased, but we are subject to the normal operation as the attached user manual only complete the date of purchase and the other information so that one year free service will be covered.
- Page 27 concerned, the tracking number would depend on manufacture date. Warranty ☆ The users could send or fax the copy of the warranty with sale agent stamp. Covered warranty conditions For customer’s right, please preserve the warranty in package well. ...
- Page 28 under the warranty. Whatever the problems is arising from the factors as set forth hereunder, (1) The label is expired. (2)The defect or damage is arising from act of God, user’s improper usage. (3)The defect or damage is arising from improper installation and unauthorized modification, download the software not designate or (4)The damage is caused by customer.
