Summary of Contents for Btwin BM2001

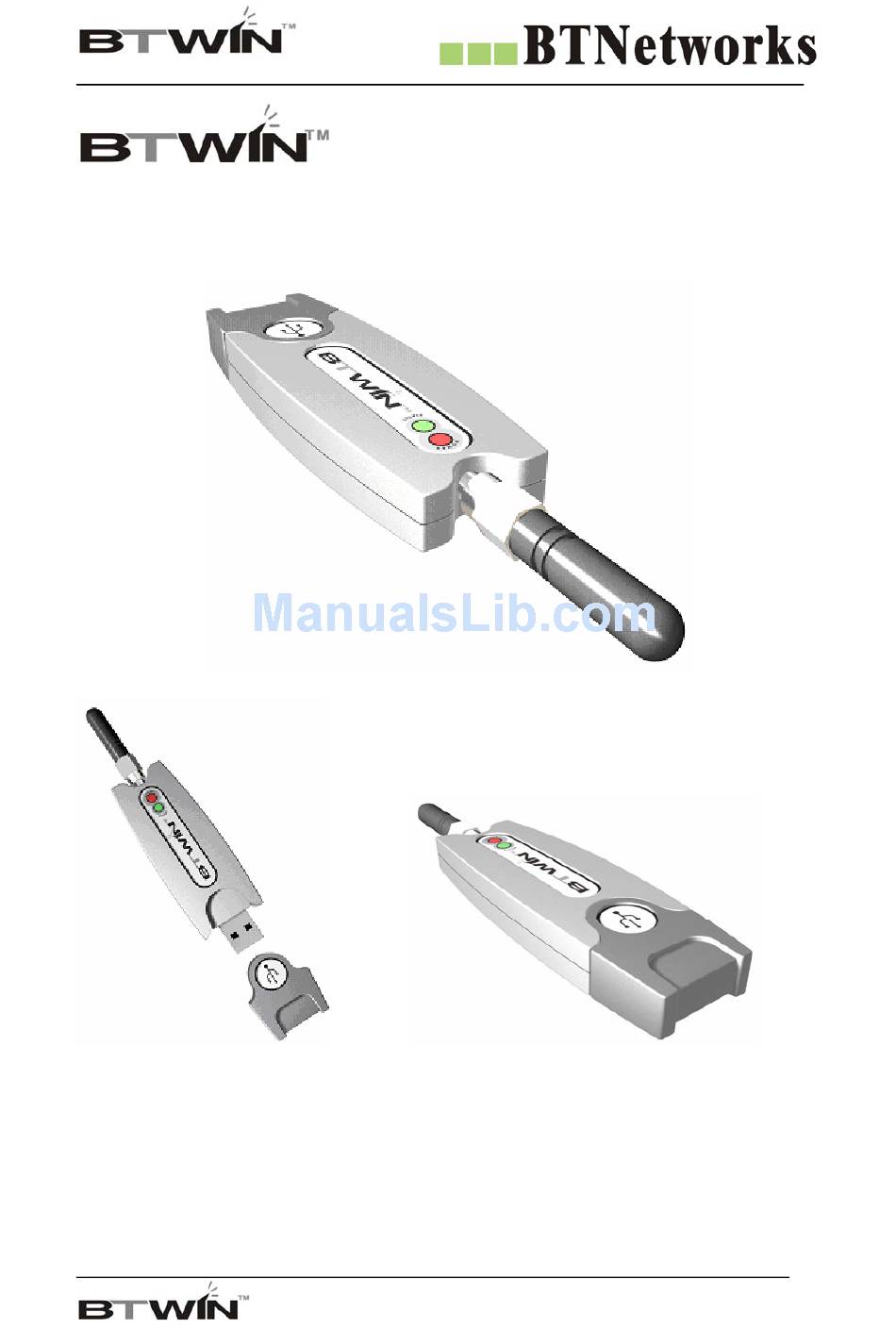

- Page 1 Wireless Total Solution Company BTWIN™ is a Trademark of BTNetworks. BM2001 (Bluetooth USB Adapter) User’s Guide BTNetworks Co., LTD 2005 08.30 Ver 3.0 For your Free Bluetooth USB Adapter BM2001 User’s Guide...
-
Page 2: Table Of Contents
Install the BM2001 device driver 14.1 Windows 98 & Windows 2000 14.2 Windows XP Remove the BTWIN BM2001 USB Adapter driver Set COM Port for BM2001 USB Adapter 16.1 Windows 98 For your Free Bluetooth USB Adapter BM2001 User’s Guide... - Page 3 Wireless Total Solution Company 16.2 Windows 2000 & XP DIP-Switch Configuration Mode 17.1 Check on default setting before testing BM2001 17.2 Communication Test at 9600 bps (default Setting) 17.2 Communication Test at 115,200 bps (change the baud rate) PC Configuration Mode 18.1...
-
Page 4: Introduction (Model: Bm2001)
Wireless Total Solution Company 1. Introduction (Model: BM2001) Bluetooth USB Adapter, BM2001 is product that is developed, designed and produced by BTNetworks. It is able to replacement standard RS232 cable perfectly. Bluetooth communication’s security is very strong because it use the frequency hopping and 128bit encryption in 2.4Ghz frequency range. - Page 5 Hardware flow Control = None Data Bit = 8 Bit Role = MASTER or SLAVE Stop Bit =1 Bit Parity Bit =No Parity Bit Hardware flow Control = None ROLE = MASTER For your Free Bluetooth USB Adapter BM2001 User’s Guide...
-
Page 6: Bluetooth Usb Adapter & Bluetooth Usb Dongle
Bluetooth USB Adapter is a Bluetooth Serial Adapter plus USB to Serial converter feature. But it is not a USB dongle. It doesn’t need an application software like a BTW of Widcomm. For your Free Bluetooth USB Adapter BM2001 User’s Guide... -
Page 7: External View
Wireless Total Solution Company 4. External View Power LED Status LED USB Port <TOP View> <Bottom View> DIP Switch Cover Reset Switch <Left View> Power Switch <Right View> For your Free Bluetooth USB Adapter BM2001 User’s Guide... -
Page 8: Contents Of Package
Wireless Total Solution Company 5. Contents of Package Picture Ramark BM2001 Default External Antenna (2.5 dB) BTWIN™ BM2001User’s Guide CD For your Free Bluetooth USB Adapter BM2001 User’s Guide... -
Page 9: Antenna Configuration Scenario
Support Bluetooth Profile Input Power 4 - 12 V Current Consumption Maximum 100 mA ℃ ℃ Operating Temperature ~ 70 Communication Speed 1,200bps ~ 115,200bps Antenna Dipole Antenna (2.5 dB) PC interface For your Free Bluetooth USB Adapter BM2001 User’s Guide... -
Page 10: About The Dip Switch
- You can choice the baud rate from 1,200 bps to 115,200 bps. * Caution : If you want to set the baud rate with DIP Switch, pin #4 of the Function select switch must be up. For your Free Bluetooth USB Adapter BM2001 User’s Guide... -
Page 11: Function Select Switch
9. Function Select Switch 9.1 Select the Role (MASTER / SLAVE) In order to communicate between two BM2001, one should be a Master and another should be a Slave. You may set the role with pin#3 of the function select switch. -
Page 12: Select The Mode
Wireless Total Solution Company 9.2 Select the Mode BM2001 has two modes, one is DIP Switch mode and other is PC configuration mode. You may choice the mode. 1) DIP Switch Mode You may set the baud rate and Role with only DIP Switch. -
Page 13: Set The Baud Rate
- Pin #1 of the Baud Rate Switch doesn’t use. - Pin #4 of the Function Select Switch must be up (DIP Switch Mode). - If you want higher speed than 115,200 bps, Use the PC configuration mode. For your Free Bluetooth USB Adapter BM2001 User’s Guide... -
Page 14: Led / Reset Switch
Power LED Status LED USB Port <TOP View> 11-1. Power indication LED / Status indication LED You can find the status of BM2001 with Red and Green LED indicator. Status Description Power LED Power ON Red LED is On (Stable) Connecting Green LED is flashing twice per second. -
Page 15: The Bluetooth Communication With Bm2001
Wireless Total Solution Company 13. The Bluetooth Communication with BM2001 • In order to communicate between two BM2001, one should be a Master and another should be a Slave. Bluetooth Communication In order to communicate between BM2001 and Bluetooth products that are able to support SPP profile like PDA, Mobile Phone, Bluetooth Dongle, BM2001 must be a Master or a Slave. -
Page 16: Install The Bm2001 Device Driver
Wireless Total Solution Company 14. Install the BM2001 device driver 14.1 Windows 98 & Windows 2000 1) Attach BM2001 to USB port of PC and turn on the BM2001. 2) The pop up window will appear for new hardware device. - Page 17 7) First driver Installing procedure has finished. Click Finish button. * You should do driver installing procedure one more time 8) You may see new pop up window. Click Next button. For your Free Bluetooth USB Adapter BM2001 User’s Guide...
- Page 18 Select “Search for a suitable driver for my device [recommended]” and click Next button. 5) Select “CD-ROM drivers” click Next button. 6) Windows found a driver for BM2001. Click Next button. For your Free Bluetooth USB Adapter BM2001 User’s Guide...
- Page 19 USB port of PC and turn on the BM2001. 2)”Found hardware device” message will be displayed. 3) Click next button. Select “Search for a suitable driver for my device [recommended]” and click Next button. For your Free Bluetooth USB Adapter BM2001 User’s Guide...
- Page 20 Next button. 6) Move to CD-ROM’s BTWIN BM2001 USB Adapter install driver. 7) Select “Btbus” file and click “Open” button. Windows found driver for BM2001. Click Next button For your Free Bluetooth USB Adapter BM2001 User’s Guide...
-
Page 21: Windows Xp
The device driver install procedures are separated two steps. The first step is making the driver folder in the Windows. [1] Move to “BTWIN BM2001 USB Adapter driver “ folder on CD be provided, and you can see below window. - Page 22 [4] Ok, first step has finished. Open the C drive of your computer, and you can find “BTWIN” folder. [5] Now, the installing procedure will begin from here for the BM2001’s device driver. Turn on the power switch of BM2001.
- Page 23 [9] Click “Finish” button, and window will disappear. [10] The first installation procedure has been finished. [11] New windows will appear, but it is not a problem. You will do one more same procedure for the driver installing. For your Free Bluetooth USB Adapter BM2001 User’s Guide...
- Page 24 [12] If your OS is a Windows XP, you will see the below windows. But you can ignore that massage, click “Continue Anyway” button. [13] Click “Finish” button, and window will disappear. All installations have been finished. For your Free Bluetooth USB Adapter BM2001 User’s Guide...
-
Page 25: Remove The Btwin Bm2001 Usb Adapter Driver
Wireless Total Solution Company 15. Remove the BTWIN BM2001 USB Adapter driver (Windows 98, Windows 2000 and Windows XP) 1) Move to [My computer] [Control Panel] [Add/Remove programs] You may see “BTWIN USB Adapter”. Select that and click “Change/Remove” 4) Click “Yes” button. -
Page 26: Set Com Port For Bm2001 Usb Adapter
Wireless Total Solution Company 16.Set COM Port for BM2001 USB Adapter 16.1 Window 98 [1] Move to [My computer] [Control Panel] [System] [Hardware] [Device Manager] [2] Click Port, and you may see “BTWIN BM2001 USB Adapter” [3] Double click BM2001 to see its property. -
Page 27: Windows 2000 & Xp
[2] Click Port, and you may see “BTWIN BM2001 USB Adapter” [3] Double click BM2001 to see its property. [4] Select “Port Setting” Tab. [5] Click “Advanced” button. [6] Set COM port No. For your Free Bluetooth USB Adapter BM2001 User’s Guide... - Page 28 17-1. Check on default setting before testing BM2001 1) There are two BM2001s. One should be a Master and opposite side should be a Slave. * BM2001 is set either master or slave at factory. 2) Mode select is DIP-Switch Configuration mode.
-
Page 29: Dip-Switch Configuration Mode
Baud rate 9600 bps 9600 bps Parity None None Stop bit 1 bit 1 bit Hardware flow control None None * If use Default setting, You don’t have to change the setting. For your Free Bluetooth USB Adapter BM2001 User’s Guide... - Page 30 Wireless Total Solution Company Follow these procedures. [1] Attach BM2001 to USB port of each PC. [2] Turn on the power switch. ♦ Whenever turn on the power switch, BM2001will start working. [3] Check on the power LED color is red.
- Page 31 Wireless Total Solution Company Full Duplex Commu nication [7] If displayed characters are right, it means both the data transmitting through BM2001 and setup is successful. For your Free Bluetooth USB Adapter BM2001 User’s Guide...
-
Page 32: Communication Test At Bps (Change The Baud Rate)
Configuration mode Configuration mode Baud rate 9600 bps 115,200 bps Parity None None Stop bit 1 bit 1 bit Hardware flow control None None * Only change the baud rate’s value For your Free Bluetooth USB Adapter BM2001 User’s Guide... - Page 33 Follow these procedures. [1] Change the baud rate switch as 115200 bps. Pin 2,3 and 4 are up. ♦ BM2001 should be either master or slave. If one is a master, another should be a slave. Function Select Switch Baud Rate Switch...
- Page 34 [6] Enter the characters via keyboard at each PC in order to transmit the data between two PCs. Full Duplex Communi cation [7] If displayed characters are right, it means both the data transmitting through BM2001 and setup is successful. For your Free Bluetooth USB Adapter BM2001 User’s Guide...
-
Page 35: Pc Configuration Mode
18-1. Pre Setting before using the PC Configuration Mode You should below procedures in order to use the PC Configuration mode before turn on the BM2001. [1] In order to use PC Configuration Mode, you need the serial communication software. - Page 36 5 seconds, and appear the TOP menu to configure. [6] If you don’t press the enter key within 5 seconds, BM2001 will try to communicate at default setting. [7] If you need more detail information for PC Configuration Mode, refer below documents.
-
Page 37: How To Use The Pc Configuration Mode
6) You can enter the character until maximum 12 characters. If the entered characters exceed than 12 characters, it will display “Overflow buffer” message. And then it will display “Retry > “ message. For your Free Bluetooth USB Adapter BM2001 User’s Guide... - Page 38 [2] Authentication To connect other bluetooth devices it needs an authentication, pin code, encryption. User may set them in this menu. Authentication is set as enable Pin Code is set as BTWIN For your Free Bluetooth USB Adapter BM2001 User’s Guide...
- Page 39 Pin code is changed. [2-3] Encryption [2-3-1] This encrypt the data between two bluetooth devices. [2-3-2] The default setting is enable. [2-3-3] If the authentication is disable, this is disable too. For your Free Bluetooth USB Adapter BM2001 User’s Guide...
- Page 40 2) Input the new bluetooth device address in a hexadecimal that you want to connect it. 3) It will be displayed “Change complete!!” and then move to Top menu automatically. 4) You can see the changed Remote BD address. For your Free Bluetooth USB Adapter BM2001 User’s Guide...
- Page 41 [5-2] In order to connect between two bluetooth devices one has to be a master and another has to be a slave. [5-3] Select menu 4 at TOP MENU, and you can select the role. MASTER is 1 and SLAVE is 2. [5-4] Select the role and press the enter key. For your Free Bluetooth USB Adapter BM2001 User’s Guide...
- Page 42 There are three connection modes. You may select connection mode. 1) Select menu 5 at TOP MENU. 2) Choice the mode. And press the enter key. 3) You can see the changed mode. For your Free Bluetooth USB Adapter BM2001 User’s Guide...
- Page 43 MODE 1 In this mode, BM2001 always connect the latest paired bluetooth device. If BM2001 has not the Remote BD address, try to connect the first bluetooth device is searched. At this time, two bluetooth devices must have same PIN code.
- Page 44 Wireless Total Solution Company [10] RS-232 (Flow control) BM2001 supports Hardware Flow control. Default setting is OFF. For your Free Bluetooth USB Adapter BM2001 User’s Guide...
-
Page 45: Operating Modes
If you want to connect the new bluetooth device, use this mode. Using method [1] Turn off BM2001 and move down the pin#4 of the function select switch. Then BM2001 will be a PC configuration Mode. [2] Run the Hyperterminal program of the windows. Refter to “PC Configuration Mode”. - Page 46 In Master Case [11] You can see the below picture. - BM2001 will find the bluetooth devices with same PIN code. - The searching will be kept on until look for 7 slaves. - Some keys have a function while searching.
- Page 47 If you don’t do it, whenever turn on BM2001 it will be find the new bluetooth devices. Back to Mode1 [1] Turn off BM2001. And move down the pin#4 of the function switch to be PC configuration Mode. [2] Turn on BM2001. And change the connection mode as MODE1 at the main menu.
-
Page 48: Mode
[5] Select No.3 Remote BD address at the main menu. [6] Input the Remote device’s address. [7] Input “x”, and then BM2001 will try to connect with new device what you want to connect. [8]Wait until “Connection Ok” message will be displayed. -
Page 49: Regulatory Compliance
The user could lose the authority to operate this equipment if an unauthorized change or modification is made. User information of CE compliance Hereby, BTNetworks co., Ltd declares that this is Bluetooth USB Adapter (BM2001) in compliance with the essential requirements and other relevant provisions of Directive 1999/5/EC. RF Exposure Information The antenna used for this transmitter must be installed to provide a separation distance of at least 1.5 cm... - Page 50 Wireless Total Solution Company Homepage www.btnetworks.co.kr Technical Support techsupport@btnetworks.co.kr Sales Contact contact@btnetworks.co.kr 1F.Yoonjae Bldg. 1530-1,Seocho-Dong, Company Address Seocho-Gu, Seoul, Korea, 137-871 Company Logo Model : BM2001 For your Free Bluetooth USB Adapter BM2001 User’s Guide...
