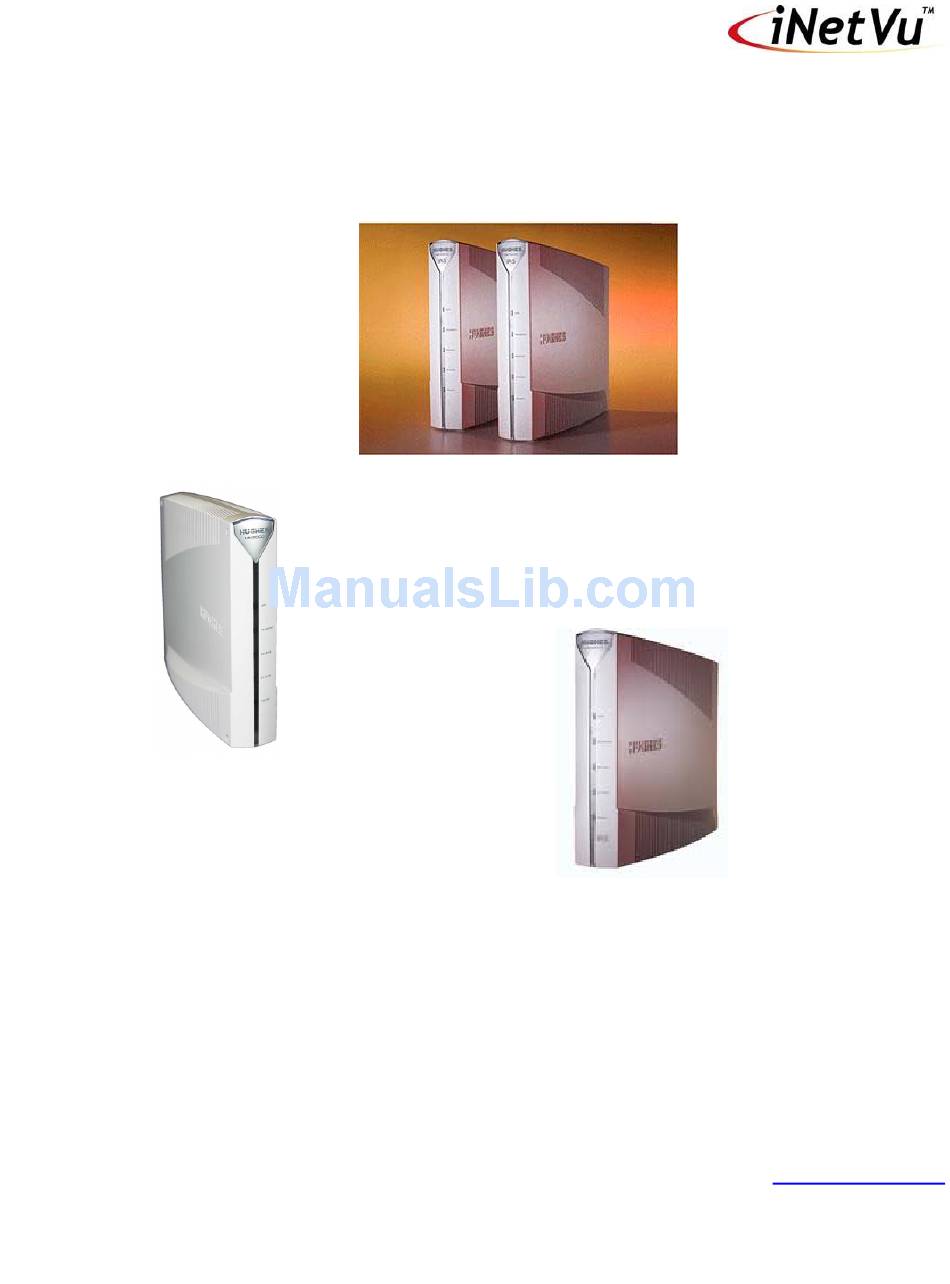

- Page 1 Hughes Ka and the iNetVu® 7700 Series Controller HN 9600/9800 Ka broadband satellite Routers with single IFL cable HN 9200/9260 Dual Ka/Ku Band HN 9400/9460 Dual Ka/Ku-band broadband satellite Router 1-877-iNetVu6 www.c-comsat.com Revision 2.0 March 7, 2017...
- Page 2 INETVU® MOBILE SYSTEM QUICK START – HUGHES KA This page is intentionally left blank. C-COM Satellite Systems Inc. Page 2...
-
Page 3: Safety And Warning Information
Failure to comply with these precautions or with specific warnings elsewhere in this documentation violates safety standards of design, manufacture and intended use of the equipment. C-COM Satellites Systems Inc. assumes no liability for the customer’s failure to comply with these requirements. -
Page 4: System Overview
Transmission/Receive coaxial cables have all pre-wired. There is no need to re-calibrate the Mobile Platform unless directed by a C-Com Support Technician. It is critical that the iNetVu™ Controller stay together with the Mobile Platform it shipped with. You may refer to the iNetVu™... -
Page 5: Pre-Configuration Check List
Prior to installing IMS and configuring your system, verify that you are using the minimum requirements listed below. C-COM always recommends using the latest version as many fixes and improvements have been made. Note: Please contact C-COM if you require more information about modem compatibility as these may change without further notice. - Page 6 Connect network cable to Lan 1 on modem side and the other to your pc. Open a web browser, type 192.168.0.1 in the address bar. Click on “System Info” icon to see Modem information. C-COM Satellite Systems Inc. Page 6...
- Page 7 USB Cable 90 - 264VAC USB Interface System Wiring Diagram ® *Recommended for proper grounding of iNetVu systems. Ensure Control Cable, including RX and TX cables are connected prior to powering on 7710 Controller. C-COM Satellite Systems Inc. Page 7...
- Page 8 24 VDC Input LAN A (option) 90 - 264VAC Network Interface System Wiring Diagram. LNB Powered from 7710 Controller. Ensure Control Cable, including RX and TX cables are connected prior to powering on 7710 Controller. C-COM Satellite Systems Inc. Page 8...
- Page 9 90 - 264VAC Network Interface System Wiring Diagram for Hughes 9600/9800 Modems. USB can also be used for PC communication Ensure Control Cable, including RX and TX cables are connected prior to powering on 7710 Controller. C-COM Satellite Systems Inc. Page 9...
- Page 10 € iNetVu® 7710 Front Panel USB drivers must be installed for USB connection method. The configuration process is only required to be done once as long there are no change in satellite, service, modem, or platform parameters. C-COM Satellite Systems Inc. Page 10...
-
Page 11: Tips And Recommendations
Override Compass can be selected without selecting Full Search but this does not hold true for the vice-versa. Refer to Controller User Manual for more information on using the iNetVu Controller and options associated with your system. C-COM Satellite Systems Inc. Page 11... - Page 12 4. Select Use the following IP address. Set your PC to the same subnet as the 7710 Controller. PC IP: 192.168.0.3 7710 IP: 192.168.0.2 Subnet Mask: 255.255.255.0 (Modem/Router Dependent) Gateway: 192.168.0.1 (Router/Modem IP) Set the DNS IP Addresses if required. C-COM Satellite Systems Inc. Page 12...
- Page 13 ‘↑’ button to select “Y” (yes) and press “Enter”. d. Click the “reset” button on the controller. You may view the 7710 Controller IP from the LCD interface via – MONITOR IP (C_IP) C-COM Satellite Systems Inc. Page 13...
-
Page 14: Software Installation
Please Note: Do not connect the Controller via USB until the drivers and software have been installed. 1. If you are installing from the USB flash drive or have downloaded from the C-COM FTP, run the iNetVu7710Setup.exe file. 2. Install the FTDI USB Driver and continue through the Installation Wizard. - Page 15 Please select “Do not show this message again” so this pop-up will not appear after you have completed the initial Controller setup. 2. If the controller firmware does not match you will be prompted to update. C-COM Satellite Systems Inc. Page 15...
- Page 16 INETVU® MOBILE SYSTEM QUICK START – HUGHES KA 3. Follow the on-screen instructions to update the controller firmware. Once complete the wizard will resume. C-COM Satellite Systems Inc. Page 16...
- Page 17 4. Configure the Platform Type, Version and Serial No. If no changes are needed press “Next” to continue. Platform Antenna Model Type: Antenna Version Version: Antenna Serial Number Serial No: It is important that this information be correct or will result in undesired antenna behavior. C-COM Satellite Systems Inc. Page 17...
- Page 18 Allow for acquisition with LNBs that switch frequency ranges by adjusting LNB 22KHz Tone: the 22 KHz tone Controller TCP/IP Settings Controller IP Address IP Address: Controller Subnet Mask Subnet Mask: Controller Gateway (Modem or Router) Default Gateway: C-COM Satellite Systems Inc. Page 18...
- Page 19 8. Congratulations you have configured your iNetVu Controller. You can now find satellite by pressing the FIND SAT button from the front panel or by launching the iNetvu Software. *For more detailed information on the iNetVu® 7710 Controller Software, refer to the iNetVu® 7710 Controller Manual C-COM Satellite Systems Inc. Page 19...
