Summary of Contents for Turtle T-WBA01Z

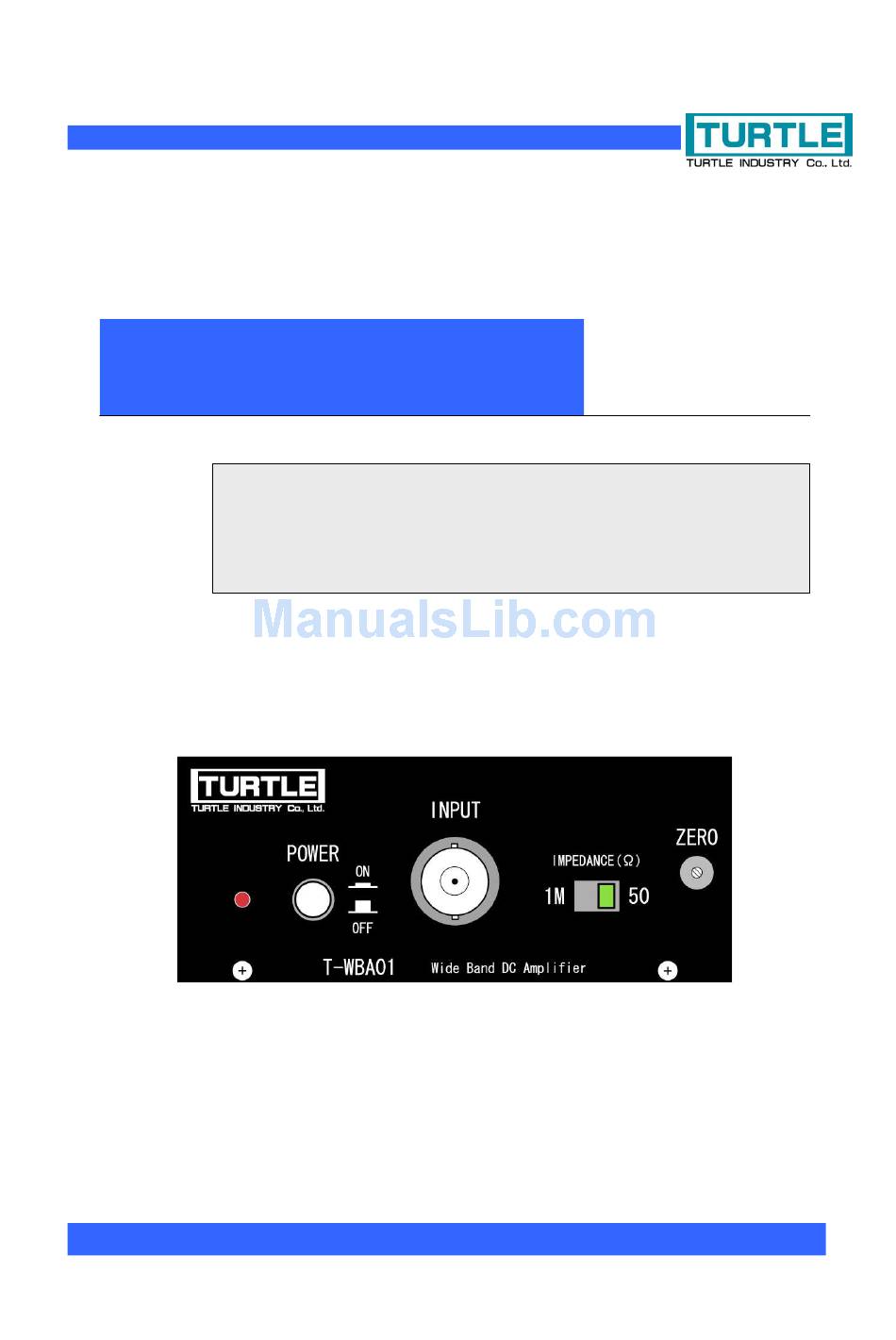

- Page 1 T-WBA01Z Broadband Direct Current Amplifier Operating Instruction Manual...
- Page 2 Japanese government will be required in exporting the product abroad. ©2004 Turtle Industry Co., Ltd. All rights reserved. Copying or modifying this document is prohibited without prior permission from Turtle Industry Co., Ltd. Any names of companies or products used in this document are the trademark or registered trademark...
- Page 3 Instruction Manual for T-WBA01Z Warnings and Cautions on Use Warning Ensure to cut off all the power supply to any equipment before attaching or removing it. Failure to do so could pose the hazard of an electric shock depending on the equipment used.
-
Page 4: Table Of Contents
Instruction Manual for T-WBA01Z 1. Introduction......................... 4 1.1 Product Outline ......................4 1.2 Product Structure ......................4 2. Names of Each Part ......................5 2.1 Front..........................5 2.2 Rear ..........................5 3. Description of Each Part..................... 7 3.1 Input Terminal (INPUT) ....................7 3.2 Output Terminal (OUTPUT) .................. -
Page 5: Introduction
Instruction Manual for T-WBA01Z 1. Introduction Thank you very much for purchasing the Broadband Direct Current Amplifier T-WBA01Z made by Turtle Industry Co., Ltd. This document describes what you will need to know to use the product, including its special features, how to use it, handling instructions, and other related information. -
Page 6: Names Of Each Part
Instruction Manual for T-WBA01Z 2. Names of Each Part 2.1 Front Input Terminal Input Resistance Selection Power Supply Switch Zero Adjustment Power Supply Switch A push button switch for supplying power. Input Terminal The terminal for inputting signals. (BNC) Input Resistance This allows an input resistance of between 1M and 50Ω... - Page 7 Instruction Manual for T-WBA01Z Inverted Output The terminal used for outputting inverted signals after Terminal amplification. (BNC) Non-inverted Output The terminal used for outputting non-inverted signals after Terminal amplification. (BNC) Power Supply Used to connect the accompanying AC/DC adaptor to the Terminal power supply.
-
Page 8: Description Of Each Part
Instruction Manual for T-WBA01Z 3. Description of Each Part 3.1 Input Terminal (INPUT) The terminal for input of the signals to be amplified. A BNC connector is used here. An input resistance of between 1M (mega) ohm and 50 ohms can be selected using the input resistance selection switch. -
Page 9: Input Resistance Selection
Instruction Manual for T-WBA01Z 3.4 Input Resistance Selection Used for selecting an input resistance of between 1M (mega) ohm and 50 ohm. Selecting 50 ohm will result in the head of the switch lighting up green. * When switching ensure to cut off the power supply first. -
Page 10: Other
The Turtle Industry (Turtle-Ind) warrants each product of its manufacture to be free from defects in material and workmanship subject to the following terms and conditions. The warranty is effective for half a year after the shipment by Turtle-Ind to the original purchaser. - Page 11 Instruction Manual for T-WBA01Z Turtle Industry Co., Ltd. ~ Service Support Section, Technical Division, Technical Department ~ E-mail tokyo@turtle-ind.co.jp +81-29-843-2024 Address 1-12-4 Nishineminami, Tsuchiura-shi, Ibaraki, Japan, 300-0842...
-
Page 12: Specifications
Instruction Manual for T-WBA01Z 6. Specifications 6.1 Summary of Specifications Number of Input Channels Input Resistance Switchable between 50Ω and 1M (mega) Ω Allowable Input ±5Vp Voltage Gain 26dB (high resistance load)/ 20dB (50Ω load), all ±0.3dB Maximum Output approx. ±4.9Vp (high resistance load)/approx. ±2Vp (50Ω load) -
Page 13: Outline Of Dimensions
Instruction Manual for T-WBA01Z 6.2 Outline of Dimensions INPUT ZERO POWER IMPEDANCE(Ω) Wide Band DC Amplifier T-WBA01... - Page 14 Instruction Manual for T-WBA01Z Operating Instruction Manual for T-WBA01Z Date of Issue: April 2012, Third Edition Issued by: Turtle Industry Co., Ltd. Edited by: Turtle Industry Co., Ltd. c2006 Turtle Industry Co., Ltd.
