Wireless Barcode Scanner
Quick Reference Guide
Set Defaults
FCC-ID: 2AET8TS4500HA
VER: TS4 5_QG_EN_V1.1.0

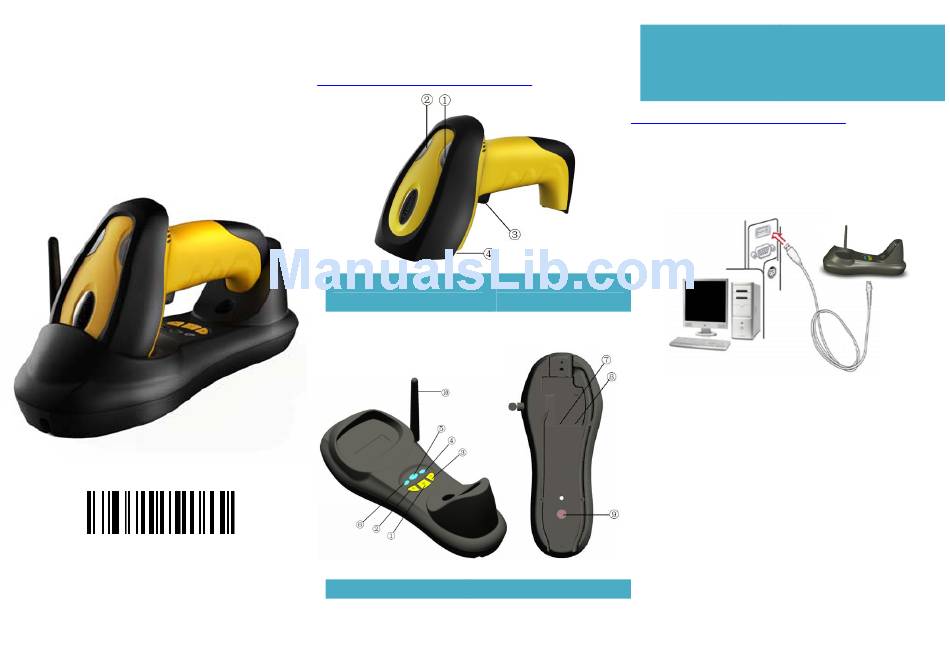

Scanner & Cradle
①Power Indicator
③Trigger
②Data Indicator
④Exit Window
①．Pairing
⑥．Reserve
②．Channel Increase
⑦．Power interface
③．Channel Decrease
⑧．Data interface to connect PC
④．Power Indicator
⑨．Adjust button
⑤．Data Indicator
⑩．Antenna
Installation
Step 1.
Refer to the below pictures, connect the cradle to host (e.g.
PC) with different cables firstly, and then connect the adaptor to the
power socket.
USB: USB cable RJ45 connect cradle ⑧, the other side connect PC.
USB cable
P/S2 cable RJ45 connect cradle ⑧, the other side to connect
P/S 2:
PC and P/S2 port keyboard
Advertisement
Summary of Contents for Guangzhou Taima TS4
- Page 1 ②．Channel Increase ⑦．Power interface VER: TS4 5_QG_EN_V1.1.0 ③．Channel Decrease ⑧．Data interface to connect PC ④．Power Indicator ⑨．Adjust button Scanner & Cradle Wireless Barcode Scanner ⑤．Data Indicator ⑩．Antenna Installation Quick Reference Guide Step 1. Refer to the below pictures, connect the cradle to host (e.g.
- Page 2 When the scan ner is out of communication area of the cradle, the RS232 scanner will save th e bar code da ta i n bui lt-in da ta me mory. The Step 2. Put the scanner onto the cradle like below picture. scanner will send the data to the cradle automatically when the scanner gets back to the communication area.
-
Page 3: Common Settings
Start transfer Bar Code Data (for Manual Transmission Mode) Scanner Information inquire Data stored Fire Ware Version Scanner Clear the Barcode Data in Scanner Scanner Serial No Check Flashing Data memory full Cradle Serial No Cradle Indicator Battery inquire Insert The Scanner ID before Barcode Light Meaning... - Page 4 Suffix Suffix（Default） Do Not Transmit Suffix Scan Suffix (0~22 chars, 2 Digits/Char; 00~FF; 0D*) Parameter bar code Finish Setting ...
- Page 5 FCC Statement Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules.
