M-tech MT-1350TRX User Manual

2.4ghz wireless data tranceiver professional wireless data tranceiver

Advertisement

Quick Links

M-Technology
FCC notice to users and product statements
THIS DEVICE COMPLIES WITH PART 15 OF THE FCC RULES.
Operation is subject to the following two conditions;(1)this device may
not cause harmful interference, and (2) this device must accept any
interference received, including interference that may cause undersired
operation. CAUTION : Changes or modifications not expressly approved
by the party responsible for compliance could void the user' authority to
operate the equipment.
2200
M-Technology Co.,Ltd.
415-030 Room 504, Sunil Plaza, 822, BukByeon-dong, KimPo-si, GyeongGi-do, Korea
TEL: +82-31-984-4370~2
FAX : +82-31-997-9069
www.m-techkorea.com
2.4GHz Wireless Data Tranceiver
s
An
Face of Security
ON
ON
1
2
3
4
5
6
7
8
1
Professional Wireless DATA Tranceiver MT-1350TRX
Before installing and operating this product,
please read this manual thoroughly.
0
ON
2
3
4
1
2
3
4
5
6
7
8
User Guide
English

Advertisement

loading
Need help?

Need help?

Do you have a question about the MT-1350TRX and is the answer not in the manual?

Questions and answers

Summary of Contents for M-tech MT-1350TRX

  • Page 1 CAUTION : Changes or modifications not expressly approved by the party responsible for compliance could void the user’ authority to operate the equipment. 2200 Professional Wireless DATA Tranceiver MT-1350TRX Before installing and operating this product, please read this manual thoroughly. M-Technology Co.,Ltd.
  • Page 2 Please read it carefully for safe and proper use of your product. Product Components ................. 4 Avoid installing and operating the MT-1350TRX in the places where there is high humidity. 3. Please install the product on a completely flat floor.

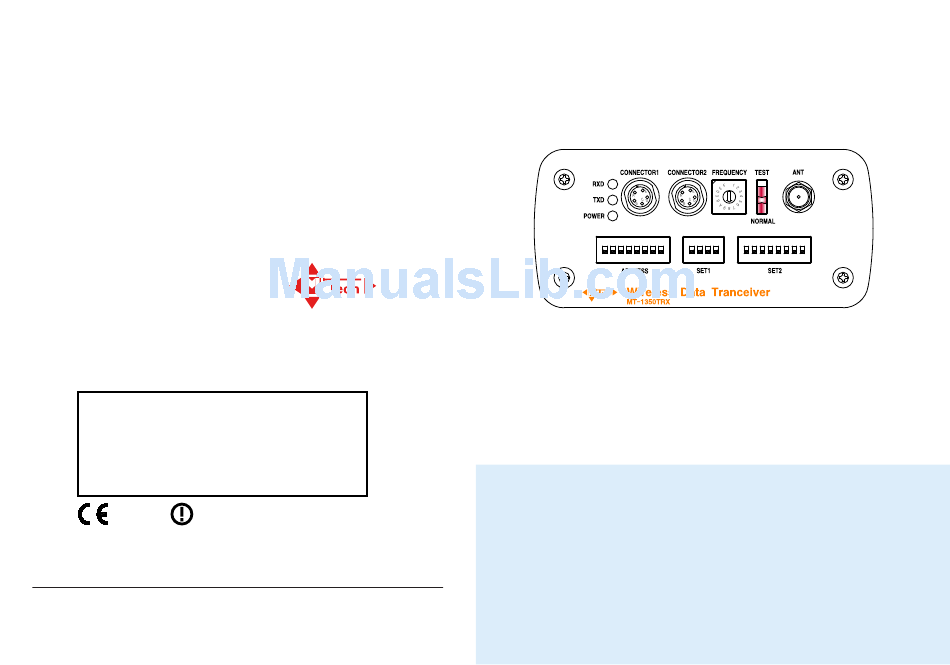

  • Page 3 4. Connector1 & Connector2 : Connector 1 and connector 2 are connected inside in parallel. 5. Frequency Setup Rotary Switch : This is the rotary switch for changing channel. Set the frequency by turning the rotary switch with a flat-tip screw driver(Refer to Frequency Setting). MT-1350TRX Tranceiver User’ s Manual Antenna Connector 6.
