Summary of Contents for Silcon DATAPOWER DP300E series

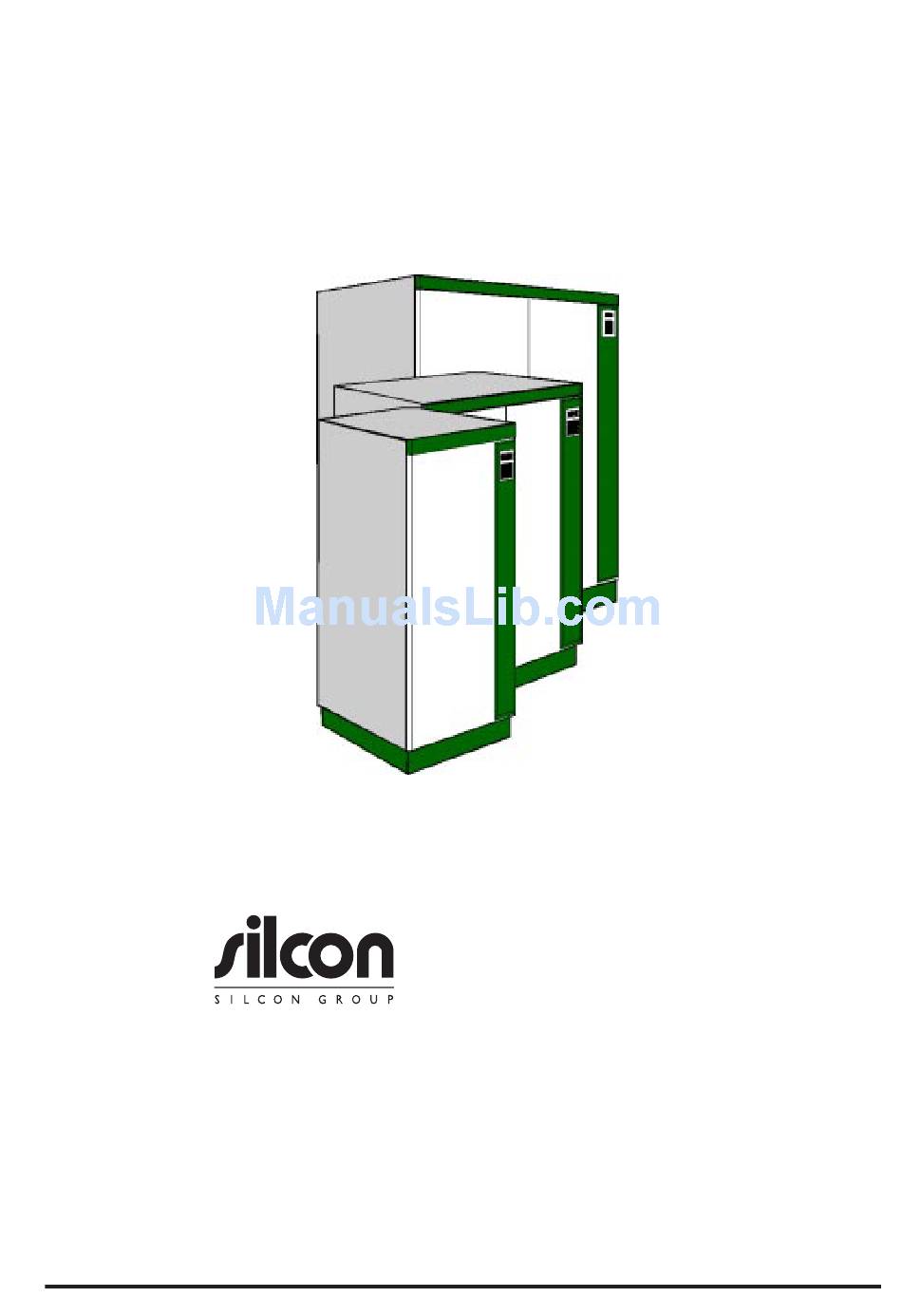

- Page 1 DATAPOWER™ DP300E Series User guide Copyright © 1997 Silcon Power Electronics A/S Due to continuous product development information given in this manual is subject to change without notice. 7OA0001 GB rev.09 User Guide DP300E...
- Page 2 7OA0001 GB rev.09 User Guide DP300E...
-
Page 3: Table Of Contents
Operating the external service bypass switch for parallel systems Preventive maintenance General Battery Battery capacity test Economy operation 10.0 Software 10.1 Choice of software 10.2 Configuration codes 10.3 Choice of cable 11.0 How to contact Silcon 7OA0001 GB rev.09 User Guide DP300E... -
Page 4: Introduction
Introduction Introduction General Congratulations on your choice of UPS (Uninterruptible Power Supply). This UPS has been designed and produced for reliable and troublefree long-term use. For you it means that once installed and commissioned, you can forget it. You only have to arrange a preventive maintenance as described in section 8 of this manual. -
Page 5: General
Stop – start Stop – start General According to electrical regulations only the local authorized electrical installer is normally allowed to perform a complete switching in and out of the UPS, as it involves operation of the battery supply breaker, where touch of high voltage parts is possible. -
Page 6: Operation
Operation Operation The display is used to show parameters, alarms/messages, and measured values. The alarm LED is used with an audible alarm to indicate unusual operating situations. The keyboard is used for programming and control of displaying param- eters, alarm messages, and displaying measured values. Keyboard description 7OA0001 GB rev.09 User Guide DP300E... -
Page 7: Programming Parameters
Programming parameters Programming parameters General Some operating parameters can be programmed directly from the keyboard, but this has already been done during the commissioning. Unless you are quite sure of the consequence of changing the following parameters, then let it be a task for your local dealer, if needed. - Page 8 Programming parameters 4.2.2 Keys used for programming 4.2.3 Programming example - switch to bypass operation Action Display shows 1. Press to enter parameter stack 2. Press until Bypass operation 3. Press until : YES 4. Press to store To return to normal operation Action Display shows 5.
-
Page 9: Reading Out Measurements
Measurements Reading out measurements Press as indicated below one key or two keys simultaneously (Used values are only random for illustration): Action Display shows Description Year, month, day 96.04.16 Hour, minute, second 10.22,13 Mains voltage Mains voltage is 3 x 385 V 385 385 385 V Mains current Mains Current... -
Page 10: Alarm - What To Do
Alarms Alarms - What to do General Alarms are indicated by the red lamp (above the upper left corner of the keyboard) and by a 30 secs. acoustic signal. An alarm is registered in an alarm stack as long as it is present, and if more in the same succession as they arise. -
Page 11: The Events Stack
Alarms The events logger The events logger is a memory stack, in which the last 250 events are stored in the same succession as they arose. (Showing the latest at first). Events stored are the alarms and the following operational modes: Mode Comments MPU is reset... -
Page 12: Service Bypass Switch
Service Bypass Switch Service bypass switch Operating the external service bypass switch 7.1.1 Bypassing the UPS Action Display shows 1. Press on the keyboard Bypass operation 2. Press on the keyboard until : NO Bypass operation 3. Press on the keyboard : YES 4. - Page 13 Service Bypass Switch 7.1.2 Switching the system from external bypass into normal UPS operation Action* Display shows 1. Turn the input switch (Q001) to position **System OFF** „1“ Normal operation 2. Open the UPS front door and press the load power 0% green „ON“...
- Page 14 Service Bypass Switch Operating the external service bypass switch for parallel systems 7.2.1 Bypassing the parallel UPS system Service Bypass Switch Q003 Mains Load Action Point 1-4 can be carried out with any of the parallel systems, however this will switch all systems into bypass operation.
- Page 15 Service Bypass Switch EMERGENCY (UPS not alive) 1. Turn the input switches (Q001) to position „0“. 2. Turn the output switches (Q002) to position „0“. 3. Turn the output isolator (Q004) to position “0”. 4. Change possible released system input fuse(s). 5.
-
Page 16: Battery
Service Bypass Switch 7.2.2 Switching the parallel system from external bypass into normal UPS operation Service Bypass Switch Q003 Mains Load Display shows Action Check that output isolator (Q004) is in position “0” Turn input switches (Q001) and output **System OFF** switches (Q002) to position “1”... - Page 17 Service Bypass Switch Display shows 11. Press on the keyboard Bypass operation 12. Press on the keyboard until : YES Bypass operation 13. Press on the keyboard : NO Normal operation 14. Press on the keyboard load power xx% No lamps on the bypass 15.
- Page 18 Service Bypass Switch 7.2.3 Isolating one UPS for service/maintenance In a redundant system one UPS can be isolated for service/maintenance without affecting the other parallel UPS(s). Service Bypass Switch 1. Check that the remaining UPS(s) will be able to carry the load when one UPS is isolated.
-
Page 19: Battery Capacity Test
Preventive maintenance Preventive maintenance General The maintenance of the UPS systems should be carried out by trained service engineers. We recommend that you sign a service and maintenance contract. It is recommended to replace the fans every 3rd year. Battery Systems with built-in batteries have as standard a battery monitoring feature (option in other systems). -
Page 20: Preventive Maintenance
Preventive maintenance 8.4 Battery capacity test Actions Display shows Description Note: Expect 16 hours recharge 1. Press time after a battery capacity test before full backup time is available. 2. Press “xxx” is back-up time from last test – Battery capacity until if no previous test has been per- test :... -
Page 21: Economy Operation
Economy Operation Economy operation General In economy operation the load is supplied directly from the mains, however the UPS is monitoring the mains and the output voltages and will in case of mains failure switch to battery operation without interruptions. The system will in order to keep the batteries fully charged at all times switch to normal operation in a pre-programmed sequence. -
Page 22: Software
Software 10.0 Software 10.1 Choice of software The CD is devided into two main parts: - DP-SOFT : for serial communication - DP-SOFT+ : for parallel communication (e.g. for MLU-box) Installation: See software guide included on the CD. 10.2 Configuration code at normal operation (Regarding test, see further information in guide included on the CD). -
Page 23: How To Contact Silcon
How to contact Silcon 11.0 How to contact Silcon For further information: E-mail: Info@silcon.dk Homepage: http://WWW.silcongroup.com AUSTRIA IRELAND Silcon Elektronik GmbH Gotec Ltd. Hausberggasse 1 Clonshaugh Industrial Estate A-7212 Forchtenstein IE-Dublin 17 Tel: +43 26 26 8 38 40-0 Tel:...
