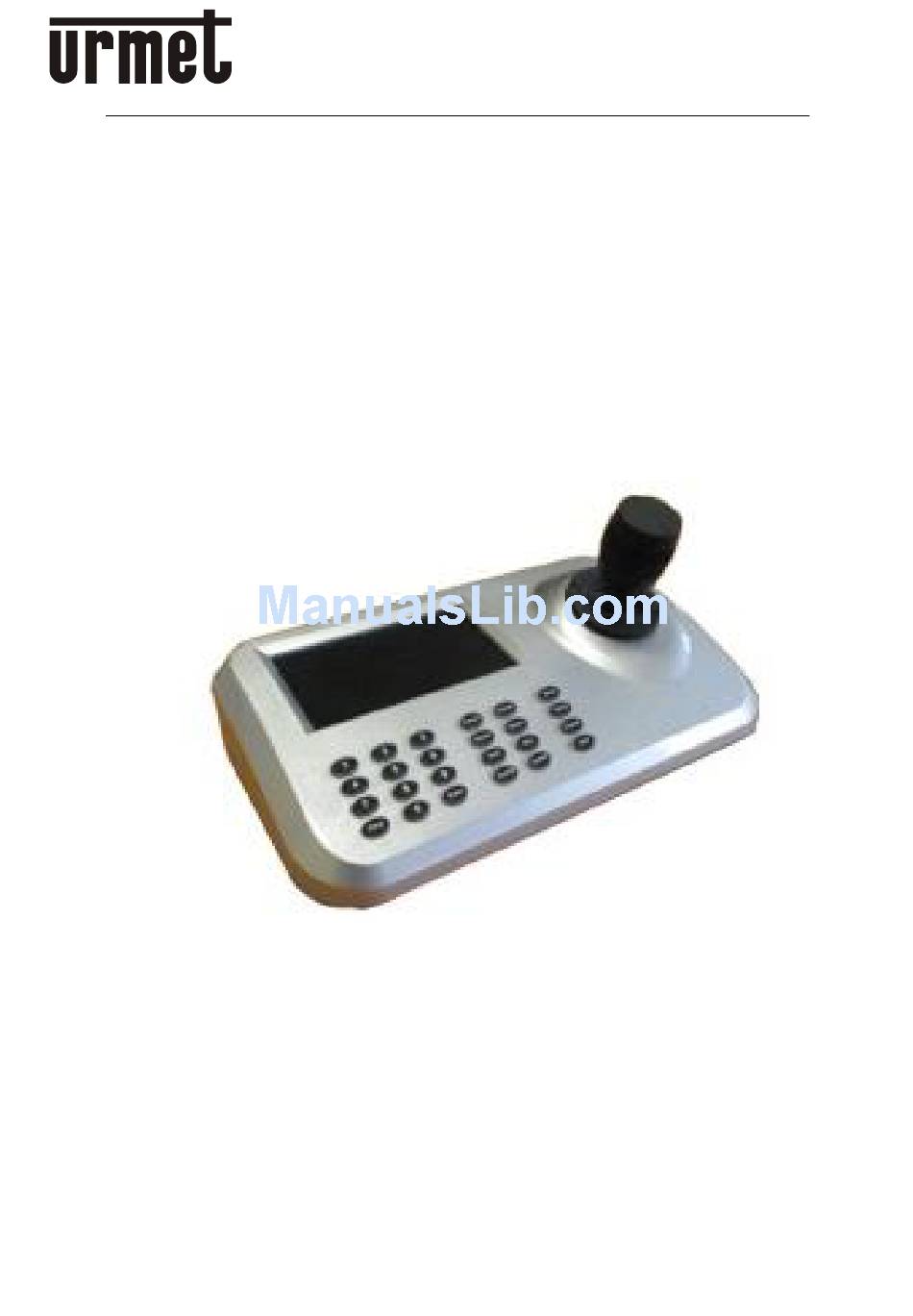

- Page 1 Mod. 1093 DS1093-529 IP KEYBORD Ref. 1093/701 USER MANUAL DS1093-529...
-
Page 2: Table Of Contents
ENGLISH TABLE OF CONTENTS Product FeatureS ........................3 Opening the package ................... 3 Warnings ......................4 Panel and Interface Introduction ..................5 Front panel and function buttons introduction ............. 5 Rear panel interface introduction ................. 5 Keyboard function introduction ..................6 Connection ...................... -
Page 3: Product Features
PRODUCT FEATURES This network control keyboard is a powerful three-dimensional with multi-function. It supports: 5.0 "LED LCD HD real-time display HDMI output ONVIF2.4 back-end PTZ. OSD menu; OPENING THE PACKAGE Check that the packing and the contents are not visibly damaged. Do not attempt to work the unit if components are missing or damaged. -
Page 4: Warnings
This device is powered in the range from 100 to 240 VAC. Check the power voltage before connecting. Use of an URMET Domus power unit with the required specifications is recommended. Do not pull the cable to unplug the device. -
Page 5: Panel And Interface Introduction
PANEL AND INTERFACE INTRODUCTION FRONT PANEL AND FUNCTION BUTTONS INTRODUCTION Fig.1 REAR PANEL INTERFACE INTRODUCTION Fig.2 Input power : DC12V/2A Reserved output interface:RS485 (not available) Power indicator ④ USB interface : it is available for connecting mouse to operate network keyboard ⑤... -
Page 6: Keyboard Function Introduction
KEYBOARD FUNCTION INTRODUCTION CONNECTION Fig.3 As above picture shows, ensure the keyboard in the same LAN with the devices. POWER ON AND ADD DEVICE 3.2.1 ADD DEVICE WAY UNDER POWER ON When the keyboard is powered on normally, the automatic search IP interface will pop up 60min later, as below: After IP search finished, the user can move up and down the cursor by joystick, select IP device needed to access device, press ”Enter”... -
Page 7: Manually Add Device
3.2.2 AUTOMATIC SEARCH AND MANUALLY ADD DEVICE After the network keyboard connected to the front-end device, then press “Menu” on keyboard panel, then will pop up main menu interface as below: Fig.5 Choose the “device management”, click “Enter” to the next sub-menu, select “search add” and confirmation. -
Page 8: Ptz Control And Image Switch
On the keyboard interface, input and fill in “IP address, port, name, password”, then press confirmation , then can display and save corresponding IP images. Remark: 1. please check IP port, password and other information before manually add IP address. Remark 2. -
Page 9: Preset Operation Instruction
available.) PRESET OPERATION INSTRUCTION Preset instruction Preset function means that store camera state (horizontal angle, tilt angle and lens spec) .It can realize recover the setting state in advance and call it. 4.5.1 SET PRESET Rotating PTZ into the target monitored position. Press setting button “ ”... -
Page 10: Special Function
SPECIAL FUNCTION PRESET FUNCTION PRESET FUNCTION 1080P N vettorscan 2 1080P P Patteners1 720P N A-B Scan 720P P XXXX Vectorscan 1 Remark: Please be noted that the special functions only for our controller. Since different control equipment have different protocol, if use some other controller, some special functions probably can’t be effective. -
Page 11: Language
LANGUAGE There is only English Language, don’t select Chinese Enter to the Main OSD and choice the Language you need, press the button“ ”,then it would be save it automatically. As below picture show: FIG.7 LED DISPLAY This Keyboard controller with the 5” LED Display,and Supports Main Stream and Sub-Stream for optional. Press the button “... -
Page 12: 4.11 Exception Handing
4.11 EXCEPTION HANDING Issue Possible Reason Solution The conflict IP address with the IP Change any one IP address of Can’t add the Device camera the keyboard or camera The command is inconsistent Confirm that the command is Can’t run the Tour with the actual same as above 2.5 item instruction show... -
Page 13: Technical Specification
TECHNICAL SPECIFICATION Model Name Network keyboard controller Model BT-1008W Control Mode Network Controllable Device Network High Speed Dome, High Speed Dome Screen display 5.0" HD LED Display Interface 1 RJ45, 2 RS485( reserved ), 1 DC12V, 1HDMI output, 1 USB port Ambient Temp. -
Page 14: Ds1093
DS1093-529 URMET S.p.A. Area tecnica servizio clienti +39 011.23.39.810 10154 TORINO (ITALY) http://www.urmet.com VIA BOLOGNA 188/C e-mail: info@urmet.com Telef. +39 011.24.00.000 (RIC.AUT.) +39 011.24.00.300 - 323 DS1093-XXX MADE IN CINA...
