Cricket A600 User Manual

Evdo usb modem
Hide thumbs Also See for A600:
Table of Contents

Advertisement

Quick Links

Download this manual See also: User Manual
EVDO USB Modem
A600

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the A600 and is the answer not in the manual?

Questions and answers

Related Manuals for Cricket A600

Summary of Contents for Cricket A600

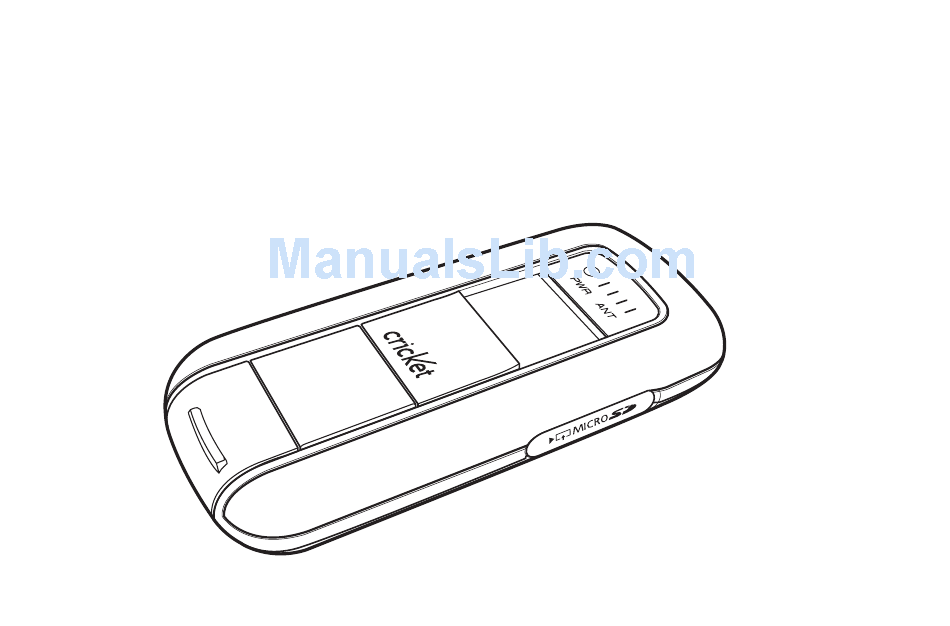

  • Page 1 EVDO USB Modem A600...

  • Page 2: Table Of Contents

    Using the Device ........30 2. INSTALLATION AND SETUP FOR Unplugging or Ejecting the modem ..30 CRICkETLINk ...........7 Remove the A600 from your laptop ..36 Setup Program - Windows ......7 Using the USB Modem Extension Y Cable ...........36 Setup Program - Mac OS X ....12 CARE AND MAINTENANCE .....38...

  • Page 3: Before Using A600

    Product Overview You will find all the information you need Thank you for purchasing A600 USB to install and use the A600 in this user’s Modem. manual. Before using the A600, you must The A600 is a 3G wireless device that...
  • Page 4 USB Modem A600 Wireless USB Extension Y Cable Modem Quick Start Guide A600 Screen Clip...

  • Page 5: Introduction To A600 Usb Modem

    RF performance, and port, which is available in most PC models. to solve clearance issues. The A600 can be used to access the Inter- - USB Modem that supports Type A USB net, your company’s intranet, or you can use Port interface.

  • Page 6: Product Handling

    USB port. Do not force the A600 into the USB port as it may cause damage to the modem and/or the port. - Keep the A600 in a dry and clean place. (Storage temperature: -22°F to 149°F [- 30°C to 65°C]). Keep your device away from liquids, dust and excessive heat.

  • Page 7: Installation And Setup For Cricketlink

    Getting Started To install CricketLink: 1. Turn on your computer then close all applications. 2. Insert the A600 modem into your USB port. 3. Your computer recognizes A600 modem and starts installation sequence auto- matically. If set up does not automatically start, click the Start button on the taskbar then choose Run.
  • Page 8 S TEp 2: You are now ready to select the location on your computer where CricketLink should be installed. It is recommended that you do not modify the default destination folder. Click the “Next” button to continue.
  • Page 9 S TEp 3: During this step the components S TEp 4: Installation of CricketLink is now of CricketLink product are being installed complete. Click the “Close” button to leave onto your computer. Installation will occur the CricketLink setup program and begin to the destination folder specified in Step using your new software.
  • Page 10 S TEp 5: Now the computer is installing S TEp 6: Click “Install” button to start USB Driver. Click “Next” button. installation,.
  • Page 11 S TEp 8: Installation of USB Driver is now USB Driver are being installed onto your complete. Click “Finish” button to leave. computer. It takes a few minutes. S TEp 9: Please wait while A600 is installed and ready to use.

  • Page 12: Setup Program - Mac Os X

    Setup Program - Mac OS X S TEp 2: Click “Continue” > button in the welcome window to continue installation. S TEp 1: To start installation, double click icon of the Package program file.
  • Page 13 S TEp 3: The Read Me file appears. Click S TEp 4: Click Install to begin Standard the “Continue” button. Install on system volume.
  • Page 14 S TEp 5: Finally, Setup Wizard shows S TEp 7: Installation is now complete. confirm window, click “OK” > button to Click “Close” button to leave CricketLink continue. setup wizard. S TEp 6: Installing CricketLink.

  • Page 15: Using Cricketlink

    Getting Started • Creates a Data Connection if using an EVDO capable USB Modem. Double click on the Cricket Broadband icon on your desktop or click on the Windows • Copies utility to create wireless copies of Start menu and select CricketLink from the your dial-up connections, if supported by list of Programs.

  • Page 16: Connecting

    Connecting Once your device is properly configured, connecting to the Internet is as simple About the Wireless Networks View as selecting the network connection type CricketLink will open the Broadband Net- shown in the list and clicking the “Connect” works window by default. This view is where button.
  • Page 17 For more information on this status bar, software you want to use. see the section “The Status Bar” in the “Ad- At any time during your connection you can ditional Features” section. check your current connection speed and CricketLink will display status information at throughput stats in the Statistics window.

  • Page 18: Sms Messaging

    If your connection fails when you try to connect, with CricketLink returning to its idle CricketLink supports SMS Messaging for state, you should try to connect again. the A600. Dormancy: The data session becomes dormant if you are not sending or receiving any data. As...
  • Page 19 “Send” button to send the message. • If you are in the SMS Messaging view and Sending SMS Messages a new message arrives, the message will • While using the A600, to send a text automatically appear in the list formatted message to: in bold.
  • Page 20 • With some devices that support SMS messaging contact lists, you may be able to click on the “To” button to open your contact list. • The phone number and the message fields are required. • The Character counter counts up from 0 to 150 and counts all of the characters typed in the message field.

  • Page 21: Cricketlink Preferences

    General Preferences Minimize Application into Tray: When you minimize the application it will now appear Click on “Options”, then “Preferences”. in the Windows task bar. To restore the ap- General Tap plication click on CricketLink tray icon, and select “Open”. Enable GpS Function: This option enables or disables GPS functionality.

  • Page 22: Vpn Settings

    VPN Settings Open Web Browser: When data con- nection is established successfully, VpN Options CricketLink executes default Web-browser • None: Do not use VPN. automatically. • Microsoft VPN: Use VPN client of Micro- Go to URL: To enable web-browser go to soft Windows.

  • Page 23: Sms Settings

    profile (Microsoft VpN only) Select Microsoft VPN Profile. External VpN Application Specify other VPN client application. To choose the application from your local disk, click “ ” button. • Click the “Ok” button. SMS Settings SMS (Short Text Message Service) is a Incoming Message Options messaging application for your wireless de- •...

  • Page 24: Additional Features

    WWAN USB Modem Status Area • Click the “Ok” button. The text can change to the following: Additional Features • No Device: Your WWAN USB Modem is In addition to the basic features mentioned removed from the laptop. in previous sections, CricketLink has the additional features listed below.
  • Page 25 The Session Menu Connect / Disconnect: You can connect or disconnect the wireless networks. To view only the connection history of a specific network type, check the “Selected Log: This provides a concise session log connection” checkbox and select the desired of your network activity.
  • Page 26 The Tools Menu Test WWAN Device: Retrieve and display detailed information about your WWAN device (1xEV-DO/1xRTT/CDMA USB Mo- dem) such as manufacturer, model, version, etc. This information can be valuable when troubleshooting a problem. The Options Menu Preferences: This is used to select prefer- ences for connection settings.
  • Page 27 The Help Menu The Connection Manager has a Help section. Please see the Help section for additional questions. “Internet” Button “Email” Button...

  • Page 28: Installing A600

    DUN bound to TCP/IP Requirements networking To successfully install and use the A600 The A600 is useful for laptop PCs that USB device in your PC, the following include a USB port. Voice service is not system specifications are required.
  • Page 29 • It is normal to hear a short beep sound each time you insert or remove the A600. It is an audible notification that your PC recognizes the new hardware.

  • Page 30: Using The Device

    Unplugging or Ejecting the modem • Make sure to complete the unplug/eject process on your computer before removing the A600 from your PC. If you remove the power statue LED USB device improperly, the product may • Green: Power OK.
  • Page 31 • Double click the Unplug/Eject Hardware • As shown in the above figure, “Cricket icon in the system tray. EVDO Network Adapter” or “USB Mass Storage Device” options will be displayed in the Hardware devices list of Win2000. Select the “USB Mass Storage Device”...
  • Page 32 2) Unplug or Eject Hardware with Windows • Then, the above window will appear. It is now safe to unplug the A600. • As shown above, only one “USB Mass Storage Device” option will be displayed in Windows XP. Select “USB Mass Storage...
  • Page 33 • Then, “USB Mass Storage Device” and click the [OK] button. • Click the [Close] button. It is now safe to unplug the A600.
  • Page 34 3) Unplug or Eject Hardware with Windows Vista • Then, two “USB Mass Storage Device” and click the [OK] button. • As shown above, only one “USB Mass Storage Device” option will be displayed in Windows Vista. Select “USB Mass Storage •...
  • Page 35 • Click the [Close] button. It is now safe to unplug the A600.

  • Page 36: Remove The A600 From Your Laptop

    Using the USB Modem Extension Y Cable: laptop 1) Plug the single end of the Y-shaped cable • Remove the A600 from your laptop. When into the A600 Modem. [A] removing the A600, always grip the sides 2) Depending on the condition you are try- of the modem and push/pull carefully.
  • Page 37 to 1Amp of current for use in weaker signal areas. Must be connected to two separate USB ports. 3) The device is connected to and powered by the computer as soon as the USB Y cable is plugged properly into the appropriate Type A USB port(s).

  • Page 38: Care And Maintenance

    CARE AND MAINTENANCE the device and damage electronic circuit boards. Your device is a product of superior design • Do not attempt to open the device. and craftsmanship and should be treated with care. The suggestions below will help • Do not drop, knock, or shake the device. you protect your warranty coverage.

  • Page 39: Sar Information

    All of the above suggestions apply equally by independent scientific organizations to your device, battery, charger, or any through periodic and thorough evaluation enhancement. If any device is not working of scientific studies. The standards include properly, take it to the nearest authorized a substantial safety margin designed to service facility for service.

  • Page 40: Safety Information

    FCC ID: must be tested and certified to the FCC that US7-A600. Additional information on Spe- it does not exceed the limit established by cific Absorption Rates (SAR) can be found...

  • Page 41: Fcc Compliance Information

    a potentially explosive atmosphere and obey or couching any exposed part of the body all signs and instructions. Sparks in such when making a call. areas could cauls e an explosion or fire NEAR BODY OpERATION resulting in bodily injury or even death. This device was tested for typical near body INTERFERENCE TO MEDICAL DIVICES operations with the back of the phone kept...

  • Page 42: U.s.federal Communications Commission Radio Frequency Interference Statement

    (2) This device must accept any interference the instructions, may cause harmful Interfer- received. Including interference that may ence to radio communications. However, cause undesired operation. there is no guarantee that interference will not occur in a particular Installation. If this U.S.A.
  • Page 43 Changes or modification not expressly approved by the party responsible for Compliance could void the user’s authority to operate the equipment. Connecting of peripherals requires the use of grounded shielded signal cables.
