Summary of Contents for Nectar Sun PVHC-2.01

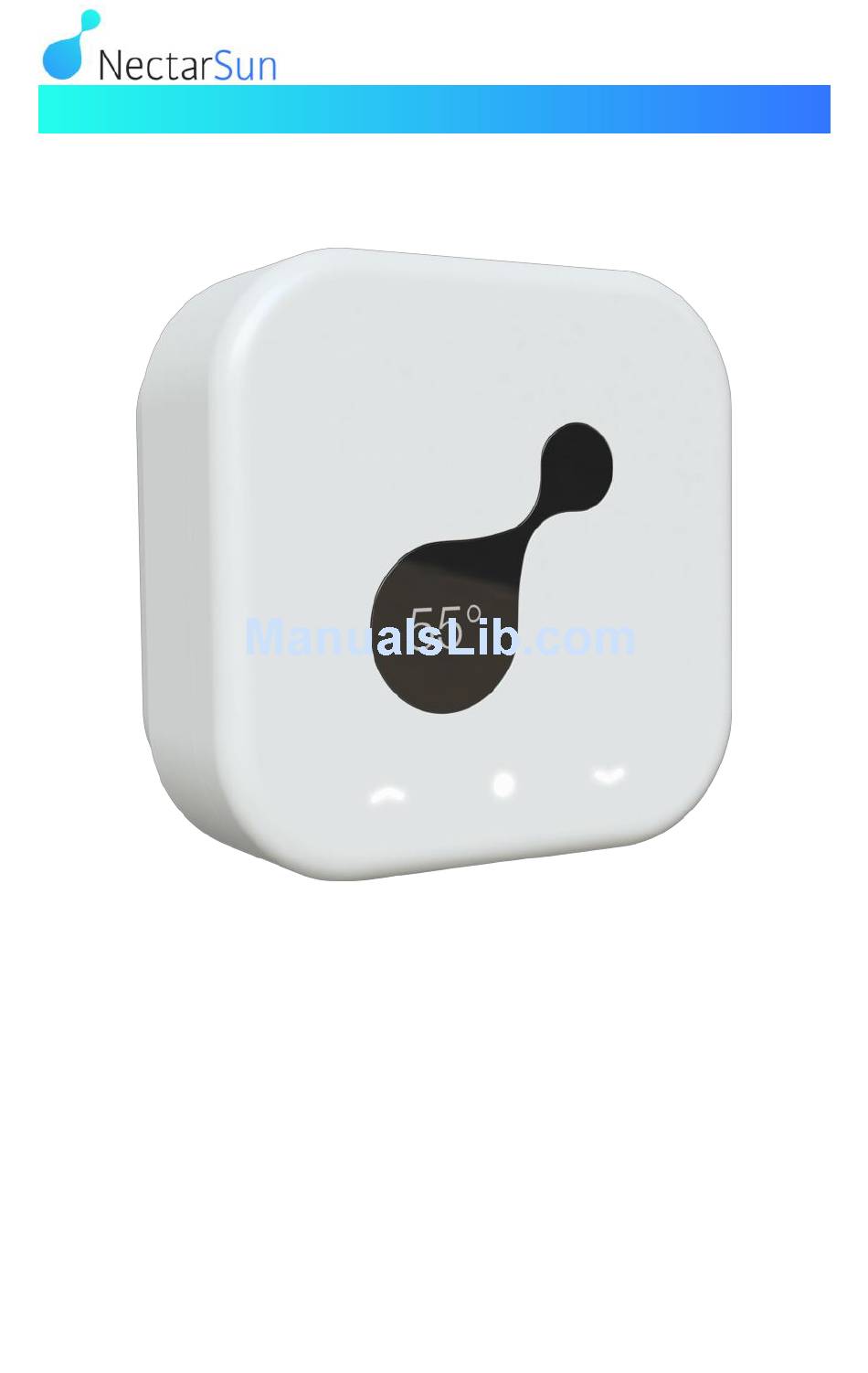

- Page 1 PHOTOVOLTAIC HEAT CONTROLER PVHC – 2.01 USER MANUAL...
-
Page 2: Table Of Contents
PHOTOVOLTAIC HEAT CONTROLER PVHC – 2.01 CONTENT CONTROL ELEMENTS AND CONNECTIONS ......3 HOW IT WORKS................4 INSTALLATION PROCEDURE, SWITCHING ON THE DEVICE .................... 5 CONNECTION DIAGRAM ............6 USER MENU ................... 7 SPECIFICATIONS ................ 11 EU Declaration of Conformity ............12... -
Page 3: Control Elements And Connections
CONTROL ELEMENTS AND CONNECTIONS PHOTOVOLTAIC HEAT CONTROLER PVHC – 2.01 Position Control elements & connections OLED text display Touch sensitive control buttons Photovoltaic modules connection (POSITIVE) Photovoltaic modules connection (NEGATIVE) Device connection cable to the water heating element Device connection cable to the main power grid Device connection cable to the temperature sensor... -
Page 4: How It Works
Protection against risk of frost – away mode and PV modules are frost resistant. • High reliability: solar savings (kWh) can be read on the display or Nectar Sun app. • High electricalsafety due to positive separation of the PV-side and... -
Page 5: Installation Procedure, Switching On The Device
6. Compatibility with hot water tanks please see „Specifications. Recommended heating element“. Recommended to have overpressure valve. 7. Nectar Sun device must be installed as close to the boiler as possible. The installation place must not hinder natural ventilation of the device and be convenient to control it. -
Page 6: Connection Diagram
CONNECTION DIAGRAM PHOTOVOLTAIC HEAT CONTROLER PVHC – 2.01 CAUTION! It is forbidden to disassemble, install or perform other connection works when NectarSun device is not completely OFF. CAUTION! If connection polarity is reversed, damage to the device is unavoidable. PV modules System protection by Switch, relays overvoltage and other... -
Page 7: User Menu
To set up your Nectar Sun you need to do the following: To set up a time. Note: after this step your Nectar Sun is starting to work. If you want to set up an additional information proceed with following: To control and set up please choose : if you want to connect the device with internet via wifi and control it with Nectar Sun app. - Page 8 • wifi configured, if it was connected. To start your Nectar Sun you need to set a time. 30 min. after Reset you can pair the device with wifi. To set up other operations please see Nectar Sun App. For Android: www.nectarsun.com/android For iPhone: www.nectarsun.com/iphone...
- Page 9 CONTROL MANUALLY (NOT CONFIGURED MENU) PHOTOVOLTAIC HEAT CONTROLER PVHC – 2.01 Note: To navigate and go to next screen. To navigate and go to previous screen. To select or confirm press. Main screen in various operation modes: Display: Menu item Text Explication Idle...
- Page 10 Go back to main screen Reset all settings: • day/night time • day/night temperature • time • language Reset Reset • mode To start your Nectar Sun you need to set a time. 30 min. after Reset you can pair the device with wifi.
-
Page 11: Specifications
SPECIFICATIONS PHOTOVOLTAIC HEAT CONTROLER PVHC – 2.01 ELECTRICAL PARAMETERS Voltage range 90 - 264VAC / 47 - 63Hz Max, output current Overvoltage protection Overcurrent protection INPUT (DC) 1500 – 2500 Wp Recommended max PV power Max. input voltage (Voc PV) 350 V Max. -
Page 12: Eu Declaration Of Conformity
EU Declaration of Conformity PHOTOVOLTAIC HEAT CONTROLER PVHC – 2.01 Vendor’s name: LTD Saulės Grąža Saulėtekio al. 15, LT-10224, Vilnius, Lithuania Product description: Photovoltaic heat controller Type designation: PVHC-2.01 This is to confirm that the unit stated above is compliant with the protection requirements set forth in Directive 2004/108/EC of the European Parliament and of the Council of 15 December 2004 on the approximation of the laws of the Member States relating to electromagnetic compatibility (Electromagnetic Compatibility Directive) and Directive... - Page 13 Upon request the consumer may be required to provide the purchase receipt or other documentation or information in respect of the date and place of purchase. If the event that the information is not presented or if it is incomplete or illegible, Nectar Sun reserves the right to refuse the warranty service.
- Page 14 PHOTOVOLTAIC HEAT CONTROLER PVHC – 2.01 TROUBLE SHOOTING GUIDE We recommend to call a specified professional or electrician to repair the device. Cause(s) Solution(s) Device doesn’t turn on when Check if the socket has voltage. plugged in 230V socket If it proved to be true, disconnect device from AC socket, remove cover and check main power grid fuse that is...
