Page 1: Wireless Speaker

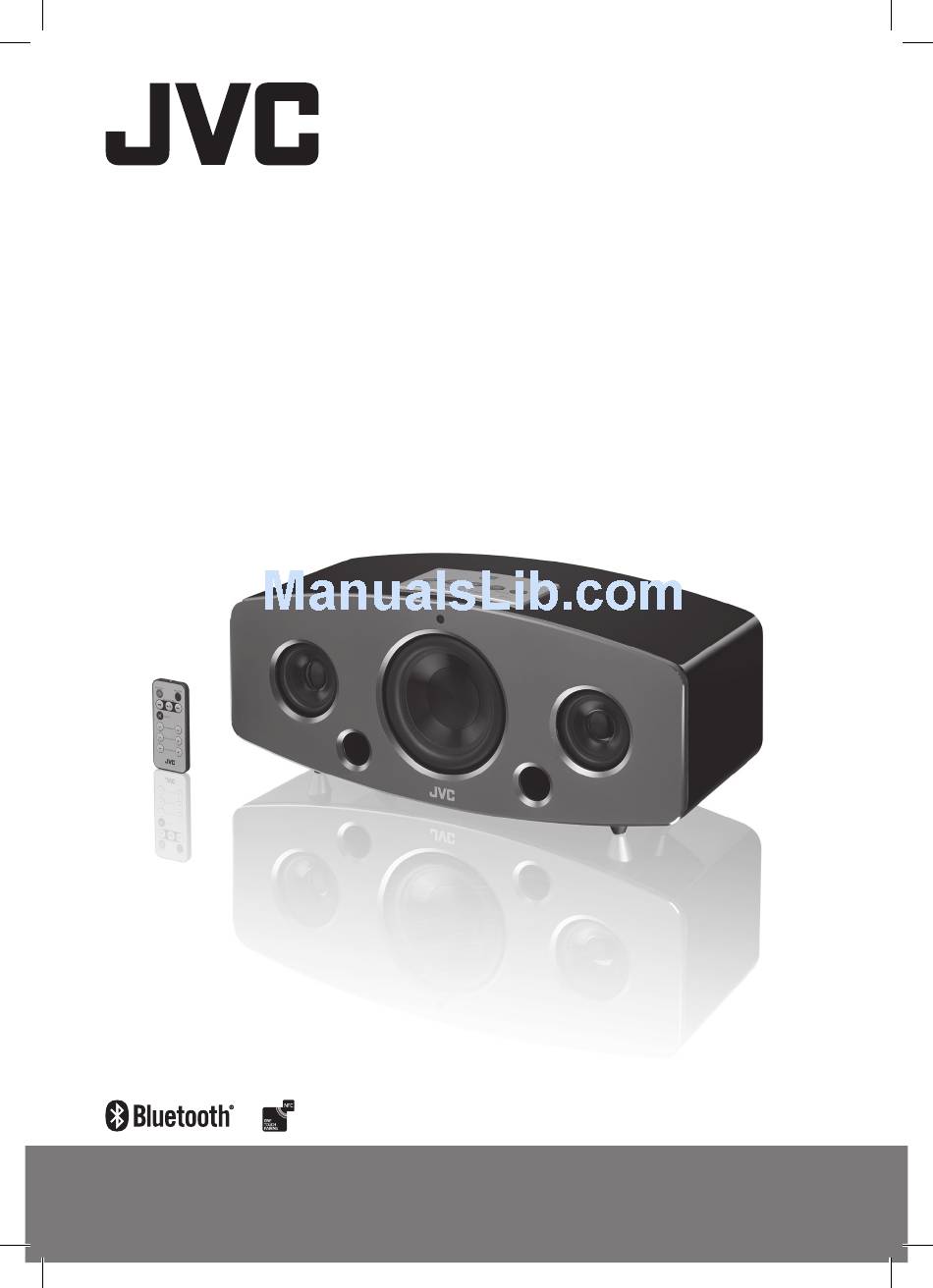

Instruction Manual WIRELESS SPEAKER WIth NFC oNE-touCh PAIRINg SP-AD300 For help and support call UK: 0344 561 1234 • Ireland: 1890 818 575 SP-AD300_IB.indd 1 17/04/2015 10:41... - Page 2 SP-AD300_IB.indd 2 17/04/2015 10:41...
-
Page 3: Table Of Contents
Contents Safety Warnings ........................4 Unpacking ..........................6 Product Overview ........................7 Main Unit .................................7 Remote Control ............................8 Installing the Batteries into the Remote Control .............9 Removing the insulating strip .........................9 Battery Replacement for the Remote Control ..................9 Remote Control Operation Range ...................... 10 Connecting to the Mains ....................10 Basic Operating ........................11 Switching ON / OFF ...........................11... -
Page 4: Safety Warnings
Safety Warnings • Read all the instructions carefully before that curtains and other materials do not using the speaker and keep them for future obstruct the ventilation vents. reference. • A minimum distance of 5 cm around the • Retain the manual. If you pass the speaker speaker should be maintained to allow for onto a third party make sure to include this sufficient ventilation. - Page 5 has been swallowed. To prevent the • Please dispose of batteries correctly by following the guidance in this manual. spread of fire, Supervision keep candles • Children should be supervised to ensure or other open that they do not play with the speaker and the remote control.
-
Page 6: Unpacking
Thank you for purchasing your new JVC Wireless Speaker. We recommend that you spend some time reading this instruction manual in order that you fully understand all the operational features it offers. You will also find some hints and tips to help you resolve any issues. -
Page 7: Product Overview
Product Overview Main Unit Front View 1. IR Sensor 2. Subwoofer Speaker 3. Speakers Top View 4. STANDBY button 8. VOLUME +/- buttons Press to switch the speaker in Press to adjust the volume and out of standby mode. level. You may also need to adjust the volume on the 5. -
Page 8: Remote Control
Back View 1. USB socket 3. Mains cable For connection of iPhone/ 4. POWER ON/OFF button iPad/iPod for playback and Switches the power on or off. charging of mobile devices. 2. Aux In socket For connecting external devices. Remote Control STANDBY Button Button • Press the skip back to the last track. -
Page 9: Installing The Batteries Into The Remote Control
Installing the Batteries into the Remote Control Removing the insulating strip Remove the insulating plastic strip from the battery if the battery is being used for the first time. It is located at the bottom back side of the remote control. Battery Replacement for the Remote Control The remote control requires a CR2025, 3V Lithium battery. -
Page 10: Remote Control Operation Range
Remote Control Operation Range • Point the remote control at the speaker no more than 5 meters from the remote control sensor and within 60° of the front of the speaker. • Please note that the operating distance may vary depending on the brightness of the room. -
Page 11: Basic Operating
Basic Operating Switching ON / OFF Ensure that the plug is switched on at the wall socket, then switch the POWER ON/OFF • switch at the rear of the speaker to the ON position. • To turn the speaker on, either press the STANDBY button on the remote control or press the STANDBY button on the speaker. -
Page 12: Bluetooth® Operation
2. Activate Bluetooth on the device to be connected and select search mode. 3. “SP-AD300” will appear on the list of Bluetooth devices. Type in the password “0000” if requested. 4. There will be a sound once the connection is complete and the indicator light with stop flashing. -
Page 13: Nfc Operation
NFC Operation NFC is a one touch way of pairing your NFC device via Bluetooth to your speaker. 1. The speaker must be in STANDBY or Bluetooth mode to pair using NFC. Check your device has NFC enabled. 2. Place the NFC sensor area on the device close to the speaker’s NFC sensor area (it will work best within 10mm). -
Page 14: Connecting An Nfc Device With One Already Connected
Connecting an NFC Device with one Already Connected You can only connect one NFC device at a time. If an NFC device is already connected, the connected device must be disconnected before you can connect another NFC device. This is to prevent some from changing the music you are playing without your permission. 1. -
Page 15: Iphone / Ipad / Ipod Operation
iPhone / iPad / iPod Operation This speaker can support the following iPhone/iPad/iPod models. Type Support Model iPhone • iPhone, iPhone 3G/3GS, iPhone 4/4S, iPhone 5, iPhone 6/6 Plus iPod • iPod touch 1 Generation • iPod Classic (with 30-pin dock • iPod nano 2 connectors) Generation... -
Page 16: Aux Operation
Aux Operation 1. Make sure the speaker is disconnected at the mains socket. 2. Use a supplied 3.5mm to 3.5mm AUX cable to connect your audio device through the AUX IN socket at the rear of the speaker. 3. Connect the mains plug to the mains socket and switch the POWER ON/OFF switch at the rear of the speaker to the ON position. -
Page 17: Hint And Tips
Hint and Tips If a problem does occur, it may often be due to something very minor. The following table contains various tips. If you require additional assistance please call our UK Call Centre on 0344 561 1234. Our UK Customer Contact Centre is open 24/7. Problem Cause / Solution Power... -
Page 18: Specifications
Specifications Model SP-AD300 AC power AC 100-240V ~50/60Hz Speaker output power 2 x 20W (L/R Speakers) 60W (Woofer) Power consumption 130 W Standby power consumption ≤ 0.5 W Bluetooth compatibility 2.1EDR (Enhanced Data Rate) Dimensions Approx. 455(L) x 190(W) x 190(H) mm Features and specifications are subject to change without prior notice. -
Page 19: Useful Information And Licences
Useful Information and Licences For general information about this appliance and handy hints and tips, please visit www.knowhow.com/knowledgebank or call 0344 561 1234. Visit Partmaster.co.uk today for the easiest way to buy electrical spares and accessories. With over 1 million spares and accessories available we can deliver direct to your door the very next day. - Page 20 Maylands Avenue, Hemel Hempstead, Herts., HP2 7TG, UK For Help and Support Call 0344 561 1234 The product is distributed and warranted exclusive by DSG Retail Ltd. “JVC” is the trademark of JVC KENWOOD Corporation, used by DSG Retail Ltd. under license. (IB-SP-AD300-170416V1) SP-AD300_IB.indd 20 17/04/2015 10:41...
