Table of contents 1 Safety instructions..........................4 1.1 Precautions for use........................4 1.2 Symbols used..........................4 2 Presentation of the device........................5 2.1 Use..............................5 2.2 Applications...........................5 2.3 Description of the device.......................5 2.4 Description of the keys........................5 2.5 PC connection..........................5 2.6 Fixation............................6 3 Technical features..........................6 3.1 Devices............................6 3.2 Housing............................7 3.3 Dimensions...........................7... -
Page 4: Safety Instructions
1.1 Precautions for use Please always use the device in accordance with its intended use and within parameters described in the technical features in order not to compromise the protection ensured by the device. 1.2 Symbols used For your safety and in order to avoid any damage of the device, please follow the procedure described in this user manual and read carefully the notes preceded by the following symbol: The following symbol will also be used in this user manual: Please read carefully the information notes indicated after this symbol. -
Page 5: Presentation Of The Device

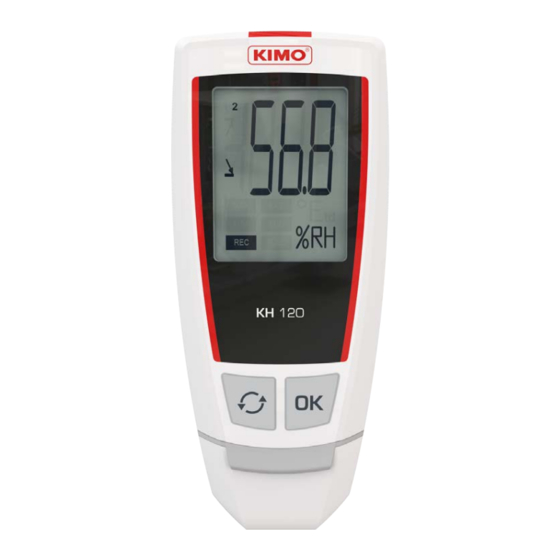

2.1 Use The KT 120 and KH 120 dataloggers of the HVAC range allow the internal measurement of temperature only (KT 120) or of temperature and humidity (KH 120). This class of devices is dedicated to the food transport. The devices have a male USB plug and an integrated software in PDF format which enables to download and configure the datalogger without specific software. -
Page 6: Fixation
2.6 Fixation The KT 120 and KH 120 KISTOCK dataloggers have a magnetic mounting, so you can fix it easily. Magnetic mounting 3.1 Devices KT 120 KH 120 Units displayed °C, °F °C, °F, %RH Resolution 0.1°C, 0.1°F 0.1°C, 0.1°F, 0.1%RH... -
Page 7: Housing
Dimensions of screen: 32 x 25.5 mm 1 OK key Control 1 Selection key Compatible with food industry environment Material ABS housing IP65: KT 120 Protection IP40: KH 120 PC communication 1 USB A male input Battery power supply 1 x CR2450 (button battery) -
Page 8: Use Of The Device
4.1 Display DATASET is finished Indicates that one value is being recorded. It flashes: the DATASET did not start already. FULL Flashing slowly: DATASET is between 80 and 90 % of the storage capacity. Flashing quickly: DATASET is between 90 and 100 % of the storage capacity. Constant: storage capacity full. - Page 9 Device Type of start/stop Action Illustration state selected used generated Start: indifferent Dataset stop During 3 During 3 seconds seconds Stop: by key Start: indifferent Dataset Group change progress (groups 2 and Stop: indifferent Start: indifferent Groups scrolling (groups 1, 2 and 3)* Stop: indifferent Indifferent...
-
Page 10: Groups Organisation
4.2.1 Groups organisation The table below summarises the groups organisation and measured values available during a measurement dataset. Group 1 Group 2 Group 3 Max. value in temperature High alarm threshold in temperature Measured temperature Min. value in temperature Low alarm threshold in temperature Max. - Page 11 - The datalogger - The recording mode - The stop conditions of the record “Channel parameters” allows to configure the channels of temperature (KT 120 and KH 120) and hygrometry (only with the KH 120). Choose the language • Select the required language: Choose the date format •...
- Page 12 “Number of points”. Channel parameters Temperature (KT 120 and KH 120) and humidity (only the KH 120) - Choose the temperature measurement unit: tick the “°C” or “°F” box. - Active channel: tick “Yes” to activate the channel or “No” to deactivate it.
-
Page 13: Datalogger Download With Pdf Report Edition
➢ When the configuration is finished, click on the button to validate. ➢ Chose the place to save the configuration: to use this configuration for the next dataset, save the configuration directly on the datalogger on “Removable disk”. Check that the dataset is finished to ensure the new configuration is taken into account. A message asks you to overwrite the existing file. -
Page 14: Configuration, Datalogger Download And Data Processing With The Kilog Software
Example of report: State indicators: The header indicates : Alarm activated the date and time of : Alarm deactivated the report edition : Alarm OK : Alarm triggered Device references Serial number and The background firmware version information indicates The channel the dataset name and statistics indicate the... -
Page 15: Device Maintenance
5.1 Replace the battery With 500 days to 3 years* battery life, KISTOCK guarantees long-term measurement. To replace the battery: Button battery CR 2450 1. Unlock the battery hatch with a screwdriver or a coin. 2. Turn towards the left until the marker aligns in front of the opened padlock symbol. 3. -
Page 16: Calibration
Accessories Part numbers Illustrations 1 button battery CR2450 KBL-2450 KILOG Lite Free software to download on the KIMO website (kimo.fr/kilog). KILOG-LITE Allows the data download (graphics and points statement) and the datalogger configuration. KILOG software KILOG-3-N KILOG software enables to configure, save and process your data in a very simple way. - Page 20 BE CAREFUL! Material damages can happen, so please apply the precautionary measures indicated. Once returned to KIMO, required waste collection will be assured in the respect of the environment in accordance to guidelines relating to WEEE.
