Summary of Contents for Swegon Connect

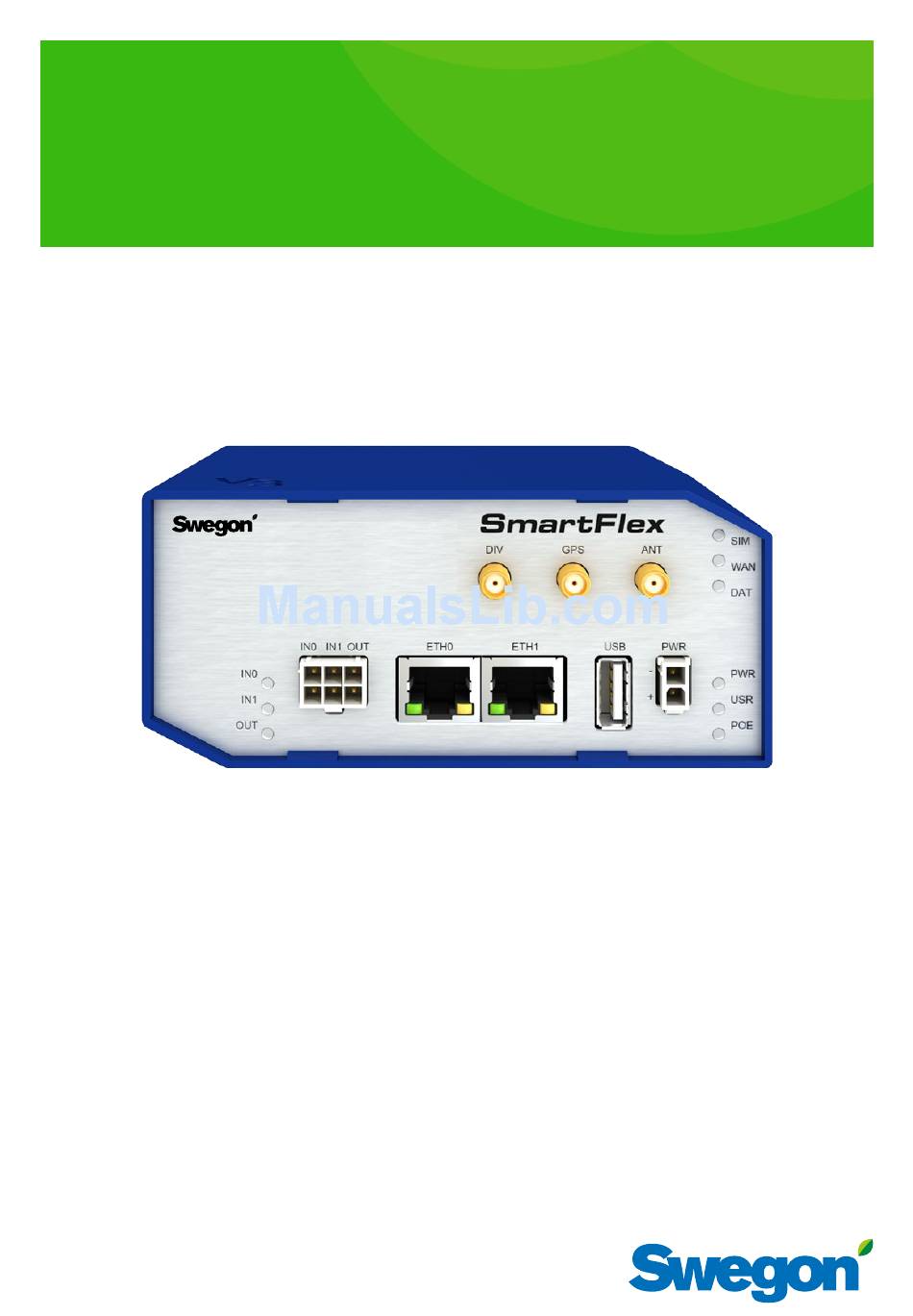

- Page 1 Swegon Connect Installation instructions Contents of package • Router (pre-mounted SIM card included) • Power supply • Crossover UTP cable • External antennas • Holder for DIN rail mounting • Installation instructions...
-
Page 2: First Use
Swegon Connect Mount and use First use Before you put router into operation, it is necessary to connect components that are needed to run your application. Antenna SmartFlex Connect the external antenna to the ANT connection on the router. Please use the accessory TBRX-1-12, either 1 or 10 meters, if you need to extend the antenna cable. -
Page 3: Router Status
Yellow — See Swegon Connect web manual for detailed information Blinking Communication in progress on radio channel See Swegon Connect web manual for detailed information about all LED indicators. ETH0 ETH1 IN0 IN1 OUT Setting up the router See Swegon Connect web manual for instructions. The document can be downloaded from www.swegon.com... - Page 4 0–95 % Dimensions (W x H x D) 55 x 97 x 125 mm Weight 310 g * Swegon Connects router is of the model – Advantech Cellular LTE Router (SR30300011) We reserve the right to alter specifications. 20170622...
