HABITECH Flow7 Installation Manual

7” in-wall poe android

Flow7

7" In-Wall PoE Android

Touch Screen

Flow7 is a High Resolution in-wall Android touch panel designed for use with any control

system that has an Android application. It has an integrated safety power/charging system

which is powered by Power over Ethernet (PoE AF) using a single CAT5/6 cable and a

compatible IEEE 802.3af Class 3 PoE switch or injector.

Flow7 can be easily installed in both new and retrofit situations. The compact charging

system fits in a wall box as small as a 25mm deep UK single, while the adjustable

mounting plate can be adjusted horizontally to avoid obstructions (door frames, switches).

Installation can be either horizontal or vertical in a UK Single or Double or US Double-J wall

box. The mounting plate has screw holes to increase rigidity on uneven walls with smaller

installation boxes.

Retrofit: remove existing keypad or touch screen and ensure wall box is clear of debris.

Make sure CAT cable is terminated correctly with an RJ45 plug wired to T-568-B at both

ends and use a suitable CAT tester to test the cable and termination integrity.

New installation: (ideally) install a 35mm deep UK double electrical wall box to allow the

most rigid and easy installation. Make sure the wall box is clear of debris and any

decorative work around the box is set and dry. Run a CAT5e cable from the central

equipment location and terminate both ends of the cable with an RJ45 plug wired to T-

568-B at both ends and use a suitable CAT tester to test the cable and termination

integrity.

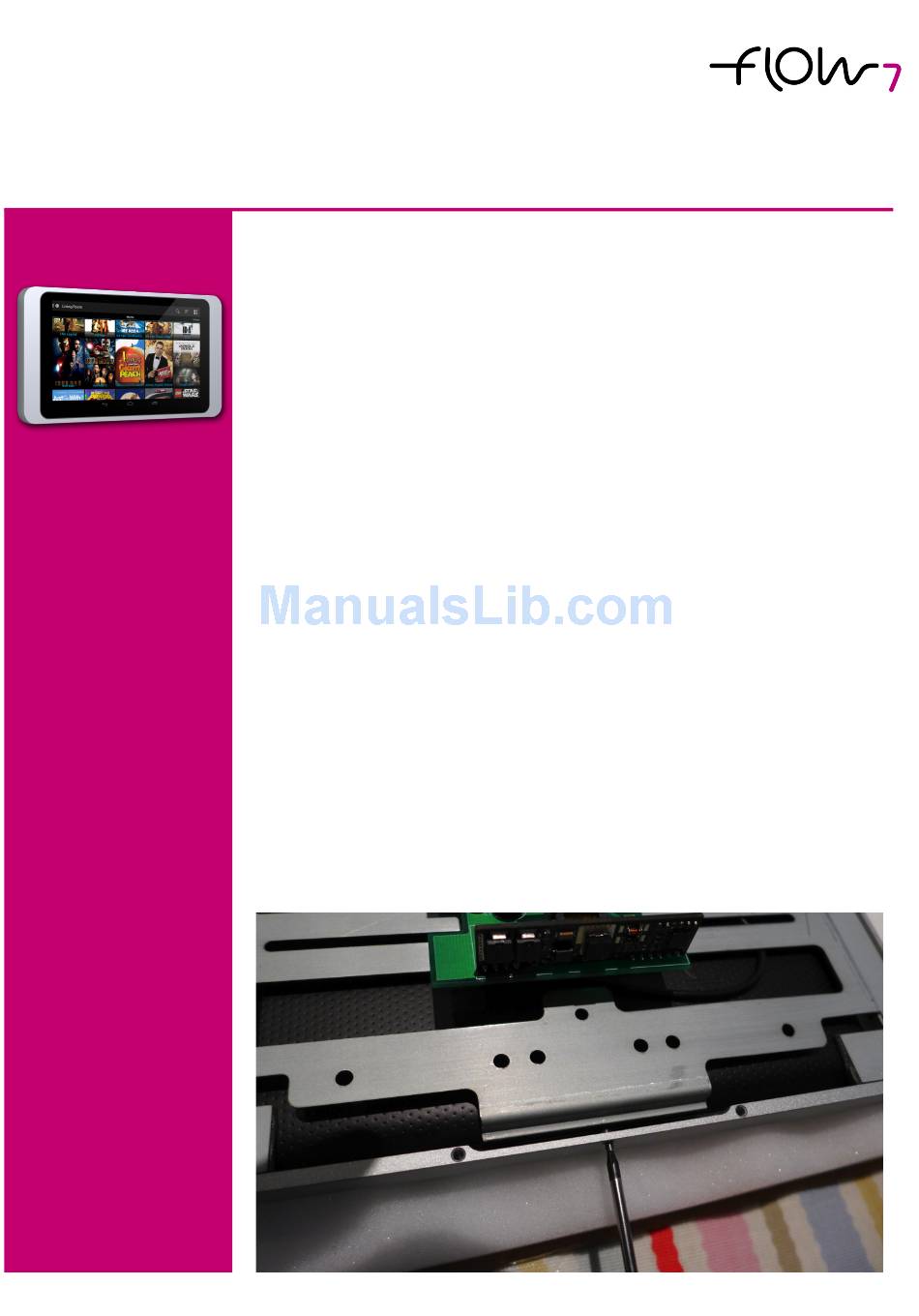

1. Remove Flow7 from the packaging and remove the mounting plate retaining set screw

using a suitable AF1.5 driver

Table of Contents

Do you have a question about the Flow7 and is the answer not in the manual?

Page 1: Touch Screen
Introduction Flow7 is a High Resolution in-wall Android touch panel designed for use with any control system that has an Android application. It has an integrated safety power/charging system which is powered by Power over Ethernet (PoE AF) using a single CAT5/6 cable and a compatible IEEE 802.3af Class 3 PoE switch or injector.
Page 2 2. Remove the mounting plate and carefully unplug the USB power cable from the power board. 3. Slightly loosen the front tensioned screws which mount the power board to the mounting plate, so that the power board position can slide for horizontal adjustment. 4.
Page 3 5. Slide the power module in to place so that it ends up located centrally in the wall box. Use suitable wall box mounting screws (M3.5 for UK boxes) and screw the mounting plate to the wall box. Do not o ve rtig hte n the s crews , whic h w ill d is to rt the mo unting pl ate.
Page 4 Once downloaded from the Play Store the recommended settings for wakelock are: It is also recommended in the options menu that Autostart on Boot and Notification are enabled. This will ensure, in the event of a long power outage, that the Flow7 panel will “Stay awake” after initial power-on.
