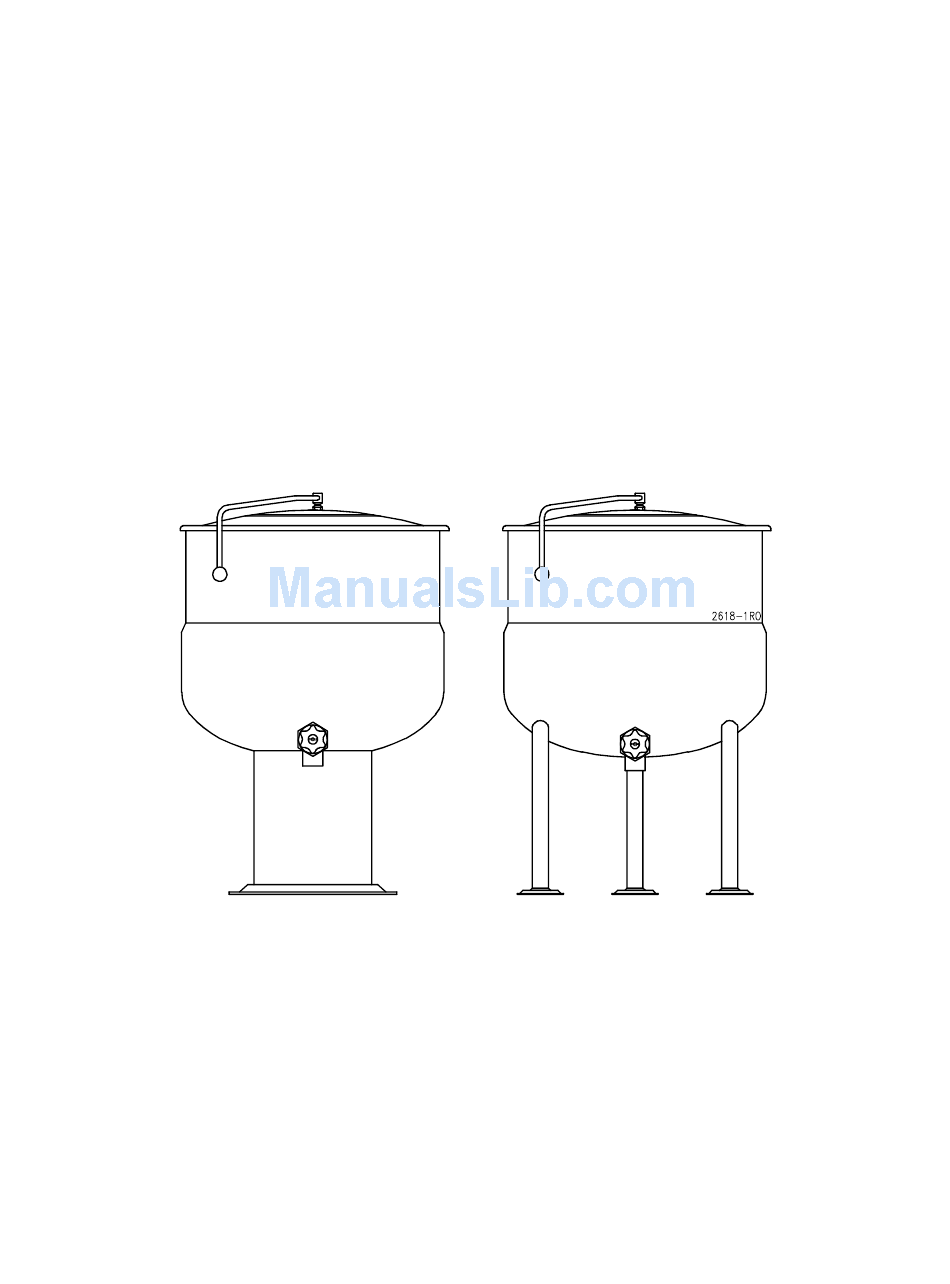

- Page 1 INSTALLATION AND OPERATION MANUAL DIRECT STEAM STATIONARY KETTLES MODELS: DL - 20, 30, 40, 60, 80, 100 GALLON DP - 20, 30, 40, 60, 80, 100 GALLON WWW.SOLARISSTEAM.COM PART NUMBER 10075R2 2007-01-03...
- Page 2 INSTALLATION AND OPERATION MANUAL - DIRECT STEAM STATIONARY KETTLES, MODELS DL-20, 30, 40, 60, 80, 100 GALLON, DP-20, 30, 40, 60, 80, 100 GALLON IMPORTANT NOTES FOR INSTALLATION AND OPERATION It is recommended that this manual be read thoroughly and that all instructions be followed carefully.
-
Page 3: Table Of Contents
INSTALLATION AND OPERATION MANUAL - DIRECT STEAM STATIONARY KETTLES, MODELS DL-20, 30, 40, 60, 80, 100 GALLON, DP-20, 30, 40, 60, 80, 100 GALLON TABLE OF CONTENTS DESCRIPTION PAGE Service Connections ........... . 4 2.0 Installation Instructions . -
Page 4: Service Connections
INSTALLATION AND OPERATION MANUAL - DIRECT STEAM STATIONARY KETTLES, MODELS DL-20, 30, 40, 60, 80, 100 GALLON, DP-20, 30, 40, 60, 80, 100 GALLON 1.0 SERVICE CONNECTIONS PART NUMBER 10075R2 2007-01-03... - Page 5 INSTALLATION AND OPERATION MANUAL - DIRECT STEAM STATIONARY KETTLES, MODELS DL-20, 30, 40, 60, 80, 100 GALLON, DP-20, 30, 40, 60, 80, 100 GALLON 1.0 SERVICE CONNECTIONS (Continued) PART NUMBER 10075R2 2007-01-03...
-
Page 6: Installation Instructions
INSTALLATION AND OPERATION MANUAL - DIRECT STEAM STATIONARY KETTLES, MODELS DL-20, 30, 40, 60, 80, 100 GALLON, DP-20, 30, 40, 60, 80, 100 GALLON 2.0 INSTALLATION INSTRUCTIONS Select a location to provide drainage directly below the tangent Draw-off Valve. Mark hole locations through flanged adjustable feet on DL models and through pedestal base on DP models. -
Page 7: Introduction
INSTALLATION AND OPERATION MANUAL - DIRECT STEAM STATIONARY KETTLES, MODELS DL-20, 30, 40, 60, 80, 100 GALLON, DP-20, 30, 40, 60, 80, 100 GALLON 3.0 INTRODUCTION DESCRIPTION All Crown direct connected steam jacketed kettles pertaining to this manual are direct steam operated pressure vessels of a double-wall stainless steel construction forming a steam chamber (jacket) enveloping the lower two thirds of the kettle bowl surface. -
Page 8: Operating Instructions
INSTALLATION AND OPERATION MANUAL - DIRECT STEAM STATIONARY KETTLES, MODELS DL-20, 30, 40, 60, 80, 100 GALLON, DP-20, 30, 40, 60, 80, 100 GALLON OPERATING INSTRUCTIONS CAUTION: The appliance and its parts are hot. Use care when operating, cleaning and servicing the appliance. -
Page 9: Cleaning Procedures
INSTALLATION AND OPERATION MANUAL - DIRECT STEAM STATIONARY KETTLES, MODELS DL-20, 30, 40, 60, 80, 100 GALLON, DP-20, 30, 40, 60, 80, 100 GALLON 5.0 CLEANING PROCEDURES Your kettle should be cleaned immediately after each use. Ensure that steam supply is OFF. - Page 10 INSTALLATION AND OPERATION MANUAL - DIRECT STEAM STATIONARY KETTLES, MODELS DL-20, 30, 40, 60, 80, 100 GALLON, DP-20, 30, 40, 60, 80, 100 GALLON 5.0 CLEANING PROCEDURES (Continued) Use of cleaning agents that contain chloride, acids or salts are corrosive and may cause pitting and corrosion when used over a period of time;...
-
Page 11: Troubleshooting Maintenance
INSTALLATION AND OPERATION MANUAL - DIRECT STEAM STATIONARY KETTLES, MODELS DL-20, 30, 40, 60, 80, 100 GALLON, DP-20, 30, 40, 60, 80, 100 GALLON 6.0 TROUBLESHOOTING MAINTENANCE PREVENTIVE MAINTENANCE No preventive maintenance is required other than adhering to the Cleaning Procedure instructions. - Page 12 INSTALLATION AND OPERATION MANUAL - DIRECT STEAM STATIONARY KETTLES, MODELS DL-20, 30, 40, 60, 80, 100 GALLON, DP-20, 30, 40, 60, 80, 100 GALLON 6.0 TROUBLESHOOTING MAINTENANCE VENTING It is recommended that the “optional” steam trap assembly be installed. This should be plumbed to the exit end of the kettle.
