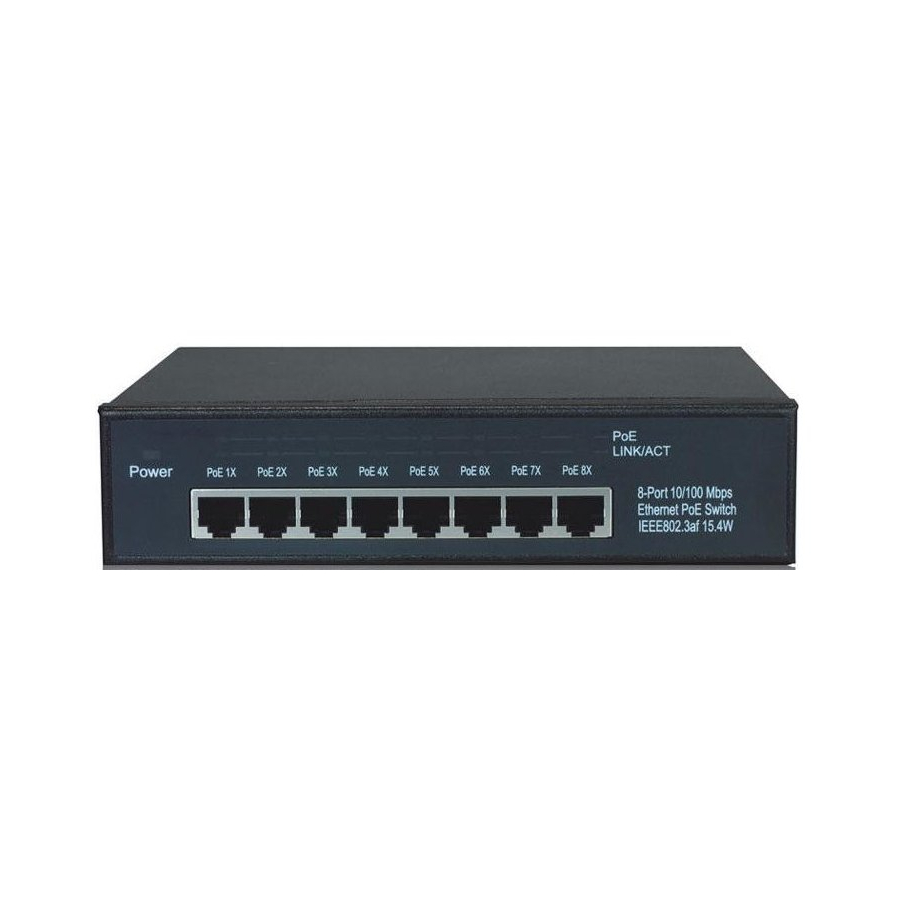

RXTEC RX-PSE808G Quick Installation Manual

8-Ports Gigabit 10/100/1000M PoE Switch (af Version 15.4W)
• Introduction ...........................................................
• Power Over Ethernet (PoE) & Features ......................
• Unpacking and Installation ......... ..............................
• System Requirement....... .......................................
• Front Panel /LED.....................................................
• Hardware Installation... ............. ...............................
• Technical Specification..............................................
• Troubleshooting .......................................................
•FCC Warning:
This device has been tested and found to comply with the regulations for Class B digital equipment. Pursuant to Part
15 of FCC Rules. These limits are designed to provide reasonable protection against harmful interference when
the equipment is operated in a commercial environment. This equipment generates, uses, and can radiate radio
frequency energy and, if not installed and used in accordance with users guide, may cause harmful interference to
radio communications. Operation of this devices in a residential area is likely to cause harmful interference, in which
case the user will be required to correct the interference at his/her own expense.
•CE Mark Warning:
This is a Class B product. In a domestic environment, this product may cause radio interference, in which case the user
may be required to take adequate measures.
•UL Warning:
1> Elevated Operating Ambient Temperature- If installed in a closed or multi-unit rack assembly, the operating ambient
temperature of the rack environment may be greater then room ambient. Therefore, Consideration should be given to
installing the equipment in an environment compatible with manufacturer's maximum rated ambient temperature
2> Reduced Air flow-installation of equipment in a rack should be such that the amount of air flow required for safe
operation of the equipment is not compromised.
3> Mechanical Loading- mounting of the equipment in the rack should be such as that a hazardous
Conditions is not achieved due to uneven mechanical loading.
IMPORTANT
This users guide contains information on the limitations regarding product use and function and
information on the limitations as to liability of the manufacturer. Read the entire guide carefully
8-Port Ethernet Gigabit PoE Switch
Quick Installation Guide

Table of Contents

Rev 1.0 12/01/2013 Page 1 / 7
Page 2
Page 2
Page 3
Page 3
Page 4
Page 5
Page 6
Page 7
