Summary of Contents for Altechna IR-1700V3

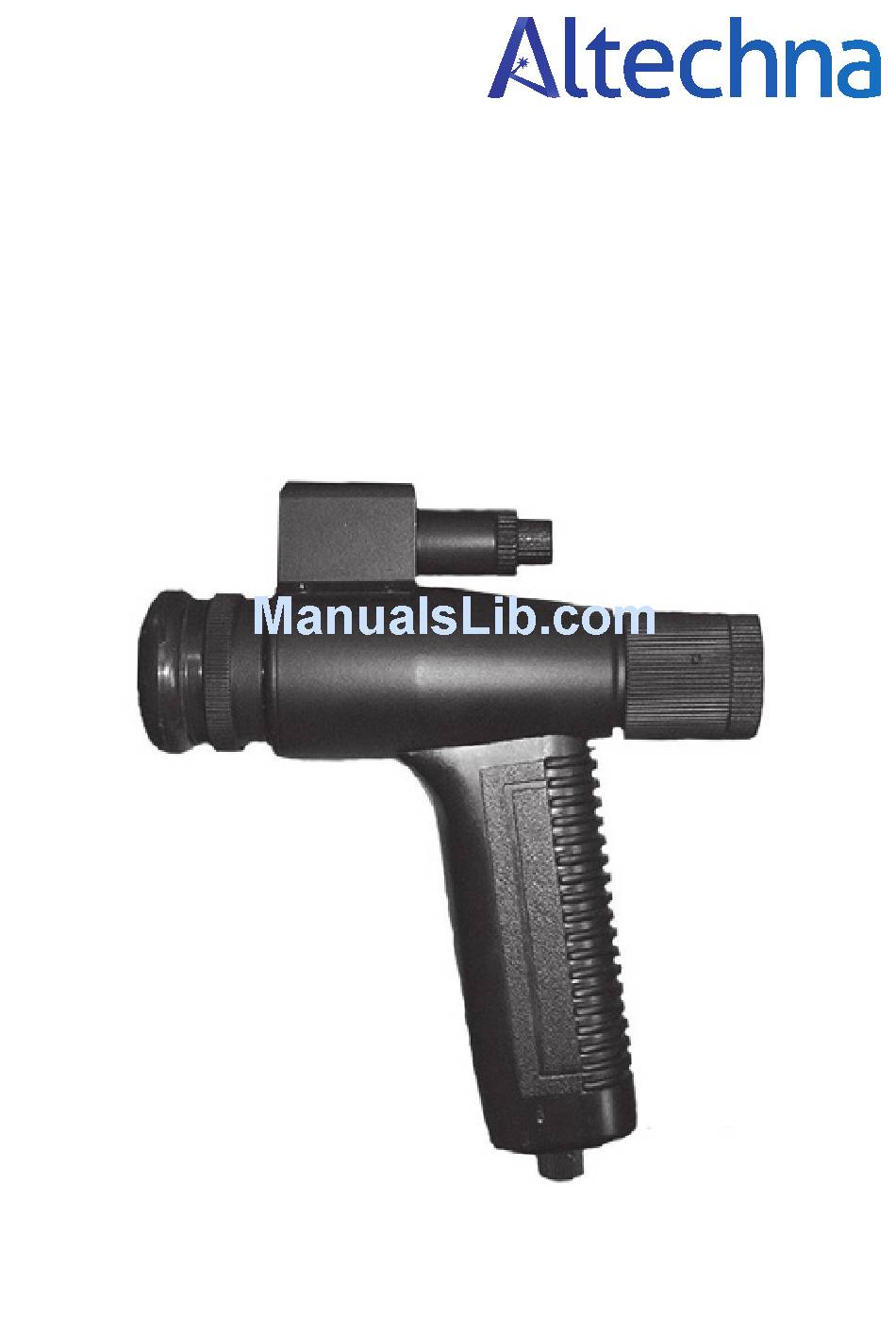

- Page 1 INFRARED VIEWERS M A N uA l...
- Page 2 . used for this purpose . However it takes a long time to align infrared la- ser beam . Altechna offers IR viewer, which helps easily observe the IR Model Wavelength, nm power density, mW/cm radiation, align laser beam and calibrate laser system .
- Page 3 By focusing objective (3) and eyepiece (4) in turn, try to achieve a bright image of the object under observation . 350 - 2000 nm IR-1700V3 and IR-2000V3 viewers allow viewing continuous lasers ra- 350 - 1700 nm diation as well as pulsed lasers radiation with pulse duration from ps to μs without synchronization .
- Page 4 Neutral density filter (2-5% at 1064 nm laser wavelength); Resolution (center) 50 Lp/mm • Adapter to a microscope; Field of view 25 degrees • Adapter to AAA size batteries; Magnification 1 . 8 X • Lens 3 . 5 X (F2/50mm with iris diaphragm) . www.altechna.com www.altechna.com...
- Page 5 . The sole obligations of the manufacturer are repair or replace the covered device . UAB Altechna Mokslininkų st . 6A, 08412 Vilnius, Lithuania Tel. +370 5 2725738 • Fax +370 5 2723704 www.altechna.com E-mail: info@altechna . c om...
