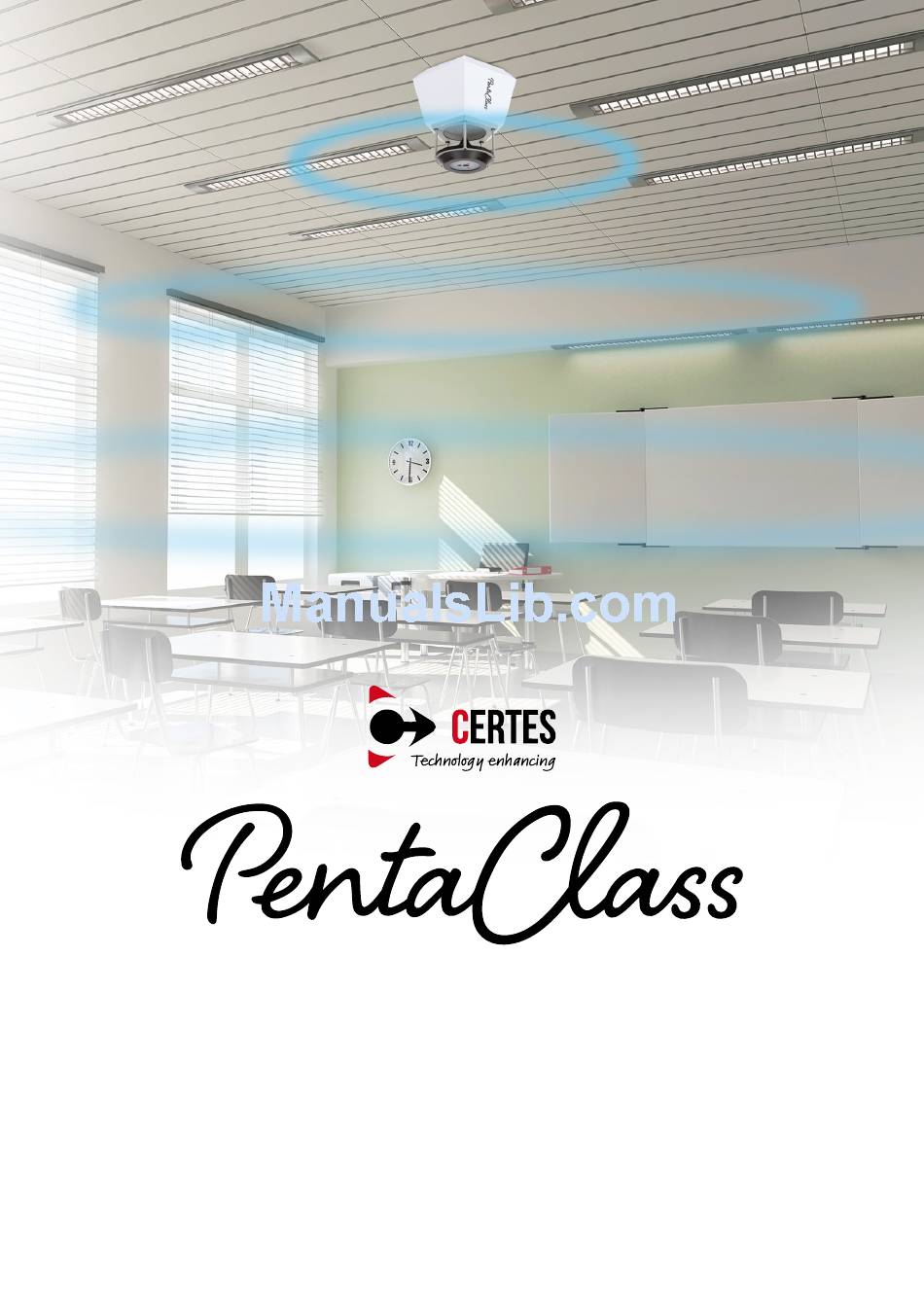

- Page 1 Certes PentaClass A, AB, Runa Users manual...
-
Page 2: Important Safeguards
For UK only: In UK, a BS approved power cord with molded plug has a Black (five Amps) fuse installed for use with this equipment. If a power cord is not supplied with this equipment please contact your supplier. Certes PentaClass Operating Manual... - Page 3 • When the product exhibits a distinct change in performance - this indicates a need for service. REPLACEMENT PARTS When replacement parts are required, be sure that the service technician uses only spare parts approved by Certes. If you are uncertain, contact Certes. Unauthorized substitutions may result in fire, electric shock or other hazards and will void the warranty.
-
Page 4: Before Operating
• If any liquid from a microphone battery leaks onto your skin or clothes, flush the area with clean water immediately. If it gets into your eyes, flush immediately with clean water and then contact a doctor. Certes PentaClass Operating Manual... - Page 5 • Servicing and maintenance must be carried out by authorized service staff only. • Use only spare parts approved by Certes. If you are uncertain, contact Certes. • Make sure the device is securely mounted and installed in accordance with instructions before starting it.
-
Page 6: Table Of Contents
IMPORTANT SAFEGUARDS Before Operating INTRODUCTION What’s in the Box? Introducing Certes PentaClass Features for all Certes PentaClass models NAMES OF CERTES PENTACLASS PARTS Operation of the Main Unit Rear Panel and Cable Connection Names of Remote Control Parts Preparation of Remote Control... - Page 7 Installation Materials / Tools Required Safety Rules for Installation Mounting on the Ceiling Mounting Procedure for Suspended Ceiling Mounting Procedure for Wall DAISY CHAINING TROUBLESHOOTING PENTACLASS TECHNICAL SPECIFICATION Input Source Specifications PentaClass Speaker Specification PentaClass Microphone Specification REGULATORY NOTES Certes PentaClass Operating Manual...
-
Page 8: Introduction
Runa Microphone* Power cord Lanyard* Remote control with battery USB charger 5V1A* Fixation bracket with screws Micro USB cable 1 m* Safety wire User’s manual Plate for false ceiling * included with Certes PentaClass Runa version Certes PentaClass Operating Manual... -
Page 9: Introducing Certes Pentaclass
Enjoy truly rich sounds whenever your audience members are seated in the room. ONE ROOM - ONE SPEAKER Thanks to its special design, just one Certes PentaClass speaker is able to spread sound evenly in a room and is suitable for room sizes of up to 120 m (1300 ft ). -
Page 10: Names Of Certes Pentaclass Parts
Names of Certes PentaClass parts Operation of the main unit Make sure your box contains everything listed. If any pieces are missing contact your dealer. System status indication window and IR sensor location Main Board housing Sound reflector cone Speaker grill with protective frame... -
Page 11: Rear Panel And Cable Connection
• DVD / VHS • Projector • Computer Names of Remote Control Components Infrared Transmitter Power ON/OFF Button Mute Button Volume down Button Volume up Button AUX channel ON/OFF Button Bluetooth channel activation Button Audio Preset Certes PentaClass Operating Manual... -
Page 12: Preparation Of Remote Control
PentaClass. The remote will function well within a radius of about 7 meters (23 feet) and within a 140 degree angle from the PentaClass IR sensor location level. If the PentaClass does not respond to the remote control, move it a little closer. Certes PentaClass Operating Manual... -
Page 13: The Runa Microphone
- microphone is paired to the PentaClass, but the battery is running out and it will last up to 30 minutes • No status indication - microphone is disconnected from the PentaClass, (is not paired), or the Battery has fully discharged Certes PentaClass Operating Manual... -
Page 14: The Runa Microphone Ir Remote Control Operating Range
The remote will function well within a radius of about 7 meters (23 feet) and within a 140 degree angle from the PentaClass IR sensor location level. If the PentaClass does not respond to the remote control, move a little closer. Certes PentaClass Operating Manual... -
Page 15: Certes Pentaclass Models
PentaClass A is a specially designed multimedia system for classrooms with an omnidirectional 360º sound field. This PentaClass A utilizes audio cables for delivering the audio signals to the speaker. It is suitable for classrooms or meeting rooms where there is no need for voice amplification or wireless Bluetooth connectivity. -
Page 16: Pentaclass Ab
Bluetooth-enabled devices. PentaClass AB is recommended for rooms where voice amplification is unnecessary. Because the PentaClass is a modular system you can make the following upgrades: • Certes PentaClass AB upgrade to Certes PentaClassRuna, (Microphone version with Bluetooth). Simply purchase the Microphone upgrade pack (part no. 106100 Microphone). NOTE Upgrades should only be installed by trained dealer personal or authorized repair service. -
Page 17: Pentaclass Runa
The wireless 2.4 GHz Runa microphone, (which is designed for comfortable all day use), the Bluetooth connectivity and all the many other features allow you to experience all the benefits offered by PentaClass. Certes PentaClass AB upgrade to Certes PentaClass Runa, (Microphone version with Bluetooth). Simply purchase the Microphone upgrade pack (part no. 106100 Microphone). -
Page 18: Pentaclass Microphone
Thanks to its small form factor, the microphone can be worn with a lanyard or clip. Just choose the option that suits you best. MICROPHONE LANYARD The Certes Runa microphone lanyard is designed for frequent and comfortable use. Its length is adjustable and has a safety break-away clip. Please see the pictures describing how to attach the lanyard to the microphone: Adjust the length by using plastic cord lock. - Page 19 In Microphone mode arrow Button 1 serves as Volume Up and arrow Button 2 serves as Volume Down. The center power ON/OFF button disconnects pairing. NOTE When your Runa is connected to the PentaClass speaker, the Audio EQ is set to voice preset automatically by default. Certes PentaClass Operating Manual...
-
Page 20: Operational Description
Connecting to the PentaClass Using Bluetooth Only PentaClass AB and PentaClass Runa versions have Bluetooth connectivity. The PentaClass A version has no Bluetooth connectivity unless you have upgraded your PentaClass A version with the Bluetooth Kit (part no. 100111 Bluetooth module). -
Page 21: Connecting Microphone To The Pentaclass
Please check carefully to be certain that the local Wi-Fi network doesn’t interfere with a paired PentaClass system before installation. • If the link is lost between the microphone and PentaClass speaker the radio module will try to re-establish the connection within 15 seconds. Certes PentaClass Operating Manual... -
Page 22: Power Saving Mode
Power Saving Mode To save on power, the Certes PentaClass audio system has an automatic sleep function that engages after 20 minutes of inactivity. The Runa microphone will go into automatic sleep mode when it is not linked to the PentaClass speaker for a 1 minute. -
Page 23: Volume Adjustment
Runa microphone by plugging it into the 2.5mm audio input located at the bottom of your Runa microphone. When the external microphone is being used the Runa serves as a tiny wireless microphone transceiver and can be put conveniently into your pocket if you wish. Certes PentaClass Operating Manual... -
Page 24: Audio Presets
While the PentaClass is turned OFF push the Bluetooth channel activation button on the remote control (› page 11), - The PentaClass will display a white light. Your PentaClass has now been reset to its factory settings. Certes PentaClass Operating Manual... -
Page 25: Installation
Good placement high humidity or physical obstructions. Do not place the on a table speaker near a projector exhaust port or fan. The hot air from the projector can cause overheating and failure of your PentaClass speaker. Certes PentaClass Operating Manual... -
Page 26: Installation Materials / Tools Required
When the PentaClass is inserted into the bracket, turn the PentaClass so that the power and audio cables can be inserted easily. Tighten the two fixation screws from sides. Use the safety wire to be sure the PentaClass speaker will not fall. Certes PentaClass Operating Manual... -
Page 27: Mounting Procedure For Suspended Ceiling
Fixation screws (x2) Always attach the safety wire to the speaker as shown in the picture in page 26. Carefully affix the other end of the safety wire to a secure surface with the proper fixation screw. Certes PentaClass Operating Manual... -
Page 28: Mounting Procedure For Wall
High Voltage Connection If applicable do not connect the PentaClass speaker to the power supply until the ceiling installation is completed! Use only a genuine PentaClass power supply unit. The supply unit input voltage is: 100-240VAC, Certes PentaClass Operating Manual... -
Page 29: Daisy Chaining
One remote control can be used to control the daisy chained units. Please note that if you point the remote control towards the one PentaClass it can send IR commands to another PentaClass as well. The volume for all daisy chained PentaClass speakers can be adjusted simultaneously by adjusting the audio source device's volume. Certes PentaClass Operating Manual... -
Page 30: Troubleshooting
24 x 24 x 23 cm (9.45 x 9.45 x 9.06 in) Weight 3 kg (6.61 lbs) Mounting Universal wall/ceiling mount for drop and concrete ceilings supplied Included accessories Power supply, power cord, remote control, wall / ceiling mount, user manual Certes PentaClass Operating Manual... -
Page 31: Pentaclass Microphone Specification
3 multifunctional buttons (Microhone on/off, Mute, Microhone volume up, Microhone volume down) Wearing options Lanyard or clip Included accessories 1x USB Charger, 1x Lanyard, 1x USB-micro USB Cable Features and specifications are subject to change without prior notice. Certes PentaClass Operating Manual... -
Page 32: Regulatory
Equipment Authorization for this model device with all reported SAR levels evaluated as in compliance with the FCC RF exposure guidelines. SAR information on this model device is on file with the FCC and can be found under the Display Grant section of fcc.gov/oet/ea/fccid after searching on FCC ID: 2AFZR-CTPR2 Certes PentaClass Operating Manual... - Page 33 CE Confirmation of compliance Certes Technologies declares that PentaClass models A, AB, and Runa has been manufactured in accordance with following directive: • 2004/108/EG EMC Directive Electromagnetic Compatibility (EMC-directive) •...
-
Page 34: Notes
Notes Certes PentaClass Operating Manual... - Page 35 Certes PentaClass Operating Manual...
- Page 36 Certes Technologies Phone: (+371) 6761 5096 Mukusalas street 41b, Riga, LV-1004, Latvia E-mail: info@certestechnologies.com...
