Summary of Contents for ApexWaves Tektronix RSA607A

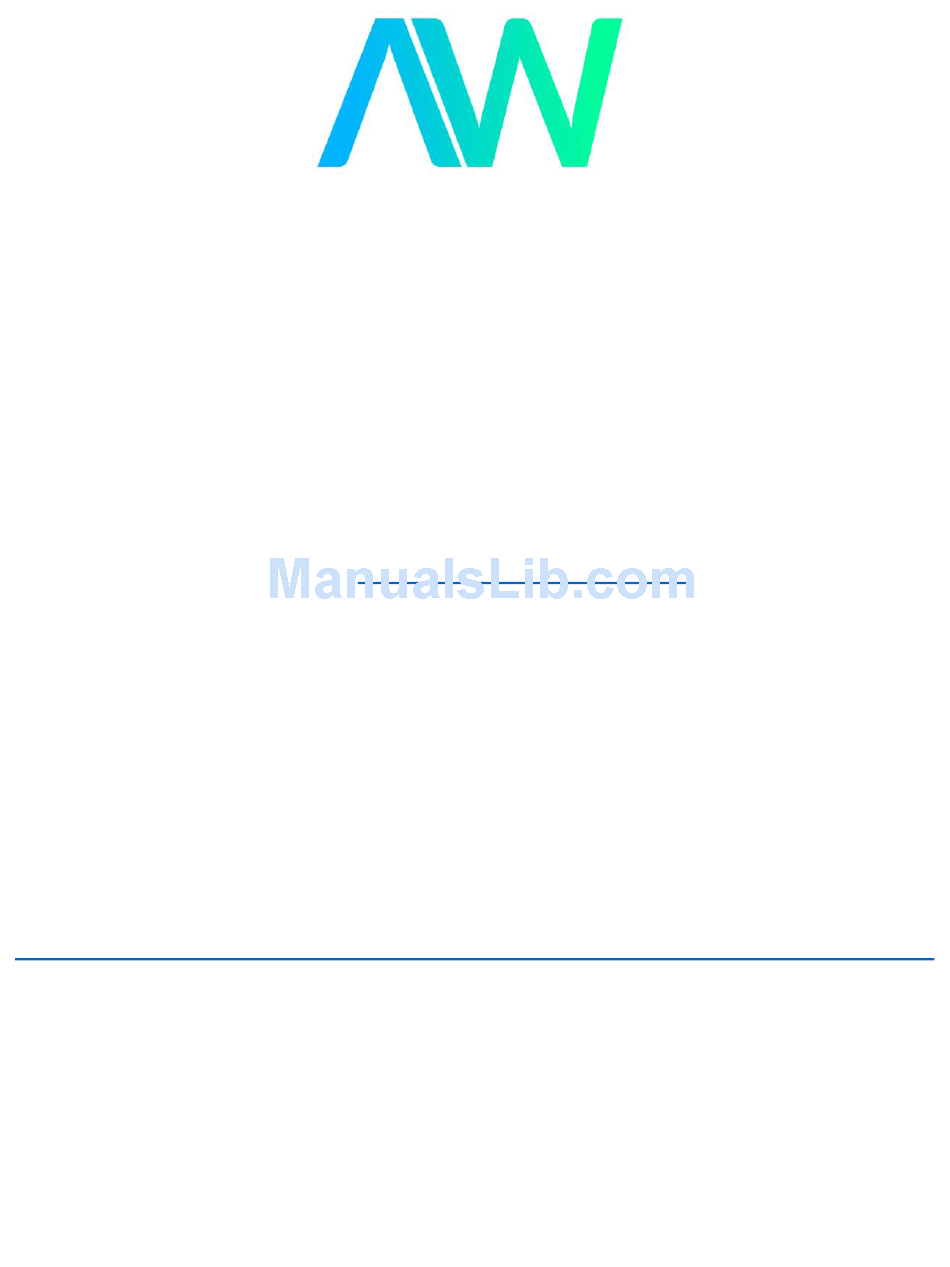

Page 1 Tektronix RSA607A Manual Get Pricing & Availability at ApexWaves.com Call Today: 1-800-915-6216 Email: sales@apexwaves.com https://www.apexwaves.com/analyzers/tektronix-inc/rsa600/RSA607A...
Page 2 RSA603A and RSA607A Real-Time Spectrum Analyzers Installation and Safety Instructions *P071346000* 071-3460-00...
Page 4 RSA603A and RSA607A Real-Time Spectrum Analyzers Installation and Safety Instructions Register now! Click the following link to protect your product. ► www.tektronix.com/register www.tek.com 071-3460-00...
Page 5 Copyright © Tektronix. All rights reserved. Licensed software products are owned by Tektronix or its subsidiaries or suppliers, and are protected by national copyright laws and international treaty provisions. Tektronix products are covered by U.S. and foreign patents, issued and pending. Information in this publication supersedes that in all previously published material.
Page 6 Warranty Tektronix warrants that this product will be free from defects in materials and workmanship for a period of three (3) years from the date of shipment. If any such product proves defective during this warranty period, Tektronix, at its option, either will repair the defective product without charge for parts and labor, or will provide a replacement in exchange for the defective product.
Page 8: Table Of Contents
Table of Contents Important safety information ......... . . General safety summary .
Page 9: Important Safety Information
Important safety information Important safety information This manual contains information and warnings that must be followed by the user for safe operation and to keep the product in a safe condition. General safety summary Use the product only as speciﬁed. Review the following safety precautions to avoid injury and prevent damage to this product or any products connected to it.
Page 10 Important safety information that the product is properly grounded. Do not disable the power cord grounding connection. Power disconnect. The power cord disconnects the product from the power source. See instructions for the location. Do not position the equipment so that it is difﬁcult to operate the power cord; it must remain accessible to the user at all times to allow for quick disconnection if needed.
Page 11: Terms In This Manual
Important safety information Do not operate in an explosive atmosphere. Keep product surfaces clean and dry. Remove the input signals before you clean the product. Provide proper ventilation. Refer to the installation instructions in the manual for details on installing the product so it has proper ventilation. Provide a safe working environment.
Page 12 Important safety information RSA600A Series Installation and Safety Instructions...
Page 13 Important safety information RSA600A Series Installation and Safety Instructions...
Page 14: Preface
Preface The RSA603A and RSA607A are bench top Real-Time Spectrum Analyzers that contains an RF acquisition system inside a small module. The user interface and display are provided by the SignalVu-PC software once it is installed on a user-provided PC (host PC). The host PC provides all control and data signals to the instrument over the USB 3.0 cable.
Page 15: Key Features
Preface Key Features 9 kHz – 3 GHz frequency range (RSA603A) 9 kHz – 7.5 GHz frequency range (RSA607A) 40 MHz real time bandwidth External reference and trigger/sync inputs Tracking generator option Mapping, GPS, signal database and interference hunting USB 3.0 control/data interface to PC Publicly-accessible software Application Programming Interface (API) Standard accessories...
Page 16: Product Options
Preface Opt. A2 – United Kingdom power Opt. A3 – Australia power Opt. A5 – Switzerland power Opt. A6 – Japan power Opt. A10 – China power Opt. A11 – India power Opt. A12 – Brazil power Opt. A99 – No power cord When ordering the A99 option, it is the responsibility of the end user to be sure that a certiﬁed power cord, for the country or region in which it is installed, is used with this instrument.
Page 17: Optional Accessories
Preface Optional accessories Optional accessories such as cables, adapters, calibration kits, attenuators, and antennas are available from Tektronix. Visit www.tek.com to view optional accessories. Service options The instrument includes a 3 year warranty. Read the warranty statement at the front of this manual for details. Option number Description Purchased with instrument...
Page 18: Documentation
Preface Documentation Following is a list of documentation available for this product and shows where you can ﬁnd it: in a printed manual, on the product ﬂash drive, or on the Tektronix Web site at www.tek.com. Item Purpose Location Installation and Safety Provides software and hardware Printed manual Instructions (this manual)
Page 19 Preface RSA600A Series Installation and Safety Instructions...
Page 20: Installation
Installation This section provides instructions on how to install the software and hardware, and how to perform a functional check to verify system operation. Refer to the SignalVu-PC application Help for more detailed operation and application information. Unpack the instrument and check that you have received all of the standard accessories for your instrument conﬁguration.
Page 21: Prepare The Pc
Installation Environmental requirements The environmental requirements for your instrument are listed in the following table. For instrument accuracy, ensure that the instrument has warmed up for 20 minutes and meets the environmental requirements listed in the following table. Requirement Description Temperature (operating) –10 °C to 55 °C (+14 °F to +131 °F) Humidity (operating)
Page 22 Installation Load the SignalVu-PC and TekVISA software This software must be installed to control the instrument through the SignalVu-PC software. Insert the ﬂash drive included with the analyzer into the host PC. Windows File Explorer should open automatically. If it does not, open it manually and browse to the ﬂash drive folder.
Page 23: Functional Check
Installation Functional check Ensure AC power is supplied from an external power supply using the power cord and adapter that shipped with the instrument. Connect the USB cable included with the analyzer between the analyzer and the host PC. NOTE. The instrument automatically powers on and the front-panel power LED lights when a USB connection is detected.
Page 24 Installation SignalVu-PC automatically establishes a connection to the instrument via the USB cable. A Connect Status dialog appears in the SignalVu-PC status bar to conﬁrm that the instrument is connected. NOTE. You can quickly verify connection status by looking at the Connection indicator in the SignalVu-PC status bar.
Page 25 Installation Automatic connection fails. In some instances, the automatic connection may fail. Typically, the cause is that SignalVu-PC is already connected to an instrument (either USB or network). In this situation, use the following steps to make a connection using the SignalVu-PC application.
Page 26: Front Panel
Installation Front panel The following ﬁgure shows the connections and indicators on the front panel of the instrument. Figure 1: Front panel 1 – USB 3.0 Type A connector Use the USB 3.0 Type A to USB 3.0 Type A cable provided with the instrument to connect the analyzer to the host PC via the USB 3.0 connector.
Page 27 Installation 5 – Ref In (external reference) connector Use this BNC female connector to connect an external reference signal to the analyzer. Refer to the instrument speciﬁcations for a list of supported reference frequencies. RSA600A Series Installation and Safety Instructions...
Page 28: Rear Panel
Installation 6 – Trigger/Sync connector Use this BNC female connector to connect an external trigger source to the analyzer. The input accepts TTL-level signals (0 – 5.0 V), and can be rising- or falling-edge triggered. 7 – RF input connector This N-type female connector receives the RF signal input, via cable or antenna.
Page 29 Installation RSA600A Series Installation and Safety Instructions...
Page 30: Compliance Information
Compliance information This section lists the EMC (electromagnetic compliance), safety, and environmental standards with which the instrument complies. EMC compliance EC Declaration of Conformity – EMC Meets intent of Directive 2004/108/EC for Electromagnetic Compatibility. Compliance was demonstrated to the following speciﬁcations as listed in the Ofﬁcial Journal of the European Communities: EN 61326-1:2006, EN 61326-2-1:2006.
Page 31 Compliance information European contact. Mfr. Compliance Contact Tektronix, Inc. PO Box 500, MS 19-045 Beaverton, OR 97077 USA www.tek.com This product is intended for use in nonresidential areas only. Use in residential areas may cause electromagnetic interference. Emissions which exceed the levels required by this standard may occur when this equipment is connected to a test object.
Page 32: Safety Compliance
Compliance information Safety compliance This section lists the safety standards with which the product complies and other safety compliance information. EU declaration of conformity – low voltage Compliance was demonstrated to the following speciﬁcation as listed in the Ofﬁcial Journal of the European Union: Low Voltage Directive 2006/95/EC.
Page 33 Compliance information Pollution Degree 1. No pollution or only dry, nonconductive pollution occurs. Products in this category are generally encapsulated, hermetically sealed, or located in clean rooms. Pollution Degree 2. Normally only dry, nonconductive pollution occurs. Occasionally a temporary conductivity that is caused by condensation must be expected.
Page 34 Compliance information Pollution Degree 3. Conductive pollution, or dry, nonconductive pollution that becomes conductive due to condensation. These are sheltered locations where neither temperature nor humidity is controlled. The area is protected from direct sunshine, rain, or direct wind. Pollution Degree 4. Pollution that generates persistent conductivity through conductive dust, rain, or snow.
Page 35: Environmental Considerations
Compliance information Environmental considerations This section provides information about the environmental impact of the product. Product end-of-life handling Observe the following guidelines when recycling an instrument or component: Equipment recycling. Production of this equipment required the extraction and use of natural resources. The equipment may contain substances that could be harmful to the environment or human health if improperly handled at the product’s end of life.
