Summary of Contents for Aqua Lights AL250MH

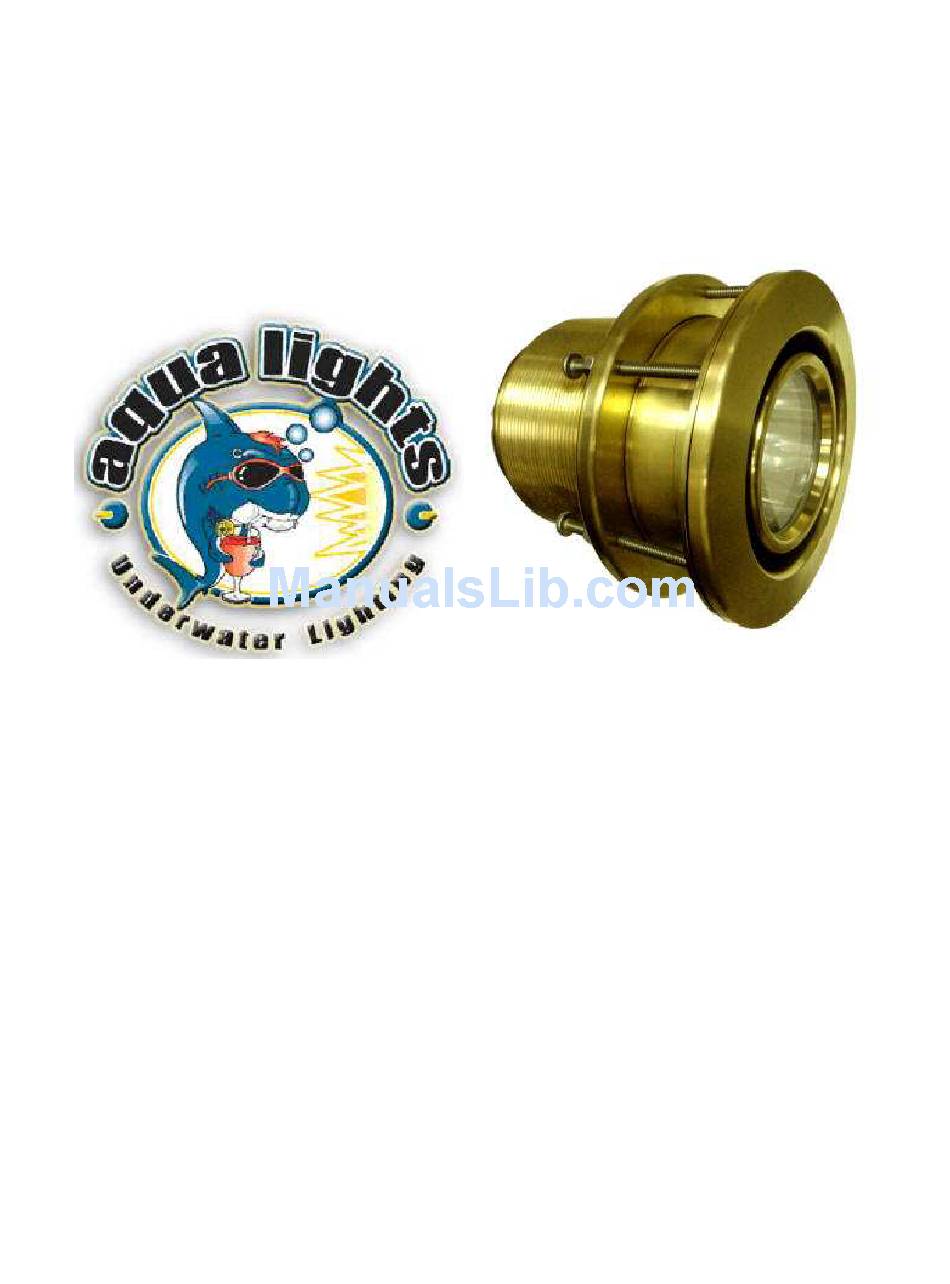

- Page 1 AL250MH Underwater Hull Light Installation and Maintenance Instructions Manual €...
- Page 2 € € € € This underwater light has been carefully designed to provide a versatile product of the highest quality, suitable for a wide range of underwater applications such as marine, industrial and domestic. WARNING! Sections in this manual identify safe practice. It is of the utmost importance that this manual is carefully read and understood.
-
Page 3: Specifications Electrical
• € Lens: 1/2" BoroTrans • € €Seals and Gaskets: High temperature (200° C) silicone rubber • €€ Lamp Cable: High Temperature (200° C) silicone rubber insulated • € €Fixture Weight: 27 Lbs • €€ Cutout Size: 6” (110 mm) •... -
Page 4: Other Maintenance
• €€ Should there be a malfunction for any reason, please consult your nearest agent or Aqua Lights directly. The housing should not be opened under any circumstances unless by a suitably qualified and authorized technician. -
Page 5: Limited Warranty
Limited Warranty Aqua Lights warrants these fixtures to be free of defects in parts and workmanship for 1-year from the date of shipment. Bronze has lifetime warranty for barrel. This warranty does not apply to defects resulting from action of the user such as misuse, improper wiring, operation outside of specification, improper maintenance or repair or unauthorized modification. - Page 6 € The following tools and supplies are required for a proper install: • Variable speed drill • Hole saw -€ 1.25-inch hole for the AL35 watt mini-light -€ 2.5-inch hole for our AL75 lower series and the Aqua Cam € 4.25-inch hole for our AL100 and higher series €•...
- Page 7 3.€ Apply epoxy to dry: • Clean core material, leaving no visible core. • Fill it to an even level amount. • Sand clean and inspect for bubbles or pin holes. 4. There is an O-ring supplied with the light to be used when installing on smooth level surfaces of fiberglass or metal.
- Page 8 The adhesive should be ejected from around the bezel of the light. • If it is tightened this way you know you have a proper seal. 5. Insert light with a twisting motion. • If installing the Aqua Cam, be sure to return to the top mark so that you will have a proper display on your TV monitor.
- Page 9 7. Tighten the leveling bolts. • Tighten the leveling bolts so that the fixture is locked into position. Torque bolts to 30 ft lbs. 8. Tighten SS locking bolts lock nuts. 9. Attach light source to base.
- Page 10 10. Insert light source, retaining spring into fixture. 11. Add light source backing.
- Page 11 12. Tighten water tight cable gland with 7/8" wrench hand tight. 13. Run cabling to power source. • Run cabling to power source for halogen lights they will require seven amps for each light AL50 and AL75. • Then attach red wire to positive and black to negative.
- Page 14 785 Branch Drive€ Alpharetta, GA 30004€ USA (866) 924-2782 • sales@aqualights.org...
