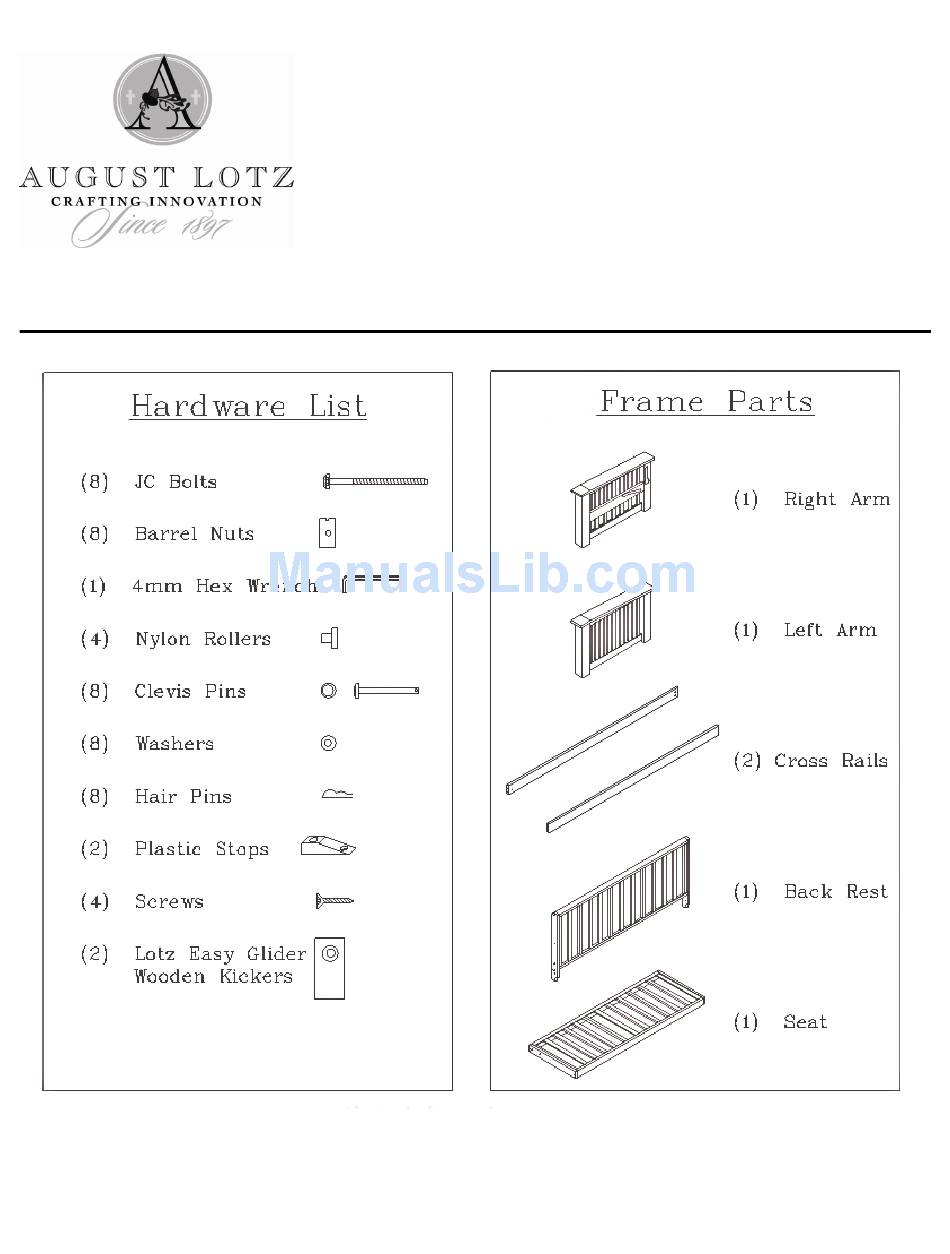

Assembly
Instructions
Tel: (800)826-7326
Fax: (715) 597-6625

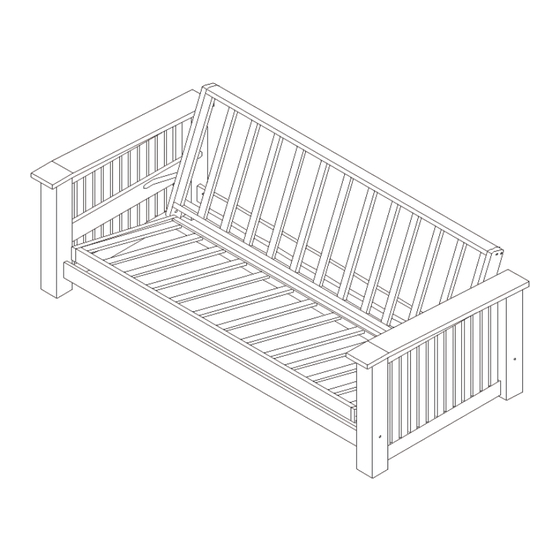

Frame Models
www.augustlotz.com
alotz@augustlotz.com
Lotz (10000), Madison (2644),
51149 Whitetail Rd.
Vancouver (2710), Boston (2715),
Osseo, WI 54758
San Juan (2717), Marlowe (2719),
Arlington (2722), Monticello (2730),
Avalon (2750) & Tucson (2770)
TOOLS NEEDED: Slotted Screwdriver & Phillips Screwdriver
1
Advertisement
Table of Contents
Summary of Contents for August Lotz Lotz 10000
- Page 1 Assembly Instructions Tel: (800)826-7326 Fax: (715) 597-6625 Frame Models www.augustlotz.com alotz@augustlotz.com Lotz (10000), Madison (2644), 51149 Whitetail Rd. Vancouver (2710), Boston (2715), Osseo, WI 54758 San Juan (2717), Marlowe (2719), Arlington (2722), Monticello (2730), Avalon (2750) & Tucson (2770) TOOLS NEEDED: Slotted Screwdriver & Phillips Screwdriver...
- Page 2 1) Before beginning the actual assembly of your frame, make sure that all of the parts described on the front page are included in your frame’s box. 2) Locate the backrest (the backrest has a rounded top rail). Locate the seat. With the slats in seat and backrest facing downward, slide the back (holes are nearer the back) of seat between legs of backrest (Figure 1).
- Page 3 4) Locate backrest. Place clevis pin through narrow end of a nylon roller and then through one of the two remaining holes in the side of backrest. Place a flat washer on the end of the clevis pin. Insert hair pin through clevis pin hole. Repeat this step for remaining rollers (Figure 3).
- Page 4 6) Locate arm assemblies and one of the cross rails. Place a barrel nut in each hole in side of cross rail. Make sure that the threaded holes in barrel nuts line up with holes in ends of rail and that the slotted end of barrel nut is exposed (Figure 5). Also, make sure that the rail marked “Front”...
- Page 5 10) With the help of a friend, pick up backrest/seat assembly and place into arm/cross rail assembly completed in step #8. The two nylon rollers on backrest will slide into groove on inside of each arm (Figure 7). Pull backs of arms together to hold seat in place. 11) Tighten JC bolts in front leg.
- Page 6 To Convert Into A Sofa 1) While standing in front of the sofa-bed convertible, lift the seat up and toward the backrest until the wooden kickers slide into notches in the backrest’s legs (Figure 3). 2) Pull the seat forward about an inch to release it from the locked position (Figure 3). 3) Push down on front end of seat.
- Page 7 WARRANTY NOTICE FAILURE TO FOLLOW FRONT LOAD CONVERSION INSTRUCTIONS WILL CANCEL WARRANTY...
