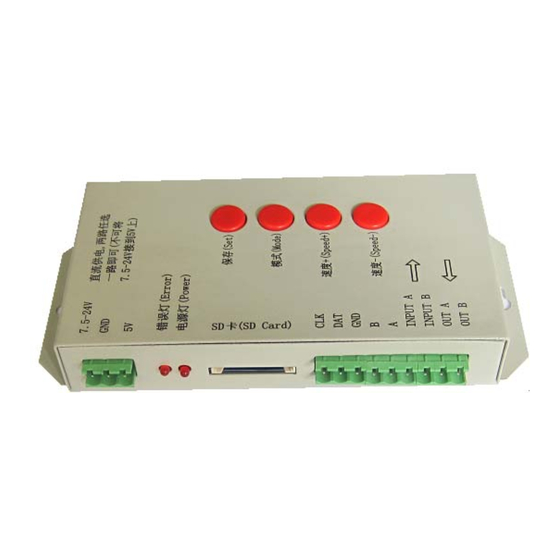

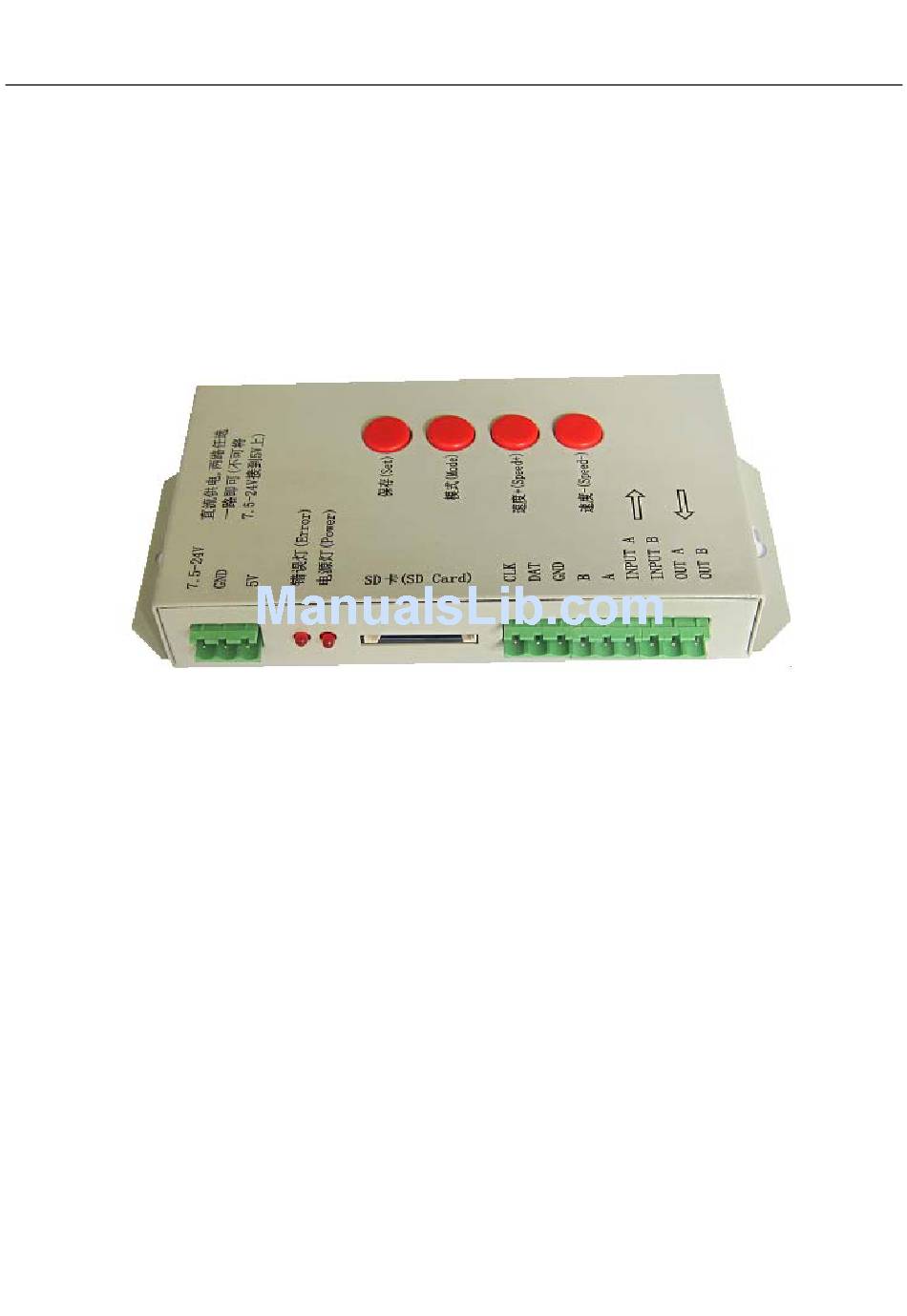

2012 T-1000S Operating manual
1、T-1000S System features
1、32—256 Gray level，Support software Gamma correction。
2、Support the rules and special-shaped handle.
3、Single-port output，can support 2048 pixels。
4、Off-line(SD Card) control, play back content stored in the SD card.
5、T-1000S store a maximum of 16 programs，copy multiple files to the SD card in order,
after formatting the SD card as "FAT" format.
6、The program must be named in orders . just as ：00_1.led, 01_1.led, 02_1.led.
7、Compatible with single line or double line chips.
NOTE：1. When T-1000S controller control less than 512 lamps the frame rate can reach 30fps. When T-1000S
control more than 512 lamps and less than 2048 lamps the frame rate will slow down automatically.
2. T-1000S must use the new software LedEdit 2012.
2、Support chips：
Advertisement
Summary of Contents for Zowaysoon T-1000S
- Page 1 7、Compatible with single line or double line chips. NOTE：1. When T-1000S controller control less than 512 lamps the frame rate can reach 30fps. When T-1000S control more than 512 lamps and less than 2048 lamps the frame rate will slow down automatically.
- Page 2 Software code& Lamps/(MA Chip type Note Controller type LPD6803,D705,1101,6909, T-1000-6803 2048 pixels 6912 LPD8806,LPD8809 T-1000-8806 2048 pixels TM1804 TM1803,TM1804,TM1809,T TM1809 T-1000-TM 2048 pixels M1812 divided into high and low TM1903， TM1904， TM1909， T-1000-TM19 2048 pixels TM1912 UCS6909 ， UCS6912 ， T-1000-UCS-32 2048 pixels UCS7009，UCS5903...
- Page 3 ： 4、Definition of printing Buttons Meaning 保存 SET Save Settings （ to save current settings file and the playback speed ） 。 模式 MODE Change programs 速度 SPEED+ Speed up Press speed+ and speed- at the same time the program will play circularly. 速度...
- Page 4 Multiple T-1000S controllers can be cascaded together and work synchronously. T-1000S one TTL(SPI) signal and one RS485 signal port output，can control 2048 pixels/lamps； When the chip for LED is single line chip just with data, then just need to be connected with DAT and GND of the controller.
- Page 5 “01_1.led” --------- NO.2 program for No.1 controller “02_1.led” --------- NO.3 program for No.1 controller …… “15_1.led” --------- NO.16 program for No.1 controller The name for NO.2 controller： “00_2.led” --------- NO.1 program for No.2 controller “01_2.led” --------- NO.2 program for No.2 controller “02_2.led”...
- Page 6 7、 Trouble shooting Question 1：After power, the T-1000S ERROR indicator has been flashing without display output answer：The ERROR indicator has been flashing means the controller did not read the card correctly, possible problems: ①SD card is empty, with no effect file.
- Page 7 ②The effect file in the SD card and the controller model are not match, please choose correct controller model in LedEdit and then re-create the effect file *led. ③SD card did not format to FAT before copy effect files. ④Please check the supply power voltage, the controller can be individually powered to exclude power reasons ⑤Changing the SD card and then test to exclude the possibility of a bad SD card Question 2: The controller is powered on, the indicator is normal, but the lamps have no effect change...
